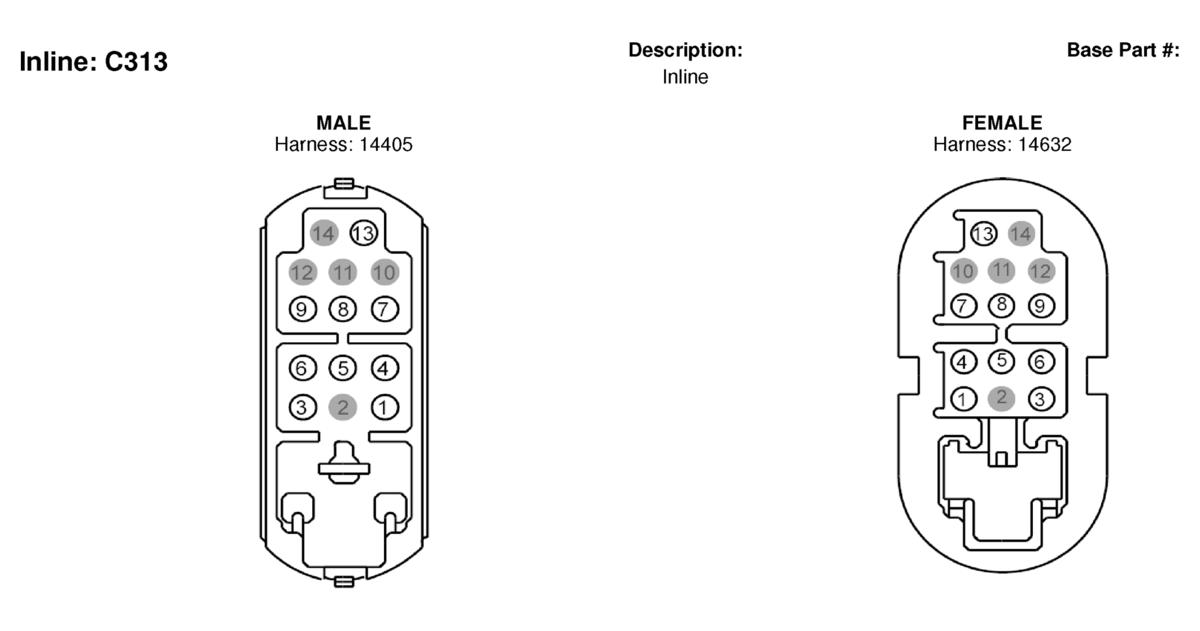

Inline Connector End View (C313)
C313 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | 117 (PK-BK) | 16 | |
| 2 | * | * | |
| 3 | 170 (RD-LB) | 14 | |
| 4 | 320 (RD-BK) | 14 | Male |
| 4 | 316 (YE-LB) | 14 | Female |
| 5 | 319 (YE-BK) | 14 | Male |
| 5 | 317 (GY-OG) | 14 | Female |
| 6 | 118 (PK-OG) | 16 | |
| 7 | 801 (TN-YE) | 20 | Male |
| 7 | 802 (OG-RD) | 20 | Female |
| 8 | 1742 (VT-LG) | 20 | Male |
| 8 | 760 (PK-LB) | 20 | Female |
| 9 | 800 (GY-LB) | 20 | Male |
| 9 | 803 (BN-PK) | 20 | Female |
| 10 | * | * | |
| 11 | * | * | |
| 12 | * | * | |
| 13 | 570 (BK-WH) | 20 | |
| 14 | * | * |
