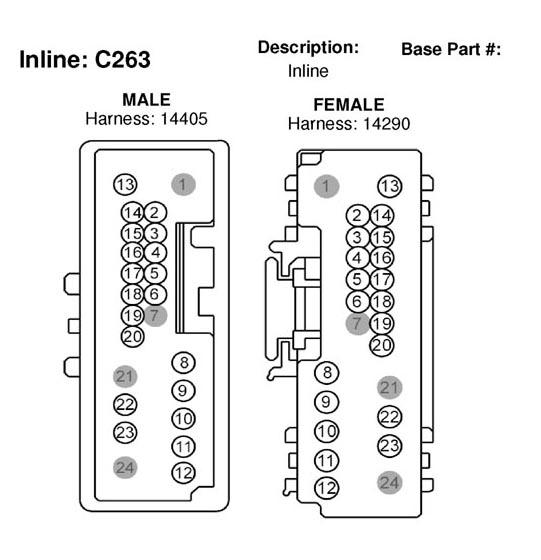

Inline Connector End View (C263)
C263 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | * | * | 3.0L |
| 1 | 306 (TN-LB) | 20 | Early Prod - 2.3L |
| 2 | 926 (LB-OG) | 20 | |
| 3 | 519 (LG-BK) | 20 | |
| 4 | 57 (BK) | 20 | |
| 5 | 704 (DG-LG) | 20 | |
| 6 | 1093 (TN-RD) | 20 | |
| 7 | * | * | 3.0L |
| 7 | 199 (LB-YE) | 20 | Early Prod - 2.3L |
| 8 | 406 (BR-WH) | 18 | |
| 9 | 511 (LG) | 18 | |
| 10 | 1153 (RD-BK) | 16 | |
| 11 | 618 (VT-LG) | 20 | |
| 12 | 617 (PK-OG) | 20 | |
| 13 | 928 (LB-RD) | 14 | |
| 14 | 518 (LG-RD) | 20 | |
| 15 | 523 (RD-PK) | 20 | |
| 16 | 524 (PK-BK) | 20 | |
| 17 | 359 (GY-RD) | 20 | Early Prod - 2.3L |
| 18 | 351 (BN-WH) | 20 | |
| 19 | 791 (RD-PK) | 20 | |
| 20 | 810 (RD-LG) | 20 | Early production |
| 20 | 248 (TN-OG) | 20 | |
| 21 | * | * | |
| 22 | 238 (DG-YE) | 18 | |
| 23 | 91 (VT-WH) | 20 | |
| 24 | * | * |
