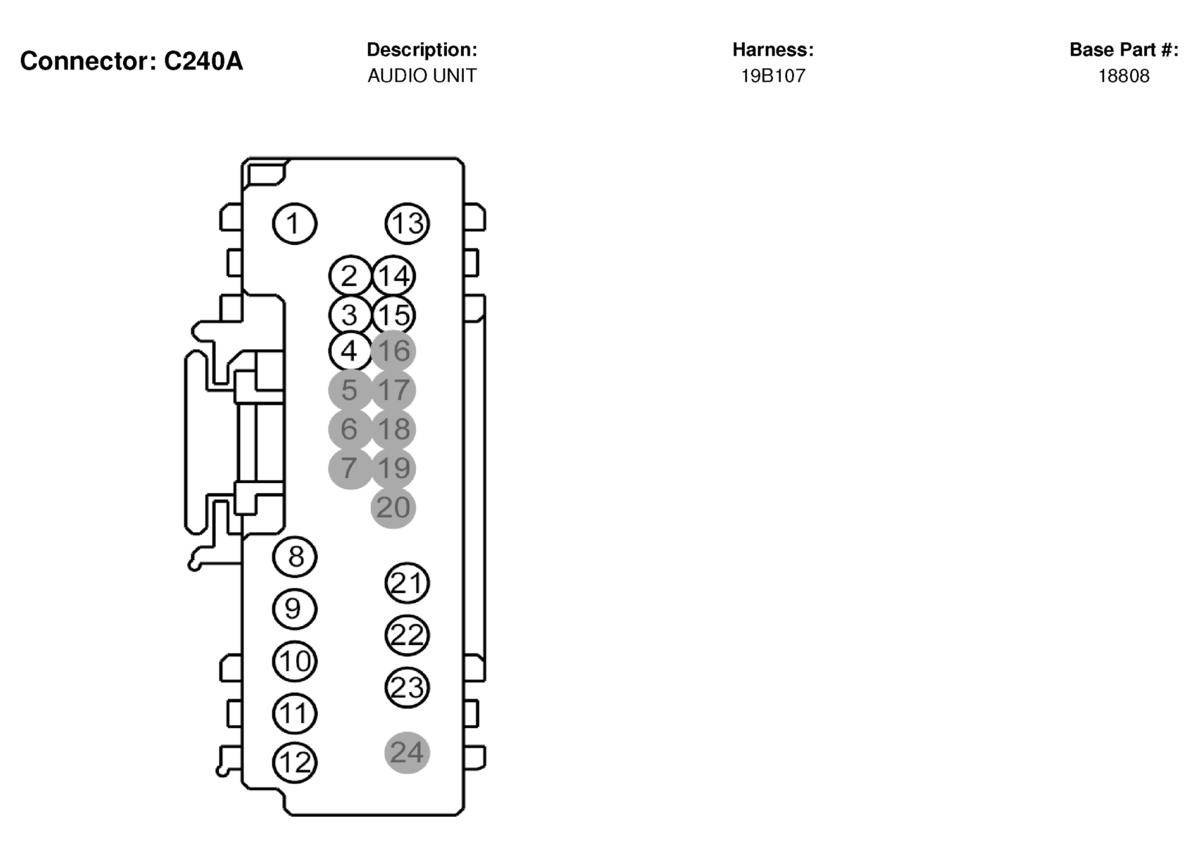

Audio Unit Connector End View (C240A)
C240A CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 956 (OG-LG) | 16 | Voltage supplied at all times (overload protected) | |
| 2 | 137 (YE-BK) | 20 | Accessory delay relay output | |
| 3 | 19 (LB-RD) | 22 | Instrument illumination feed | |
| 4 | 57 (BK) | 22 | Ground | |
| 5 | * | * | not used | |
| 6 | * | * | not used | |
| 7 | * | * | not used | |
| 8 | 804 (OG-LG) | 20 | Tweeter, left front + | |
| 9 | 801 (TN-YE) | 20 | Speaker, left rear + | |
| 10 | 802 (OG-RD) | 20 | Speaker, right rear + | |
| 11 | 805 (WH-LG) | 20 | Tweeter, right front + | |
| 12 | 811 (DG-OG) | 20 | Tweeter, right front - | |
| 13 | 694 (BK-LG) | 16 | Ground | |
| 14 | 679 (GY-BK) | 20 | Vehicle speed signal (+) | CD6 |
| 15 | 1786 (BR-PK) | 20 | Start signal | |
| 16 | * | * | not used | |
| 17 | * | * | not used | |
| 18 | * | * | not used | |
| 19 | * | * | not used | |
| 20 | * | * | not used | |
| 21 | 813 (LB-WH) | 20 | Tweeter, left front - | |
| 22 | 800 (GY-LB) | 20 | Speaker, left rear - | |
| 23 | 803 (BR-PK) | 20 | Speaker, right rear - | |
| 24 | * | * | not used |
