Removal and Installation

  1. Remove the audio unit. See AUDIO UNIT .
  2. Push outward on the rear window defrost switch to remove it from the instrument panel center finish panel.
    • Disconnect the electrical connector.

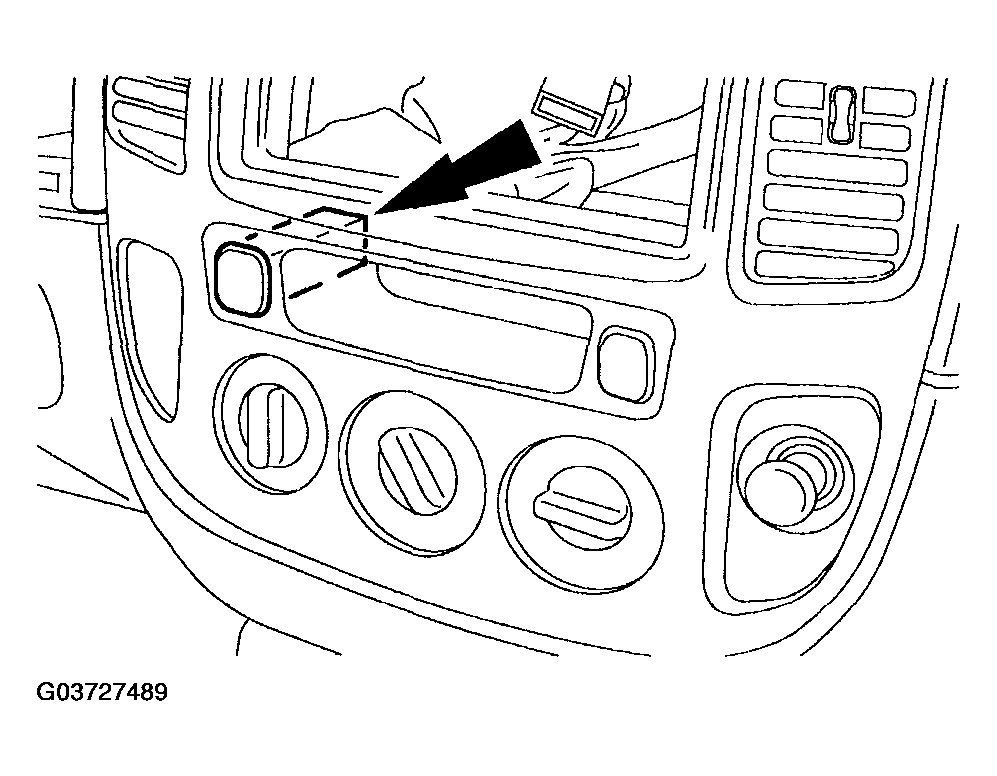

    Fig 1: Removing Rear Window Defrost Switch From Instrument Panel Center Finish Panel
    G03727489Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
