Removal and Installation

If installing a new liftgate window glass, remove the rear wiper motor. See REAR WINDOW WIPER MOTOR
Remove the two liftgate glass hinge nut access covers (one on each side.)

Fig 1: Removing Liftgate Glass Hinge Nut Access Covers
Courtesy of MAZDA MOTORS CORP.
Disconnect the rear window electrical harness connector.

Fig 2: Disconnecting Rear Window Electrical Harness Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the heated window grid wire electrical connector.

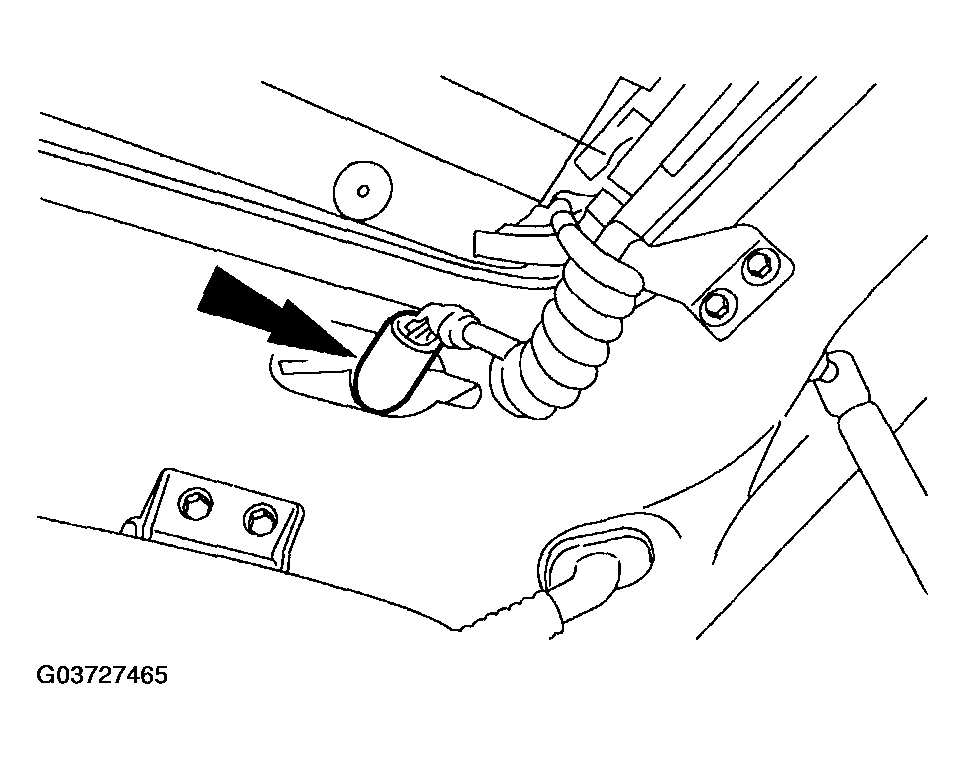

Fig 3: Disconnecting Heated Window Grid Wire Electrical Connector
Courtesy of MAZDA MOTORS CORP.
NOTE:
- An assistant may be needed to carry out this step.
Disconnect the two liftgate window glass cylinders.
1. Slide the spring retainer to the end of the socket.
2. Disconnect the socket from the ball stud and remove the liftgate window glass.
  NOTE:
  - Apply threadlock to bolts before installation.
Fig 4: Disconnecting Liftgate Window Glass Cylinders
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
