Speed Control Switch

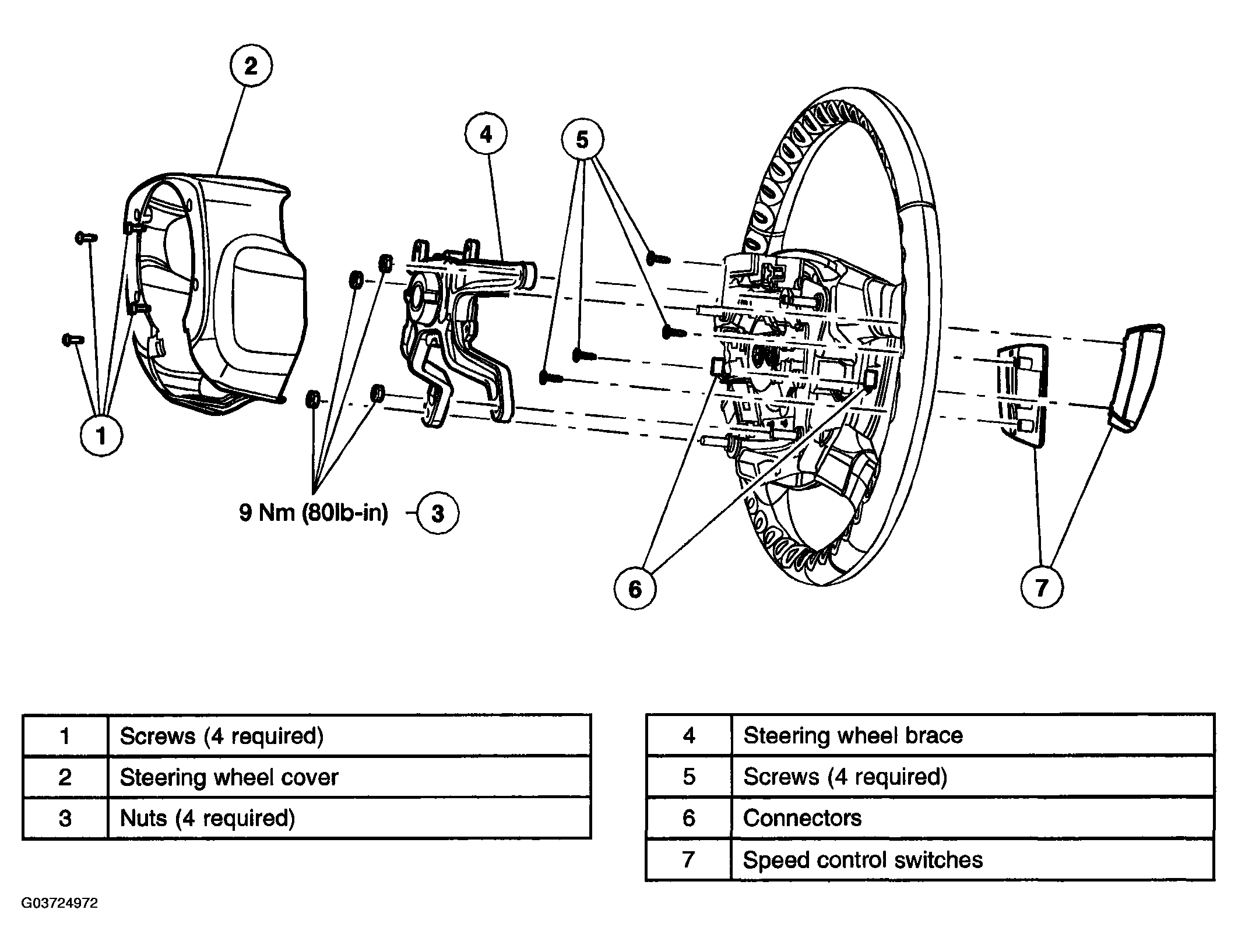

Fig 1: Removing/Installing Speed Control Switch & Torque Specifications

G03724972

Courtesy of MAZDA MOTORS CORP.

WARNING:

When carrying a live air bag, make sure the bag and trim cover are pointed away from your body. In the unlikely event of an accidental deployment, the bag will then deploy with minimal chance of injury. Failure to follow these instructions may result in personal injury.

Remove the air bag module. See DRIVER AIR BAG MODULE .
Disconnect the cruise control switches electrical connector.

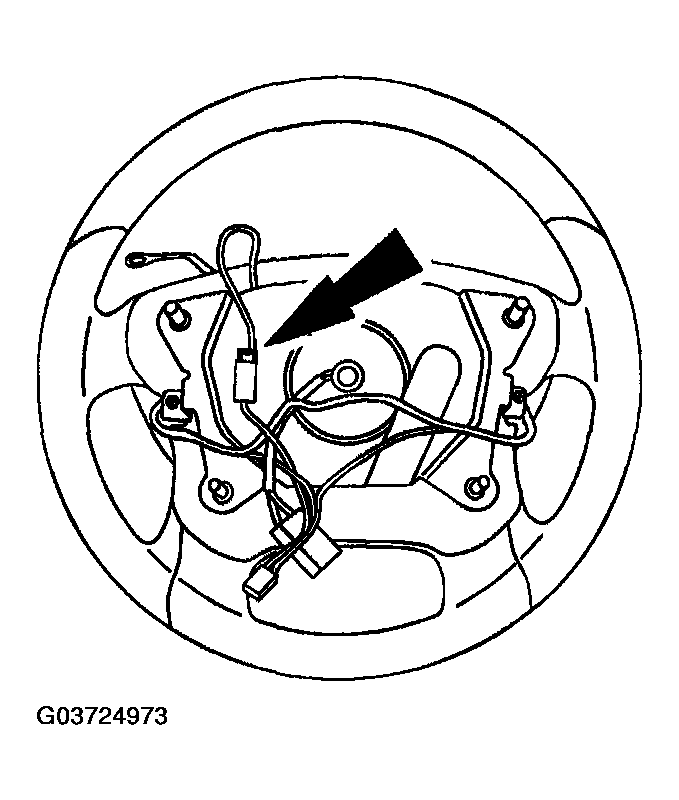

Fig 2: Disconnecting Cruise Control Switches Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the cruise control switches.
1. Remove the screws.
2. Remove the cruise control switches.

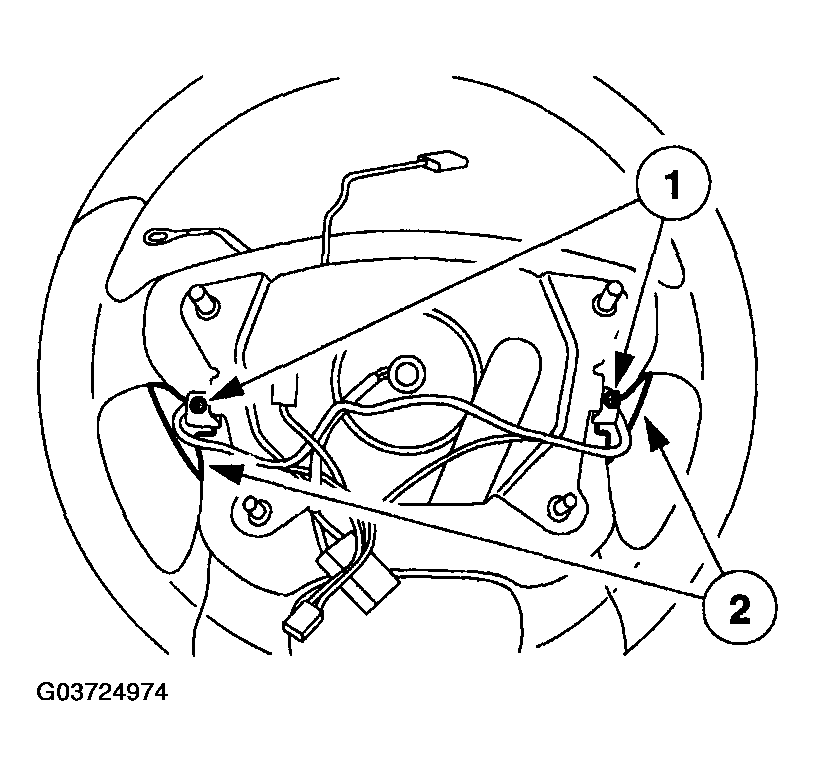

Fig 3: Removing Cruise Control Switches
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
