Transaxle Front Support Insulator

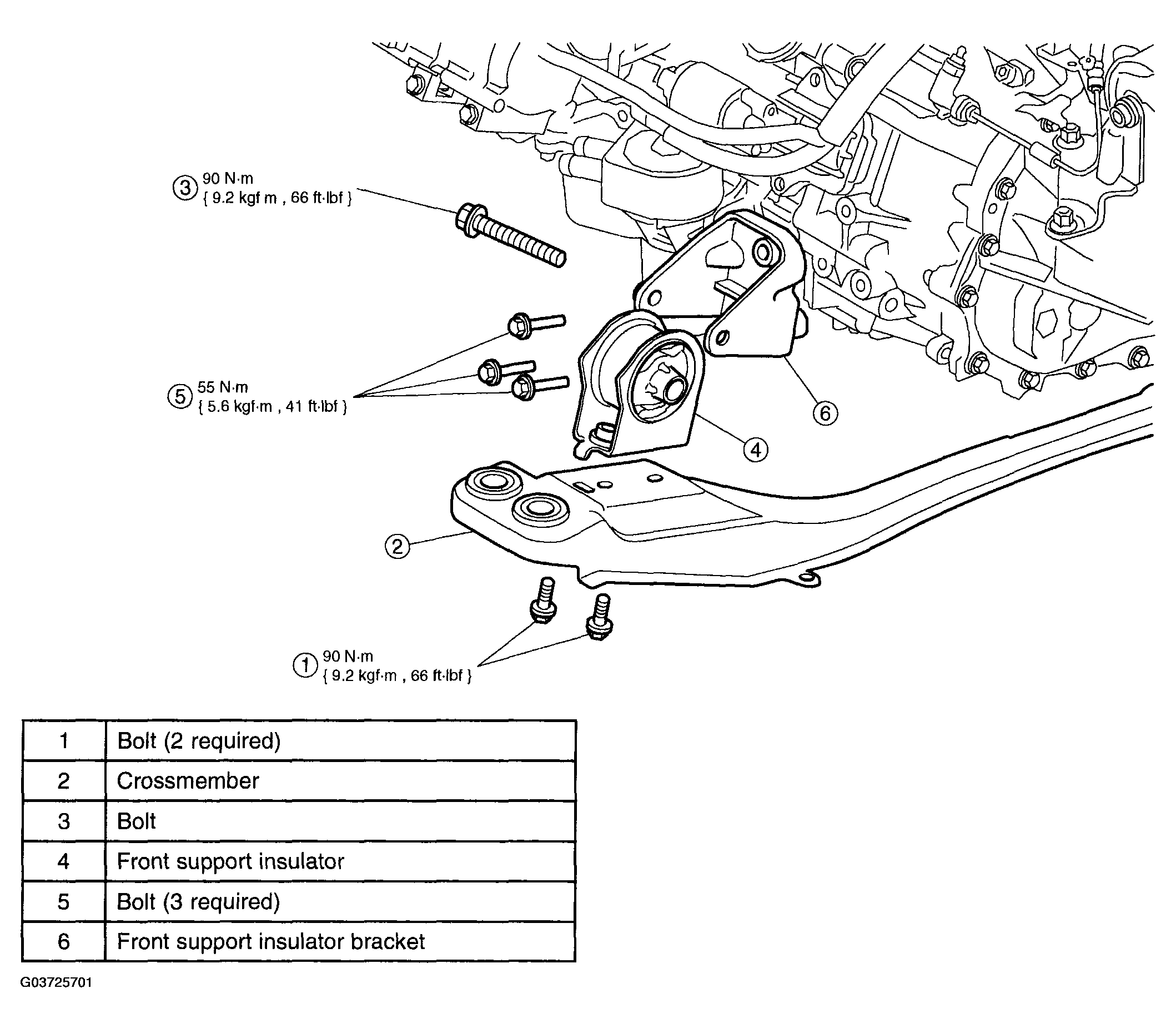

Fig 1: Removing/Installing Transaxle Front Support Insulator & Torque Specifications
G03725701Courtesy of MAZDA MOTORS CORP.
  1. Using the special tool, support the engine.
  2. Raise and support the vehicle on a hoist.
  3. Remove the front support insulator and cross member.
    1. Remove the front support insulator bolts.
    2. Remove the crossmember.
      1. Remove the splash shield screw.
      2. Remove the bolts and the nut.
      3. Remove the crossmember.

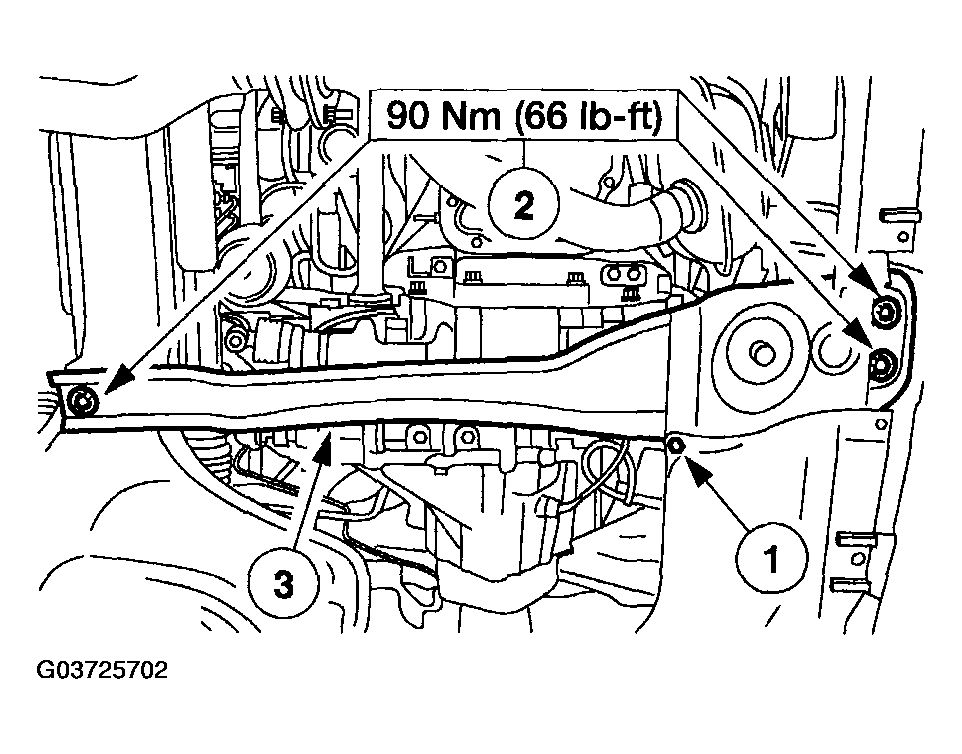

      Fig 2: Removing Crossmember & Torque Specifications
      G03725702Courtesy of MAZDA MOTORS CORP.
    3. Remove the insulator cross bolt.
    4. Remove the front support insulator.
    5. Remove the bracket bolts.
    6. Remove the bracket.
  4. To install, reverse the removal procedure.
