Manual Transaxle: Differential: Assembly

    CAUTION:
    • Be careful not to crush the bearing while pressing it onto the differential case.
    Fig 1: Installing Differential Side Bearing
    G03725656Courtesy of MAZDA MOTORS CORP.
  1. Install the differential side bearing.
  2. Install the VSS drive gear and the spacer.
    3. CAUTION:
    • Be careful not to crush the bearing while pressing it onto the differential case.
    Fig 2: Installing Differential Side Bearing
    G03725657Courtesy of MAZDA MOTORS CORP.
  3. Install the differential side bearing.
  4. Install and tighten the bolts in the sequence indicated.

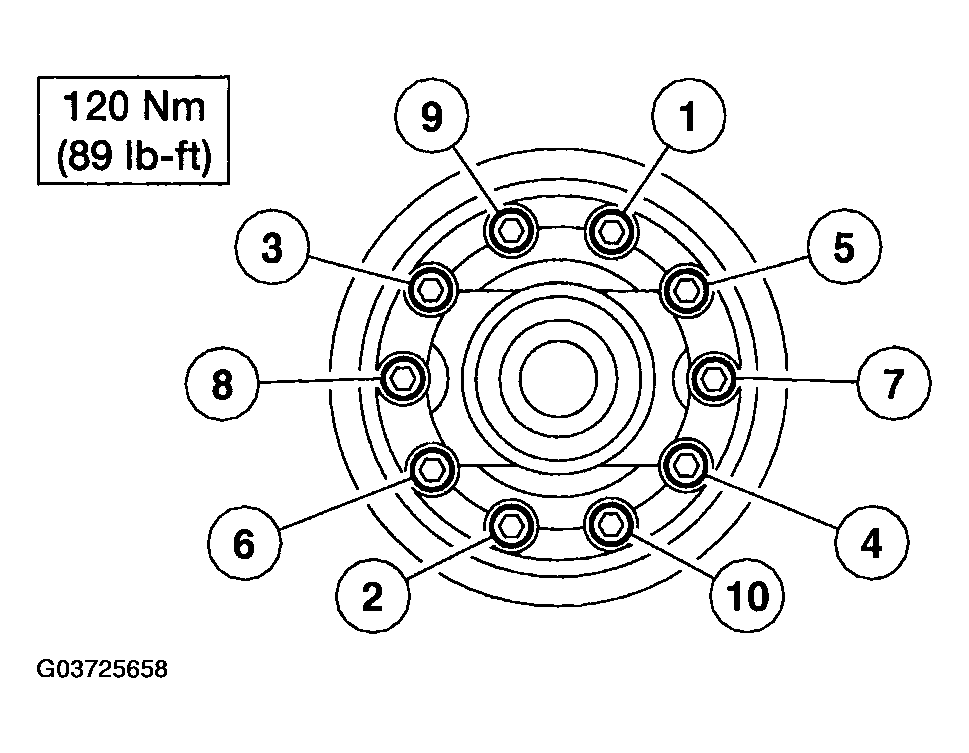

    Fig 3: Tightening Bolts In Sequence
    G03725658Courtesy of MAZDA MOTORS CORP.
