Steering Column: Installation

Fig 1: Loosely Installing Steering Column Support Nuts

Courtesy of MAZDA MOTORS CORP.

Install the steering column and loosely install the steering column support nuts. Install and tighten the nuts to specification.

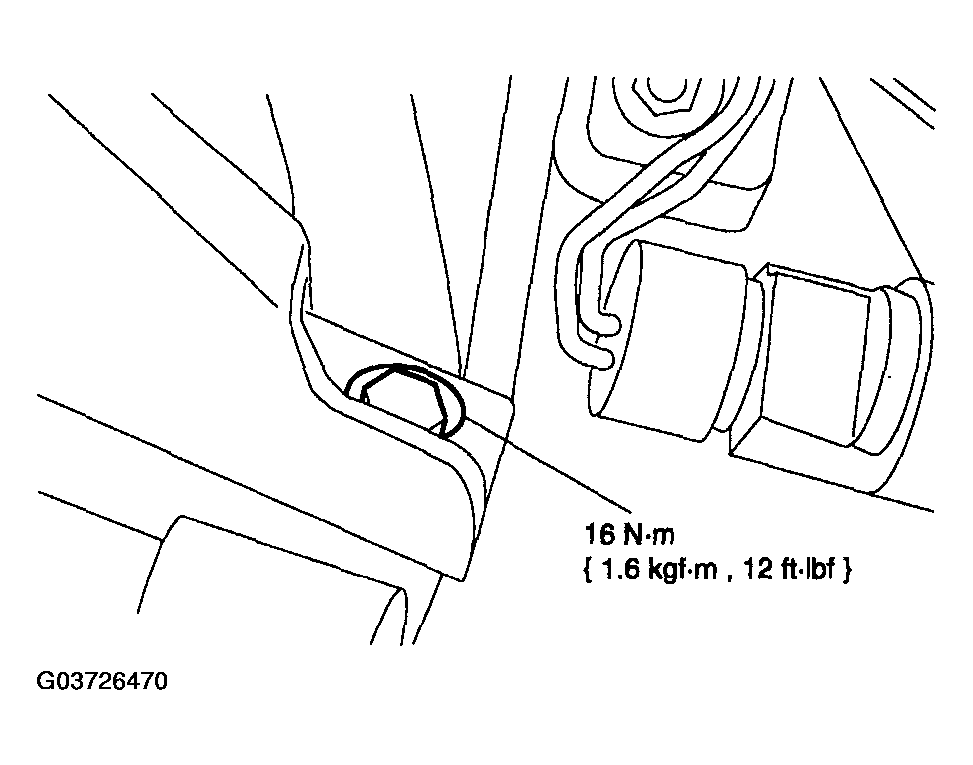

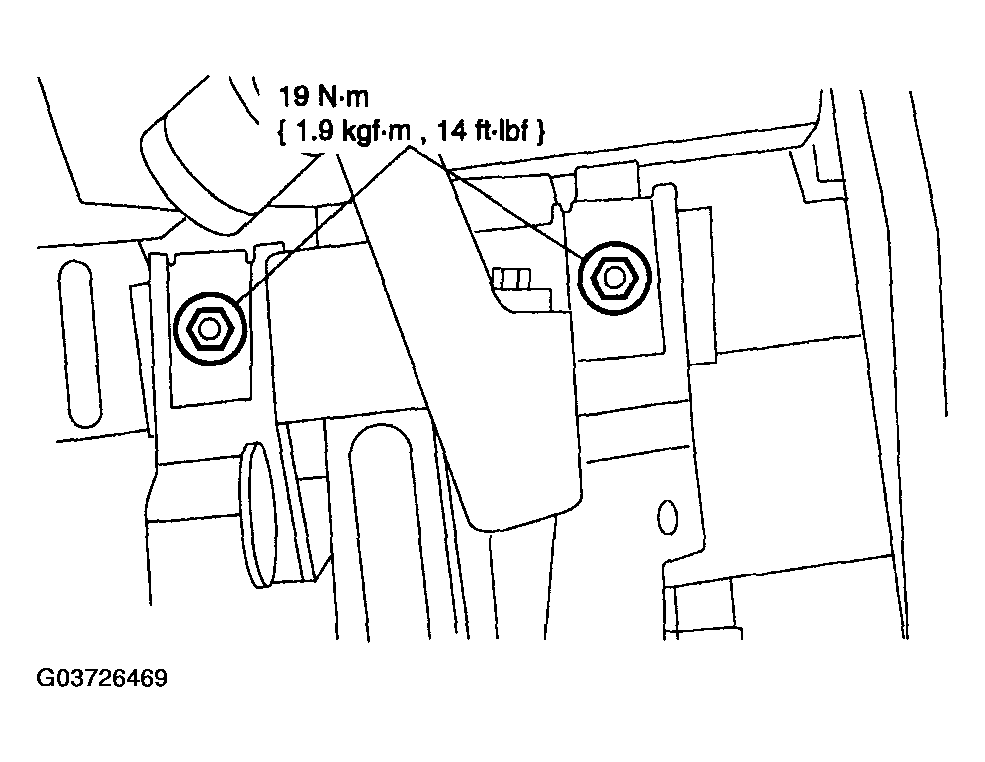

Fig 2: Tightening Steering Column Support Bolt

Courtesy of MAZDA MOTORS CORP.

Tighten the steering column support bolt.

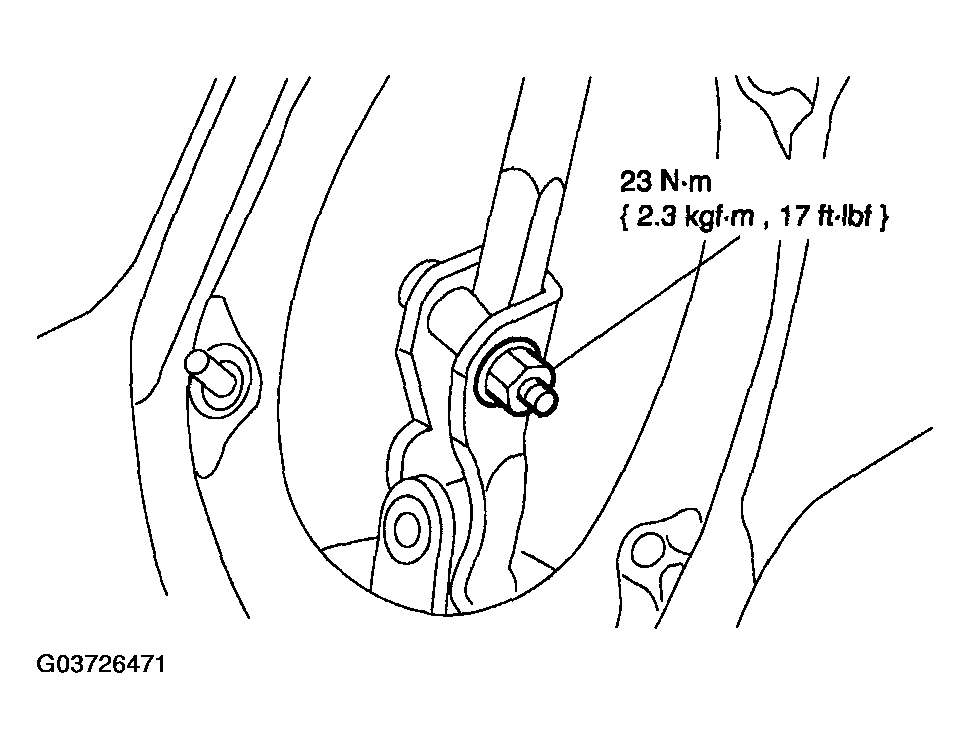

Fig 3: Installing Pinch Bolt And Nut

Courtesy of MAZDA MOTORS CORP.

Connect the steering column shaft to the flexible coupling and install a new the pinch bolt and nut.

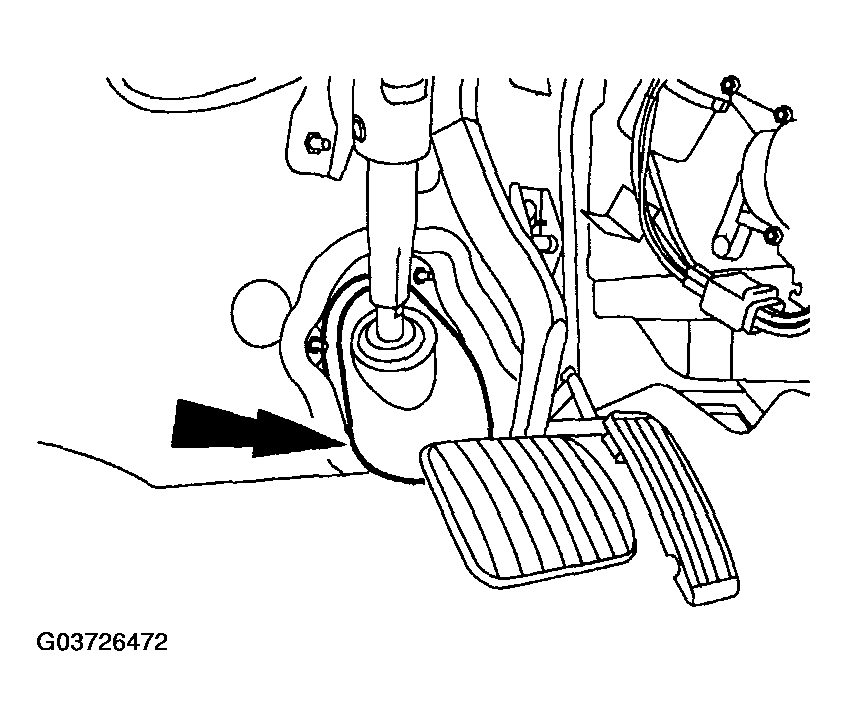

Fig 4: Positioning Boot

Courtesy of MAZDA MOTORS CORP.

Position the boot.

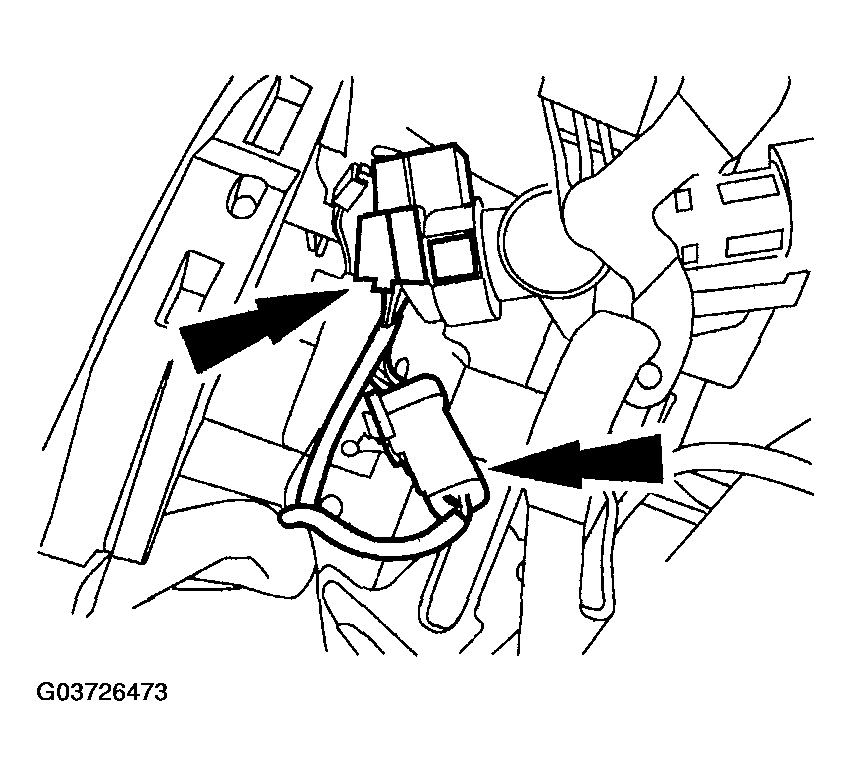

Fig 5: Connecting Electrical Connectors

Courtesy of MAZDA MOTORS CORP.

Connect the electrical connectors.

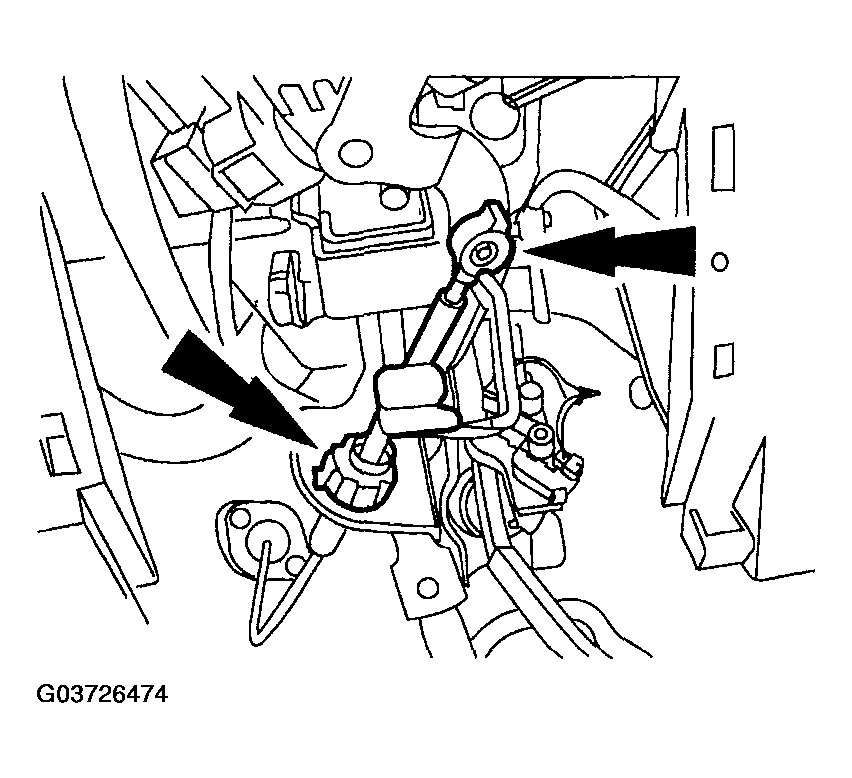

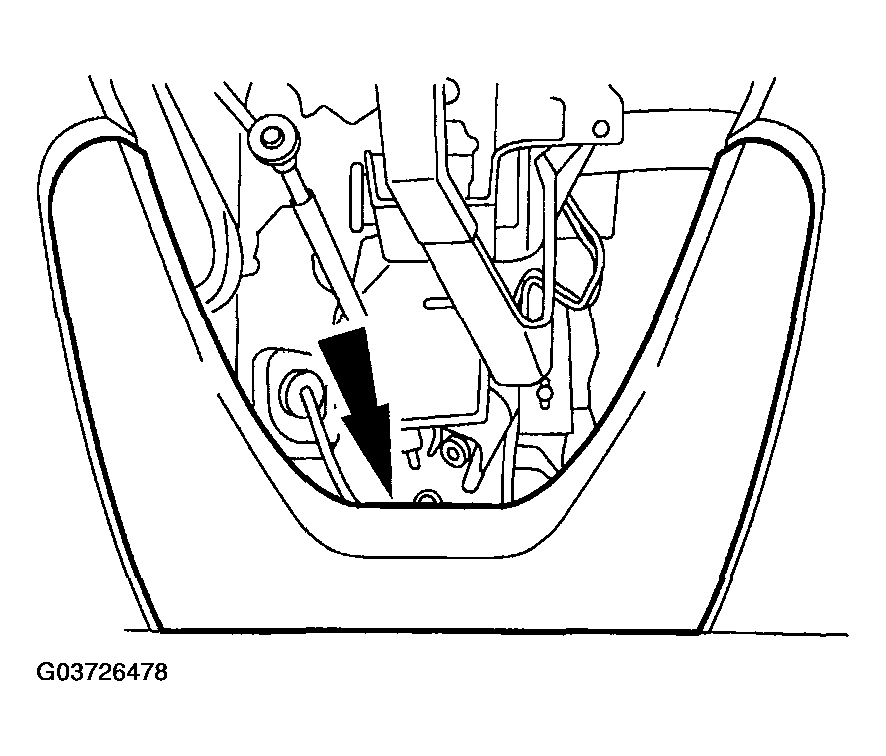

Fig 6: Connecting Selector Lever Shift Cable To Lever And Bracket

Courtesy of MAZDA MOTORS CORP.

If equipped, connect the selector lever shift cable to the lever and bracket.

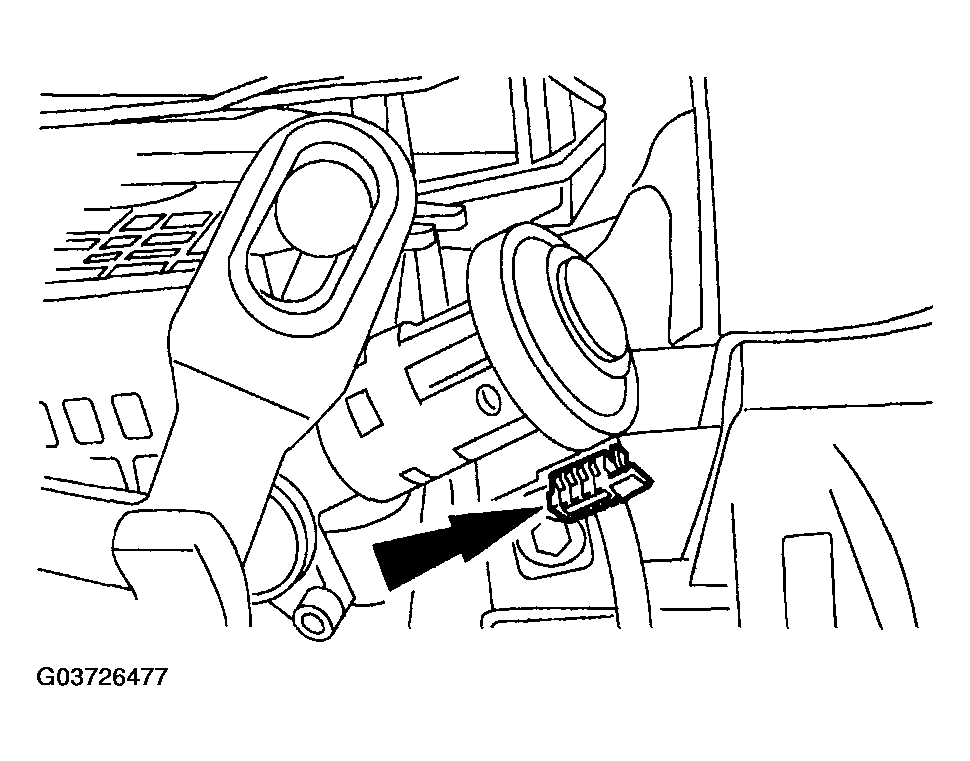

Fig 7: Connecting Multifunction Switch And Headlamp Switch Electrical Connector

Courtesy of MAZDA MOTORS CORP.

Connect the multifunction switch and headlamp switch electrical connector.

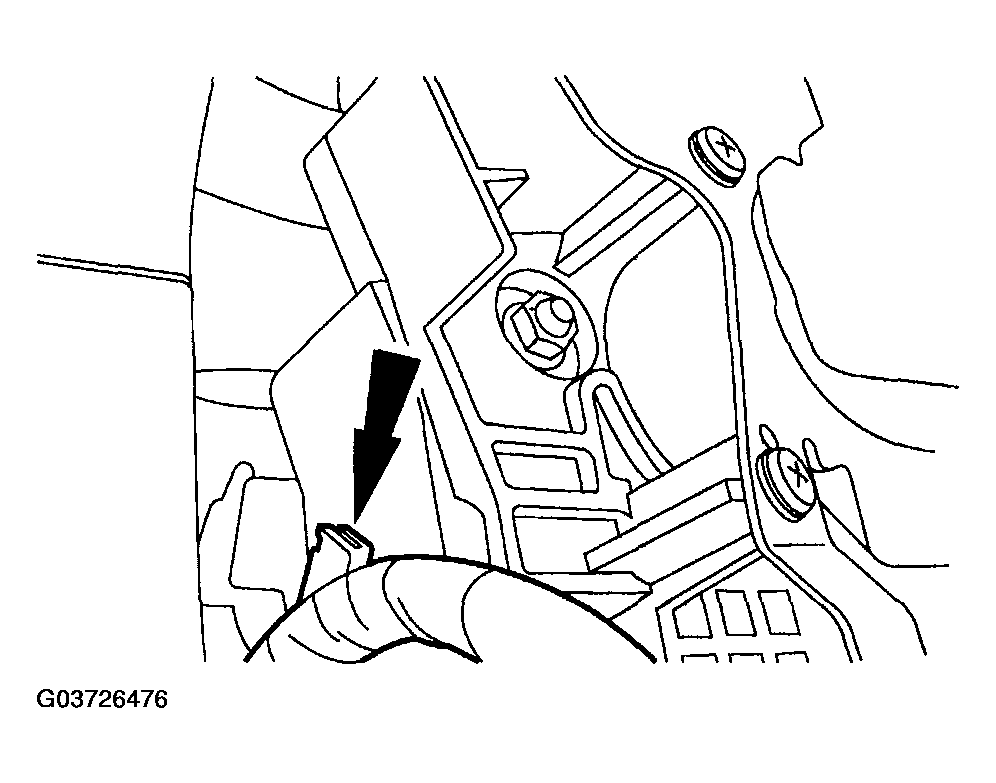

Fig 8: Securing Harness To Gearshift Housing

Courtesy of MAZDA MOTORS CORP.

Secure the harness to the gearshift housing.

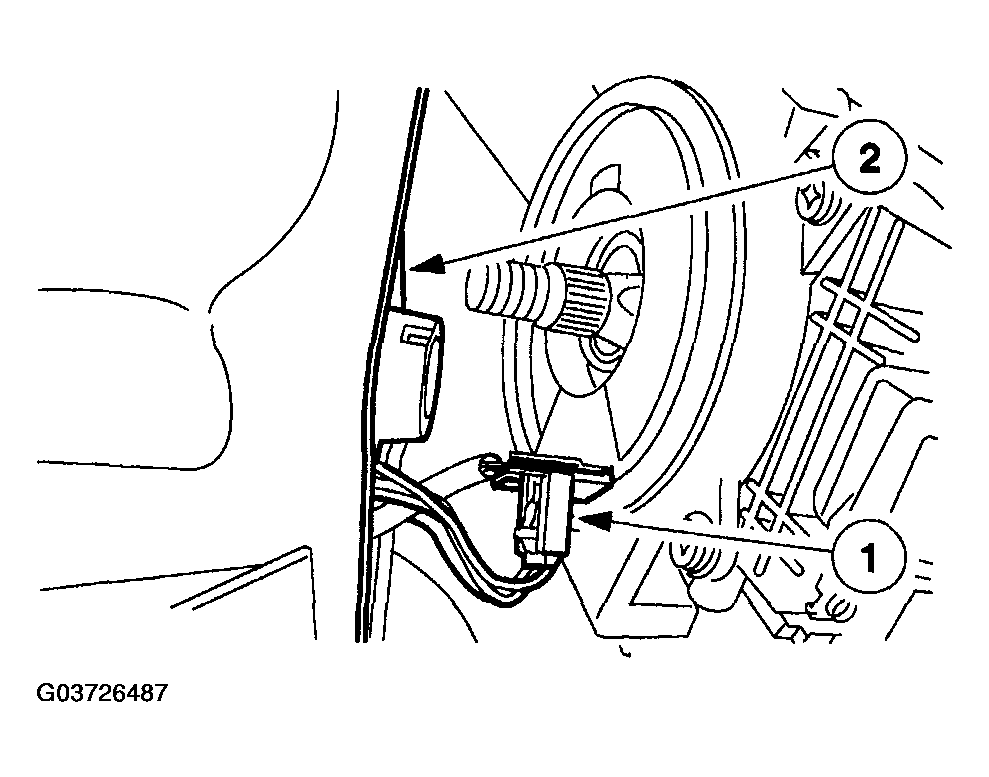

Fig 9: Connecting Passive Anti-Theft System (PATS) Transceiver Module Electrical Connector

Courtesy of MAZDA MOTORS CORP.

Connect the passive anti-theft system (PATS) transceiver module electrical connector and install the pin-type retainer.

Fig 10: Installing Trim Panel

Courtesy of MAZDA MOTORS CORP.

Install the trim panel.

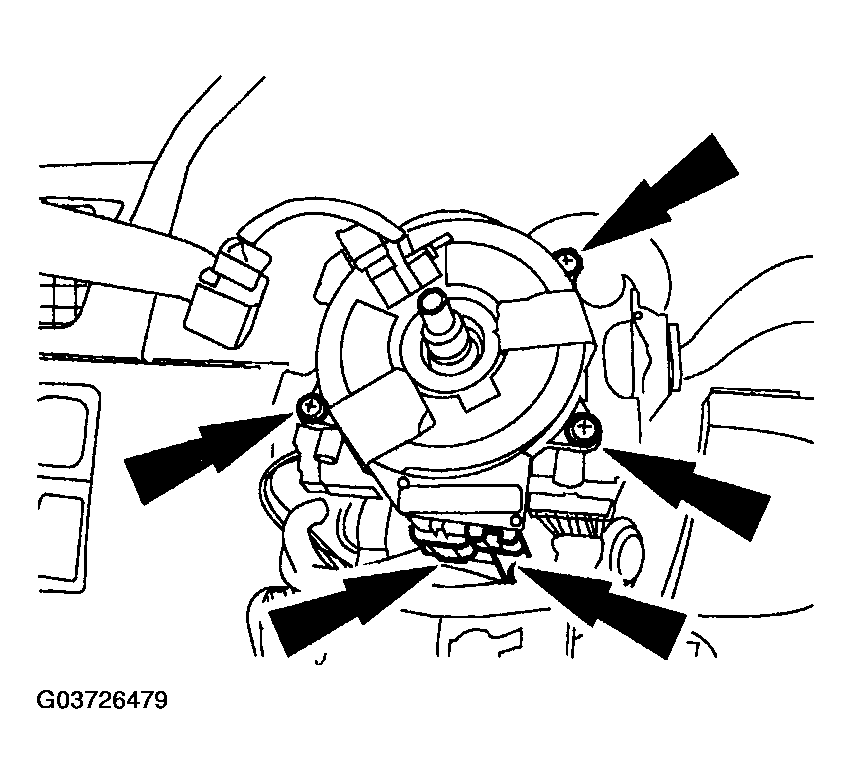

Fig 11: Installing Air Bag Sliding Contact

Courtesy of MAZDA MOTORS CORP.

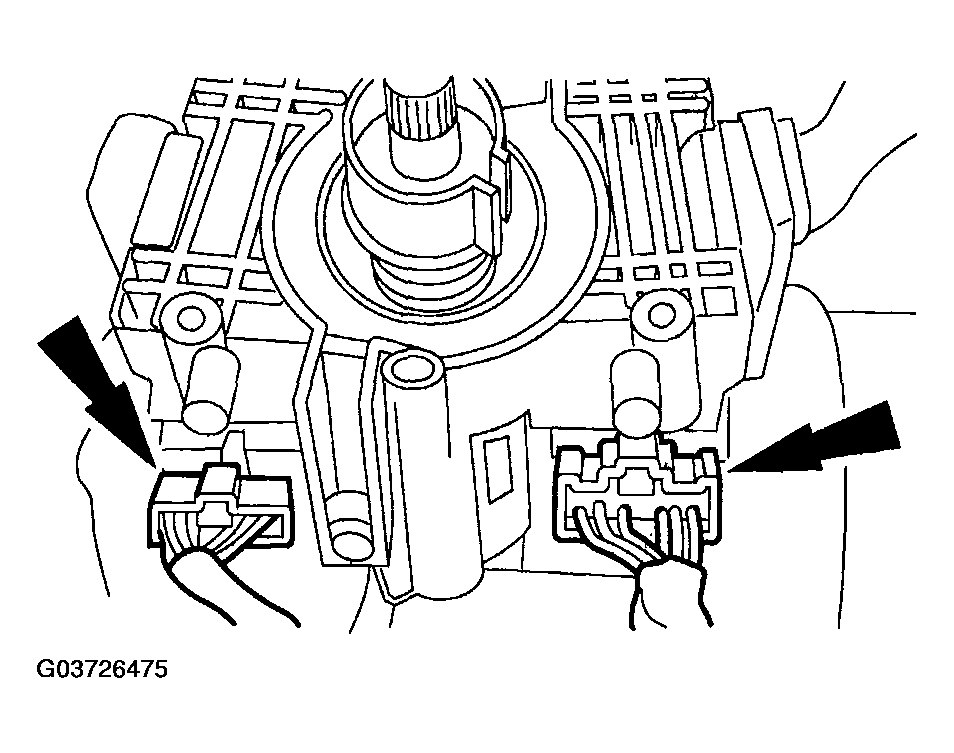

Install the air bag sliding contact.
- Install the screws.
- Connect the electrical connectors.

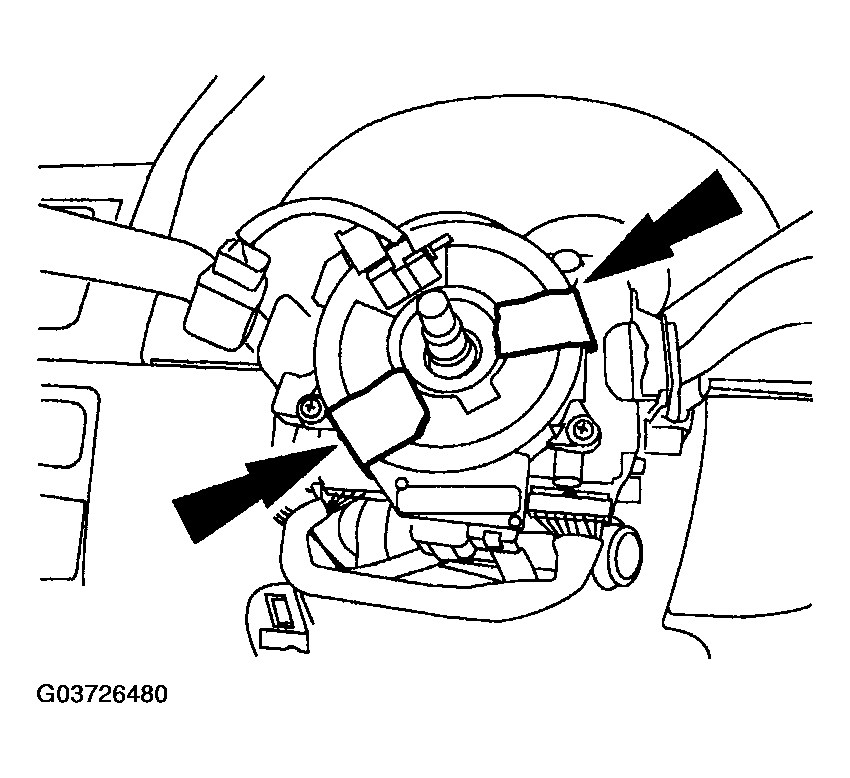

Fig 12: Removing Tape From Air Bag Sliding Contact

Courtesy of MAZDA MOTORS CORP.

Remove the tape from the air bag sliding contact.

Fig 13: Centering Air Bag Sliding Contact And Turning Clockwise Until Slight Resistance Is Felt Then Turning Counter Clockwise

Courtesy of MAZDA MOTORS CORP.

Center air bag sliding contact, turn clockwise until slight resistance is felt then turn counter clockwise 2.75 turns.

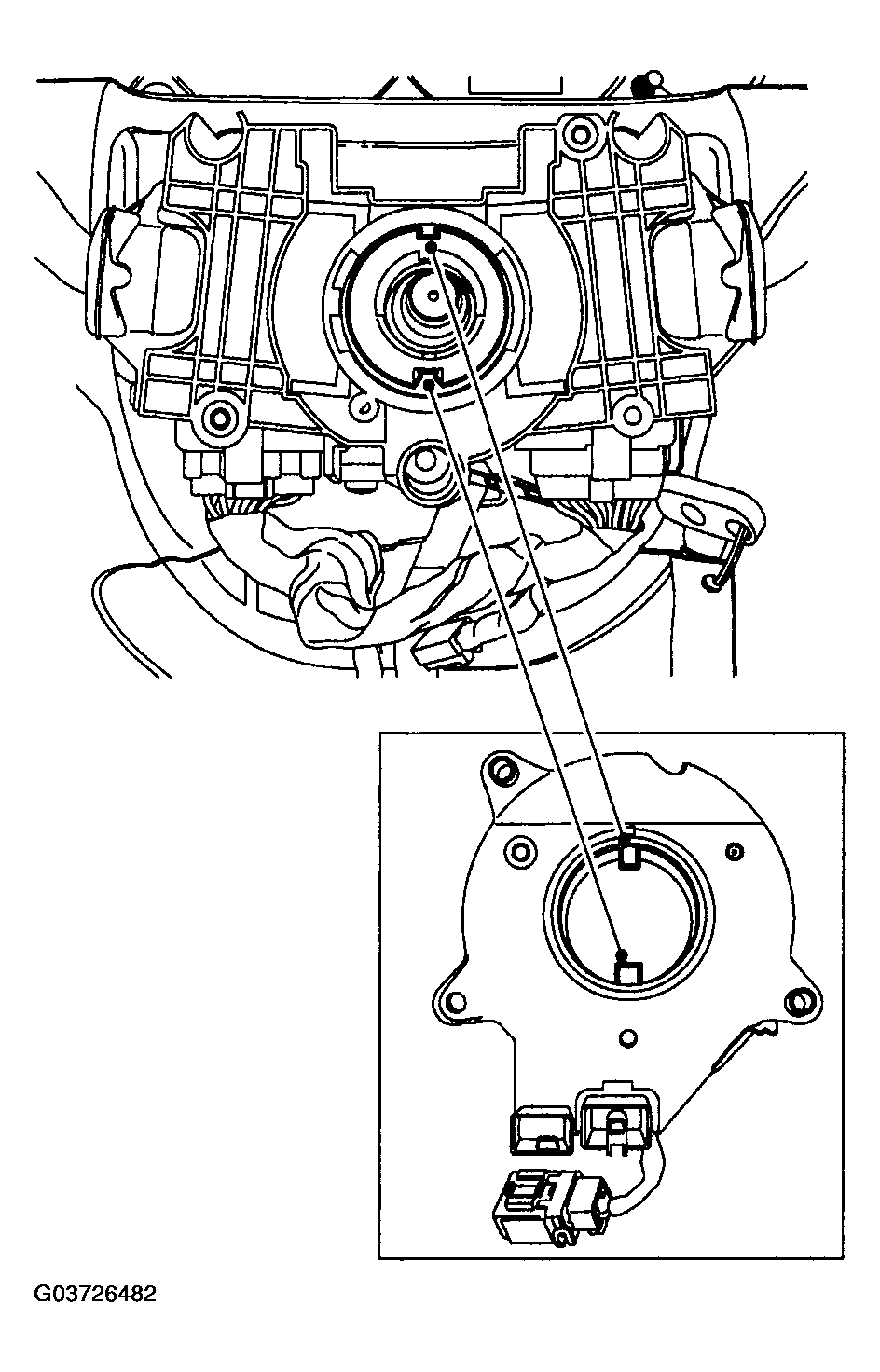

Fig 14: Aligning Air Bag Sliding Contact Tabs

Courtesy of MAZDA MOTORS CORP.

Align the air bag sliding contact tabs.

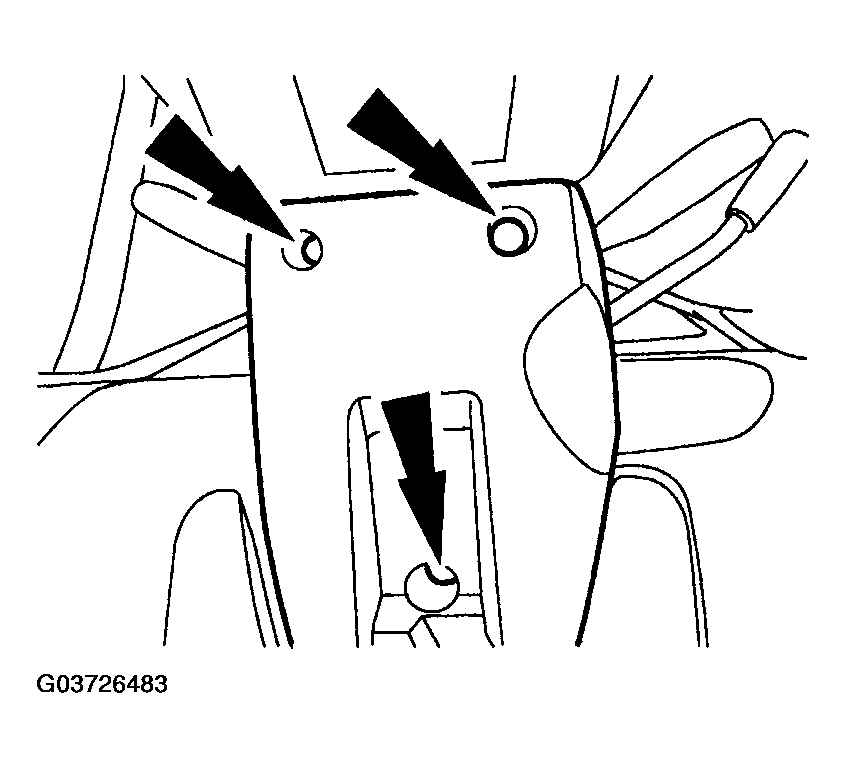

Fig 15: Installing Screws And Lower Steering Column Shroud

Courtesy of MAZDA MOTORS CORP.

Install the screws and the lower steering column shroud.

Fig 16: Installing Upper Steering Column Shroud

Courtesy of MAZDA MOTORS CORP.

Install the upper steering column shroud.

Fig 17: Installing Steering Wheel

Courtesy of MAZDA MOTORS CORP.

Install the steering wheel. See STEERING WHEEL .
