Idle Air Control (IAC) Valve - 2.3L: Notes

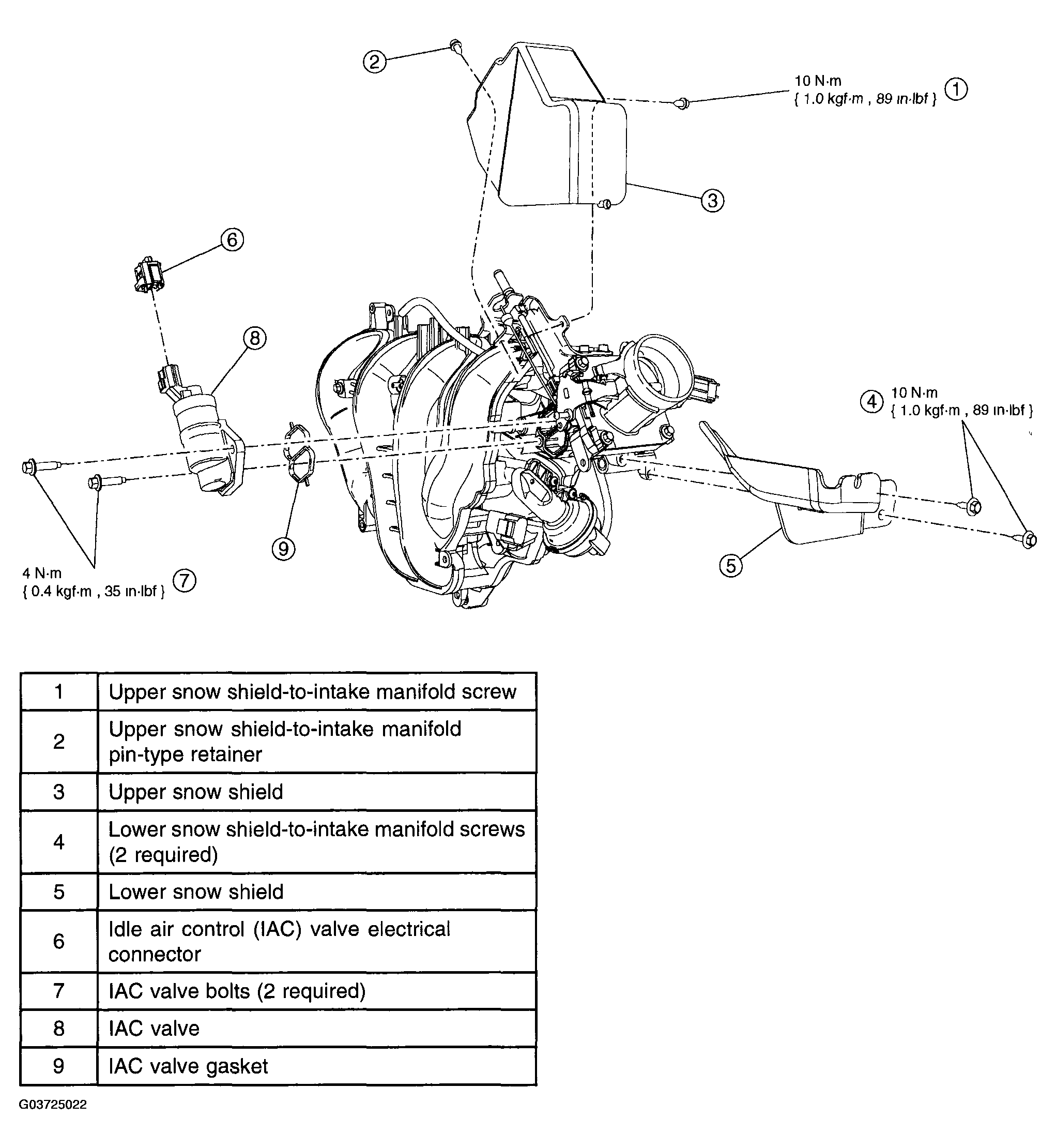

Fig 1: Removing/Installing Idle Air Control (IAC) Valve & Torque Specifications - 2.3L

G03725022

Courtesy of MAZDA MOTORS CORP.
