Home >> Mazda >> 2005 >> Tribute i, FWD, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Heated Oxygen Sensor (Ho2S) And Catalyst Monitor Sensor - 3.0L (4V) >> Notes

Heated Oxygen Sensor (Ho2S) And Catalyst Monitor Sensor - 3.0L (4V): Notes

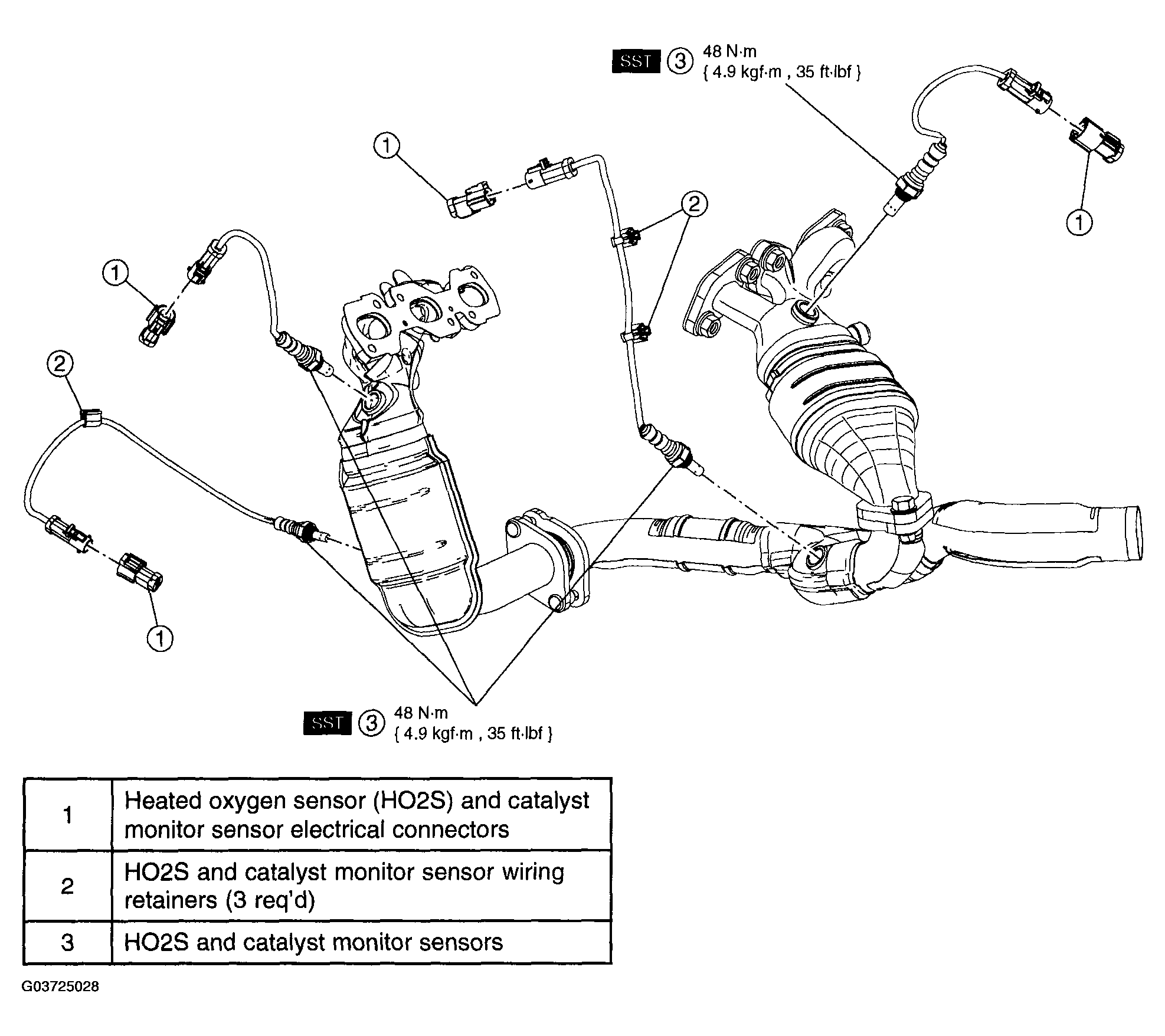

Fig 1: Removing/Installing Heated Oxygen Sensor (HO2S) And Catalyst Monitor Sensor & Torque Specifications - 3.0L (4V)
G03725028Courtesy of MAZDA MOTORS CORP.
