Crankshaft Position (CKP) Sensor - 2.3L: Installation

CAUTION:

Install a 6 mm (0.23 in) x 18 mm (0.7 in) standard bolt.
NOTE:
- Do not tighten the bolts at this time.

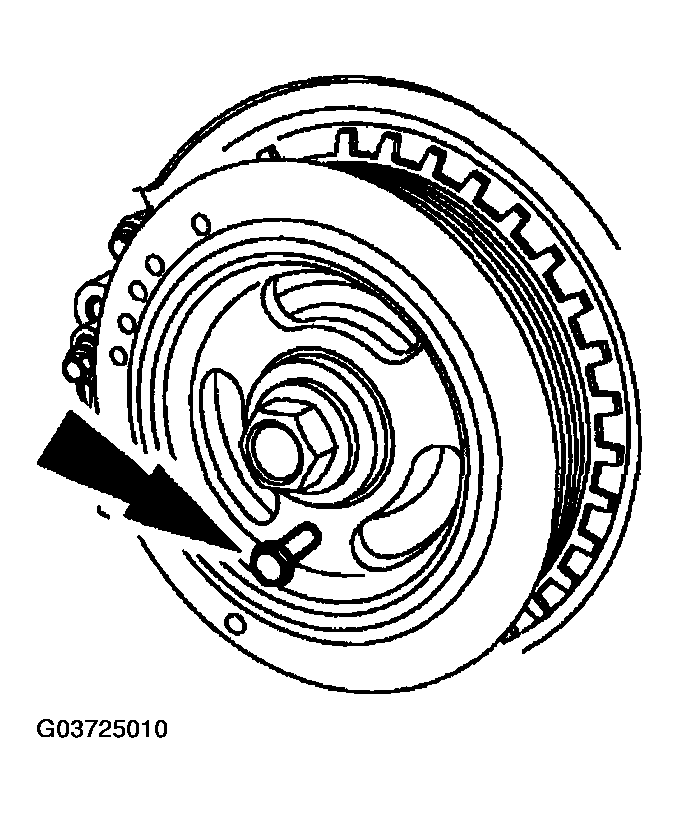

Fig 1: Installing Standard Bolt
Courtesy of MAZDA MOTORS CORP.
Install the CKP sensor and connect the electrical connector.

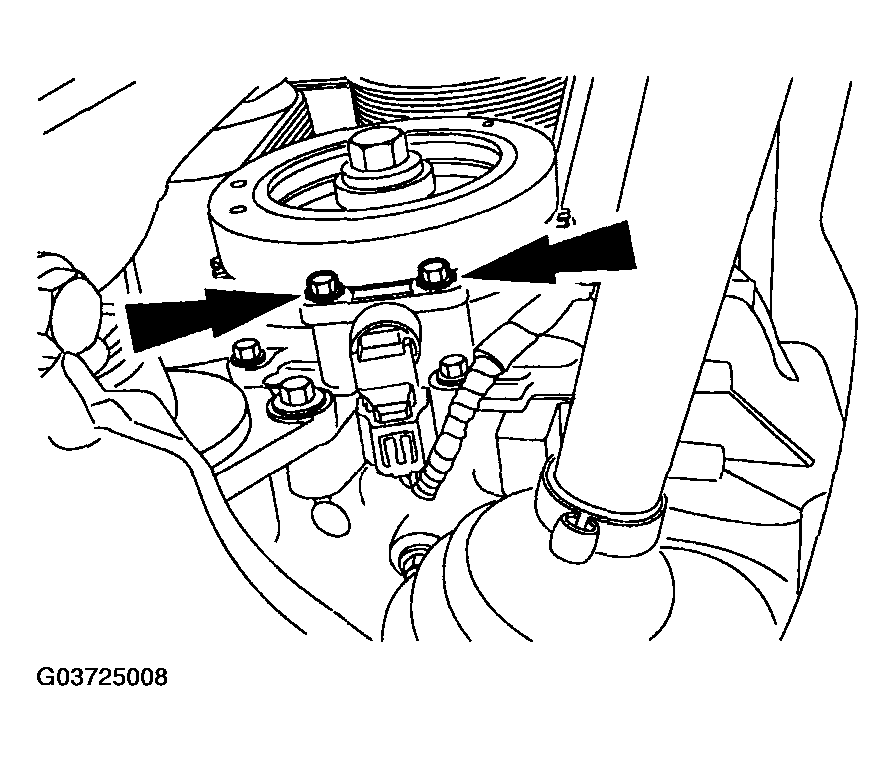

Fig 2: Installing CKP Sensor & Connecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Adjust the CKP sensor alignment jig and tighten the CKP bolts to the specification.

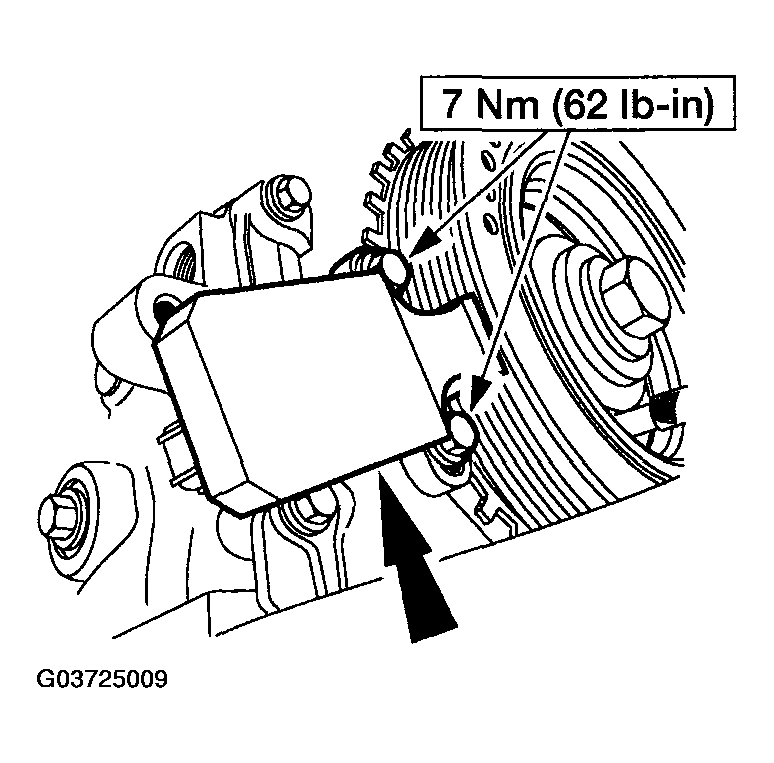

Fig 3: Adjusting CKP Sensor & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.

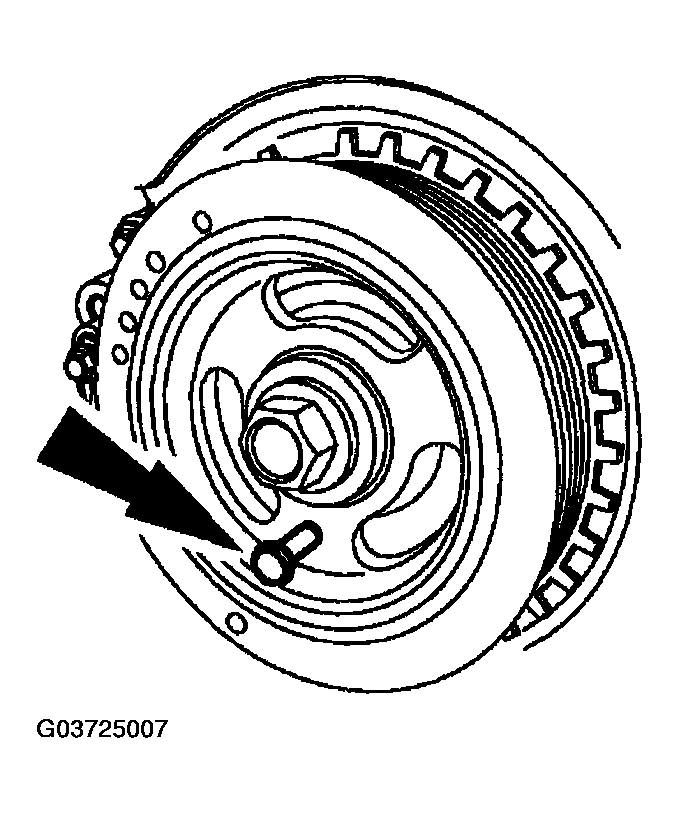

Fig 4: Removing Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the special tool.

Fig 5: Removing Special Tool
Courtesy of MAZDA MOTORS CORP.
Install the plug.

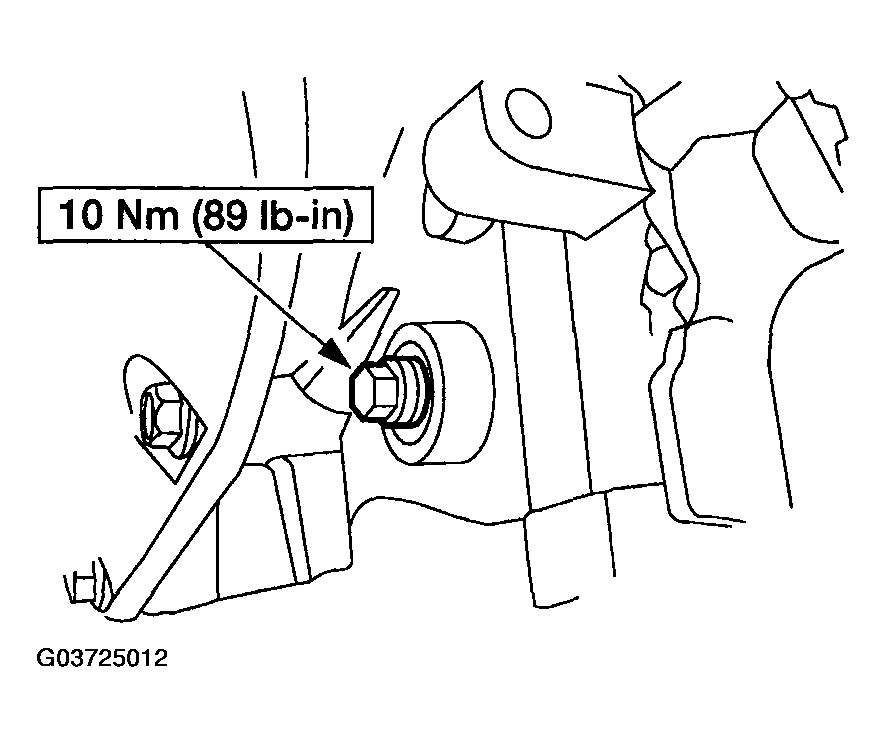

Fig 6: Installing Plug & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Connect the negative battery cable. See BATTERY DISCONNECT .
