Camshaft Position (CMP) Sensor - 3.0L (4V): Notes

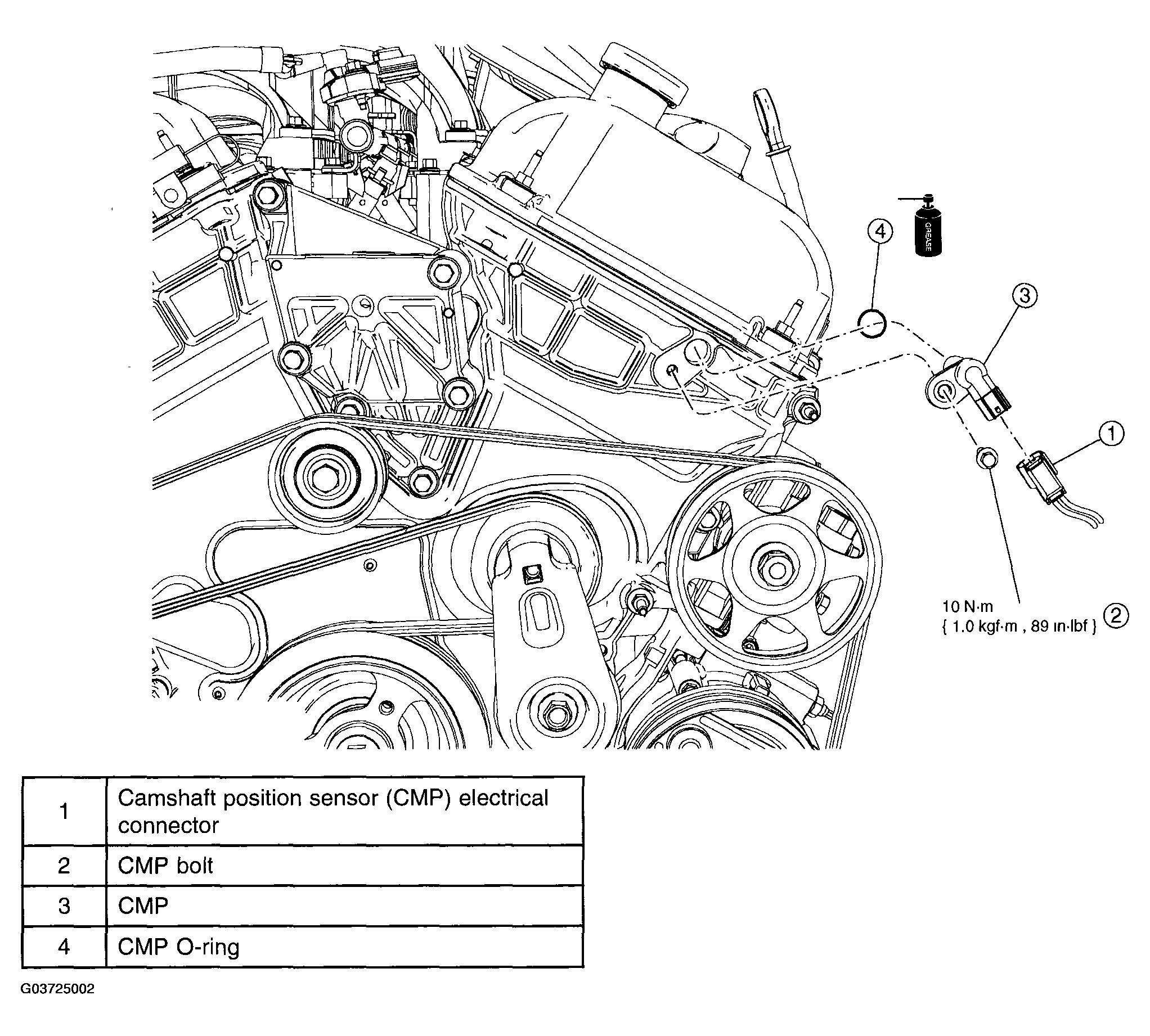

Fig 1: Removing/Installing Camshaft Position Sensor & Torque Specifications - 3.0L (4V)

G03725002

Courtesy of MAZDA MOTORS CORP.
