Removal and Installation
WARNING:
- Use of any other than approved DOT 3 motor vehicle brake fluid will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury.
WARNING:
- Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION:
- Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
CAUTION:
- Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.
NOTE:
- When installing a new ABS module it must be configured (using vehicle as-built data) and calibrated. Follow the scan tool directions for the configuration and calibration procedures. See MODULE CONFIGURATION .
- Disconnect the battery. See BATTERY DISCONNECT .
- Remove the hydraulic control unit (HCU). See HYDRAULIC CONTROL UNIT .

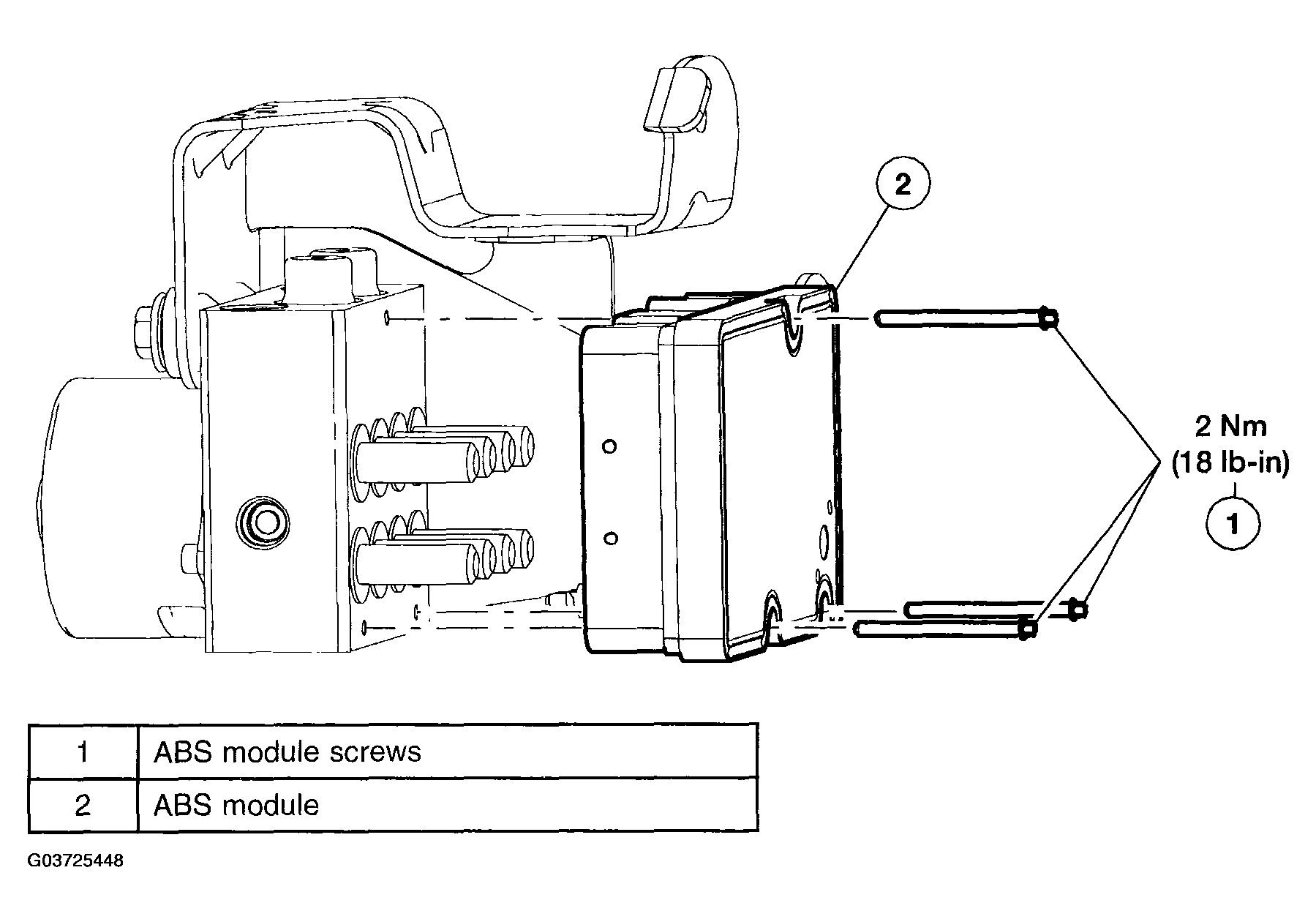

- Remove the ABS module screws.
- Remove the ABS module.
- To install, reverse the removal procedure.
