Front Door Window Glass

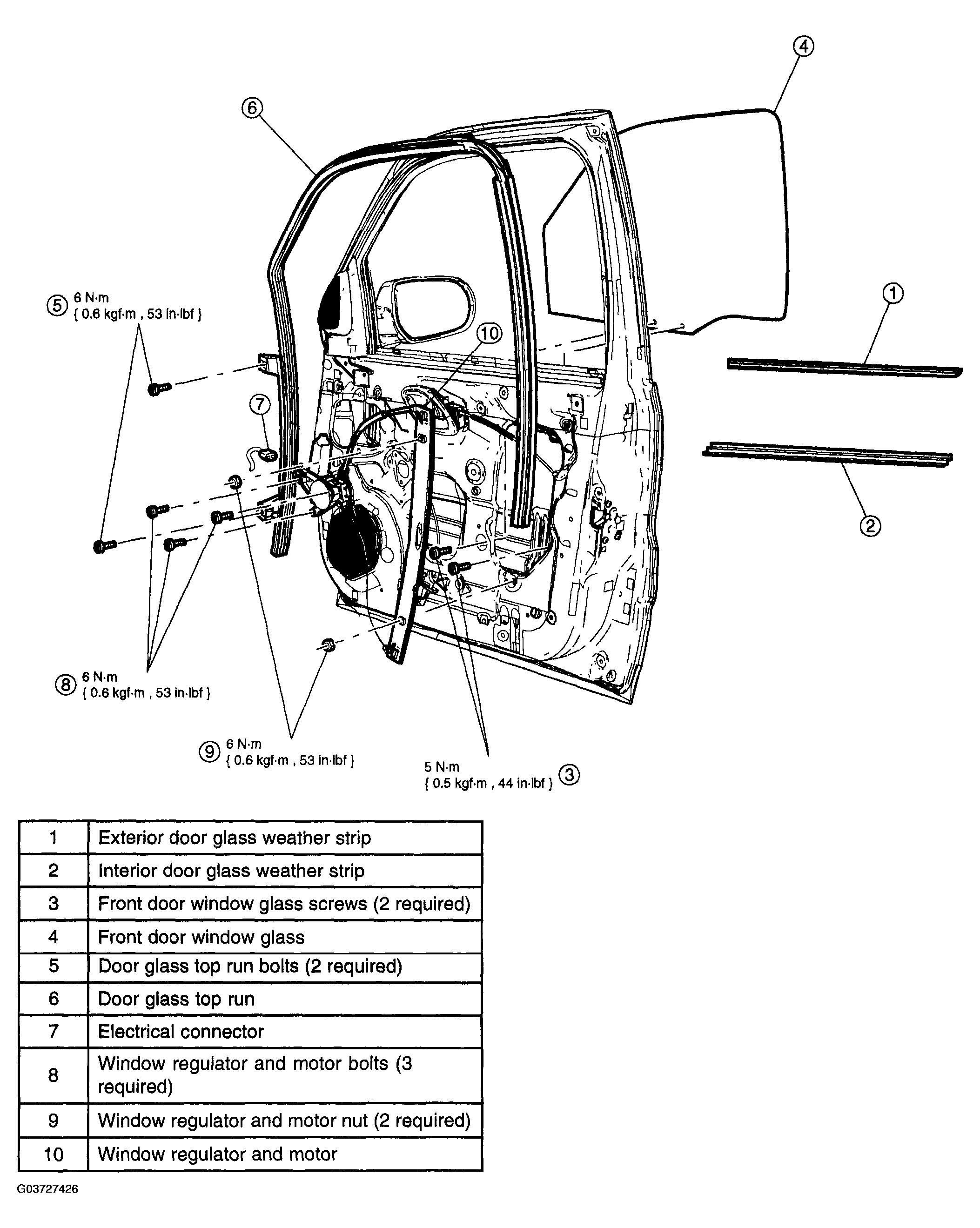

Fig 1: Front Door Window Glass Replacement Components -- With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

NOTE:

NOTE:

If removing the door glass top run, remove the sail panel and disconnect the electrical connector.

NOTE:

If removing the window regulator and motor, manually raise the front door window glass to the full up position in the front door window run and secure it in place.

Remove the front door trim panel. See FRONT DOOR TRIM PANEL .
Remove the screw and the door trim panel bracket.

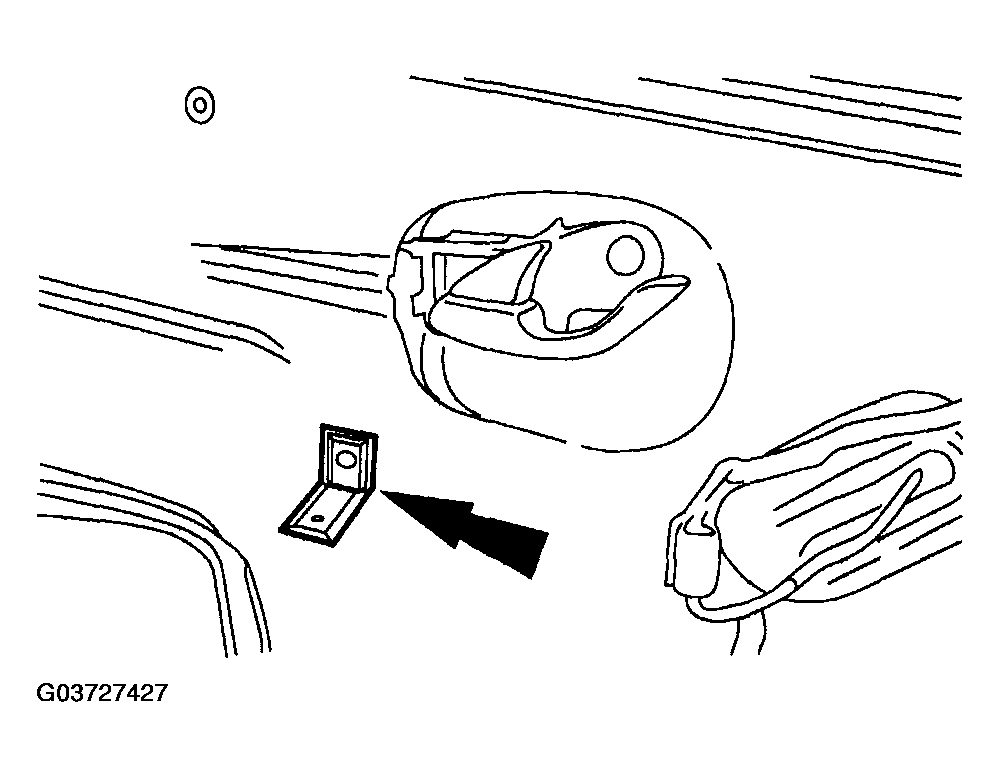

Fig 2: Removing Screw And Door Trim Panel Bracket
Courtesy of MAZDA MOTORS CORP.
Position the watershield aside.
Remove the front door interior glass weatherstrip.

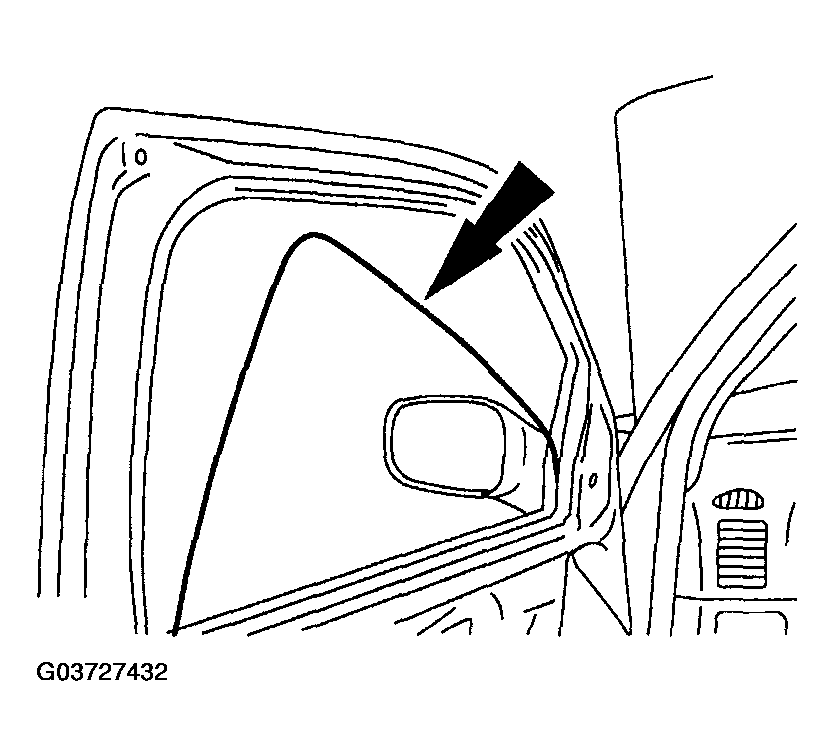

Fig 3: Removing Front Door Interior Glass Weatherstrip
Courtesy of MAZDA MOTORS CORP.

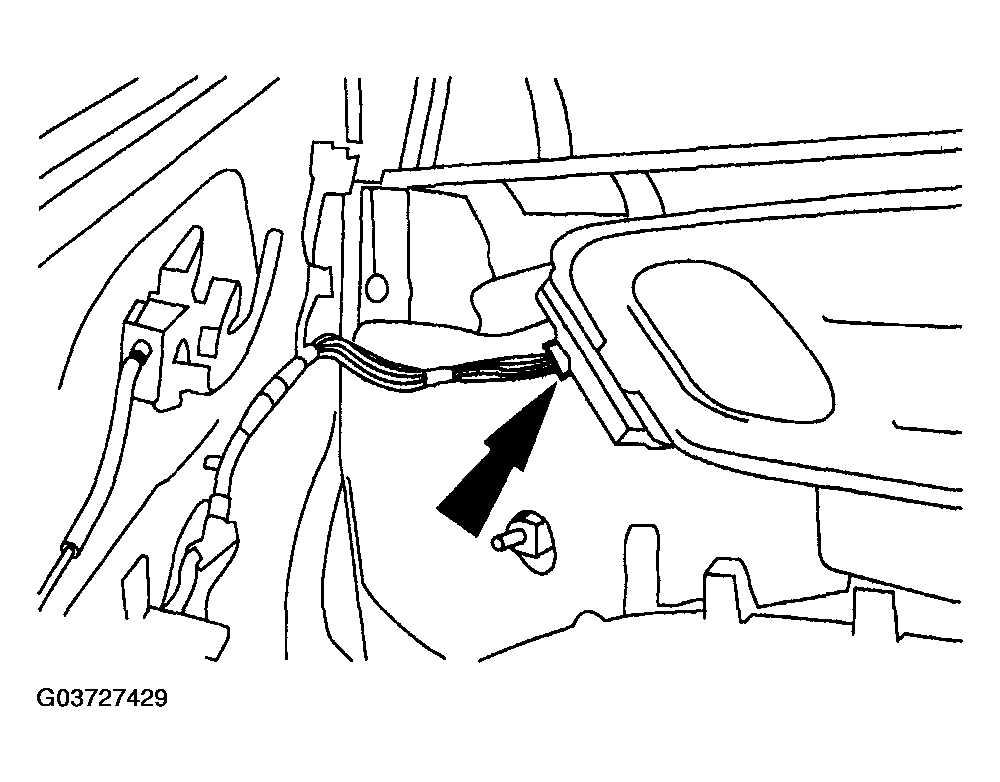

Connect the window control switch to the door harness.

Fig 4: Connecting Window Control Switch To Door Harness
Courtesy of MAZDA MOTORS CORP.
Connect the battery.
Lower the front door window glass to gain access to the screws.

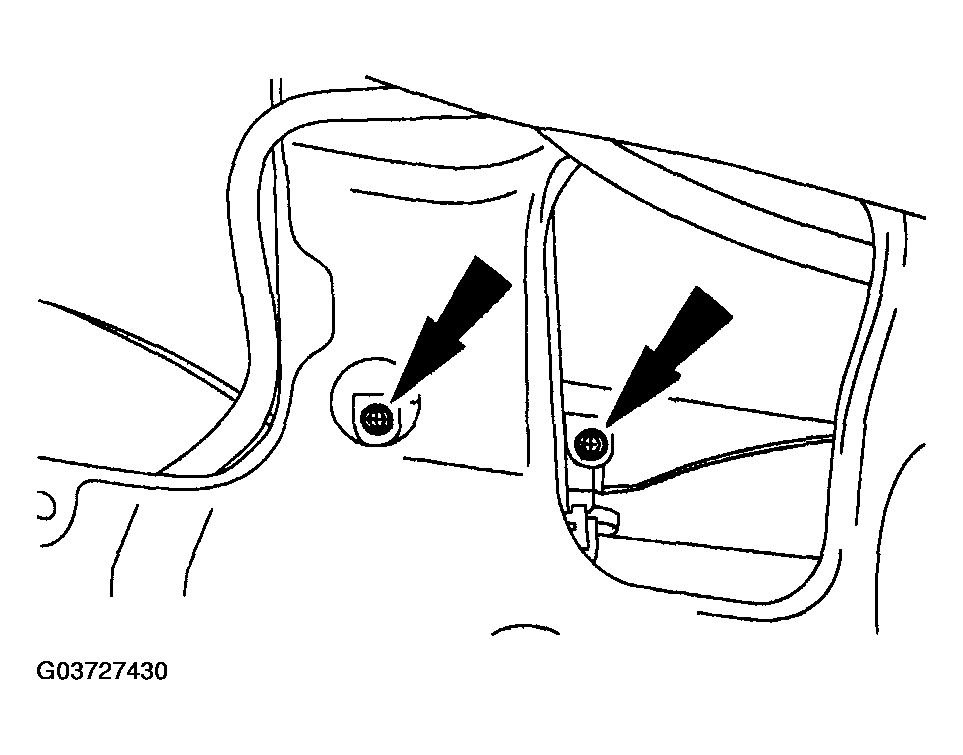

Fig 5: Removing Front Door Window Glass To Gain Access To Screws
Courtesy of MAZDA MOTORS CORP.
Disconnect the battery.
Disconnect the window control switch.
Remove the front door window glass screws.

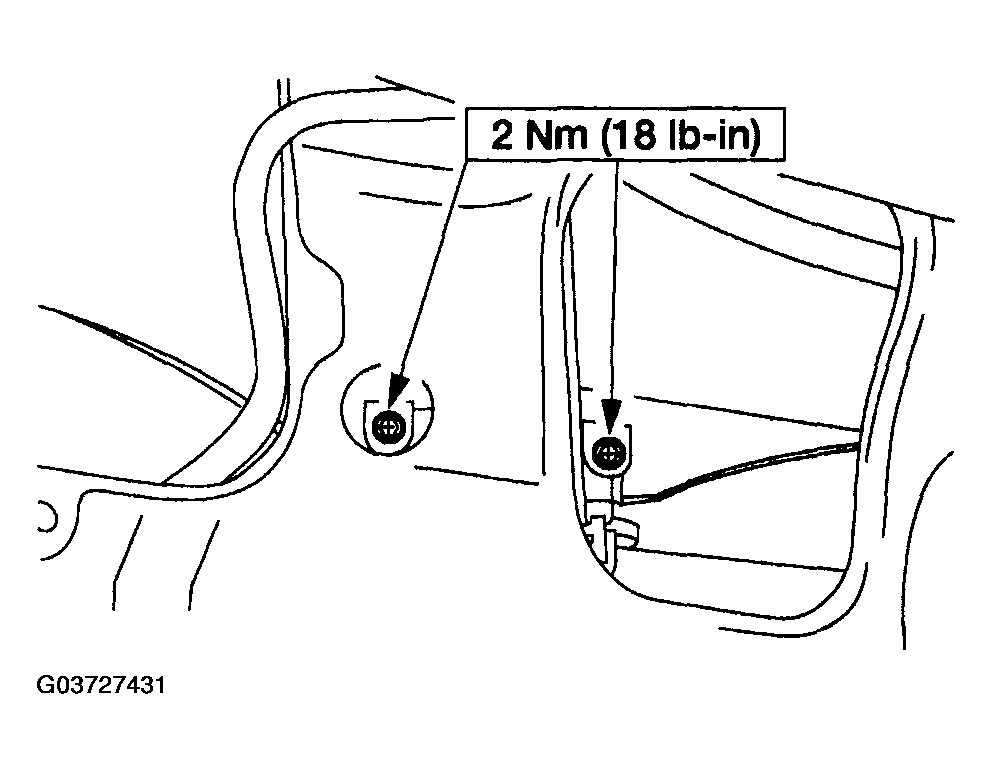

Fig 6: Removing Front Door Window Glass Screws - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front door window glass.

Fig 7: Removing Front Door Window Glass
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
- Cycle the front door window glass to make sure of correct door window glass engagement.
