Removal and Installation: Notes

NOTE:
  • Make sure the liftgate window glass is in the raised position.
  1. Remove the liftgate trim panel.
  2. Disconnect the liftgate window latch.
    1. Disconnect the liftgate window latch ajar switch electrical connector.
    2. Open the clip and disconnect the actuating rod.

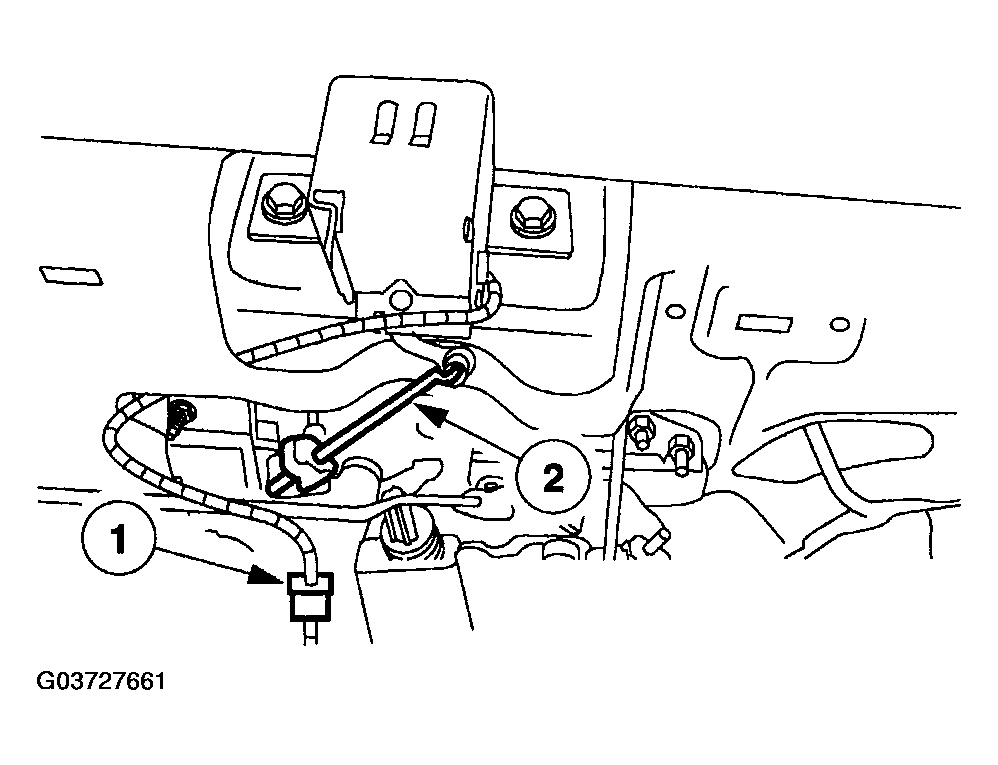

    Fig 1: Disconnecting Liftgate Window Latch
    G03727661Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Mark the position of the liftgate window latch prior to removing the nuts.
  3. Remove the liftgate window latch.
    1. Remove the bolts.
    2. Remove the latch.
    Fig 2: Removing Liftgate Window Latch
    G03727662Courtesy of MAZDA MOTORS CORP.
