Liftgate Latch: Notes

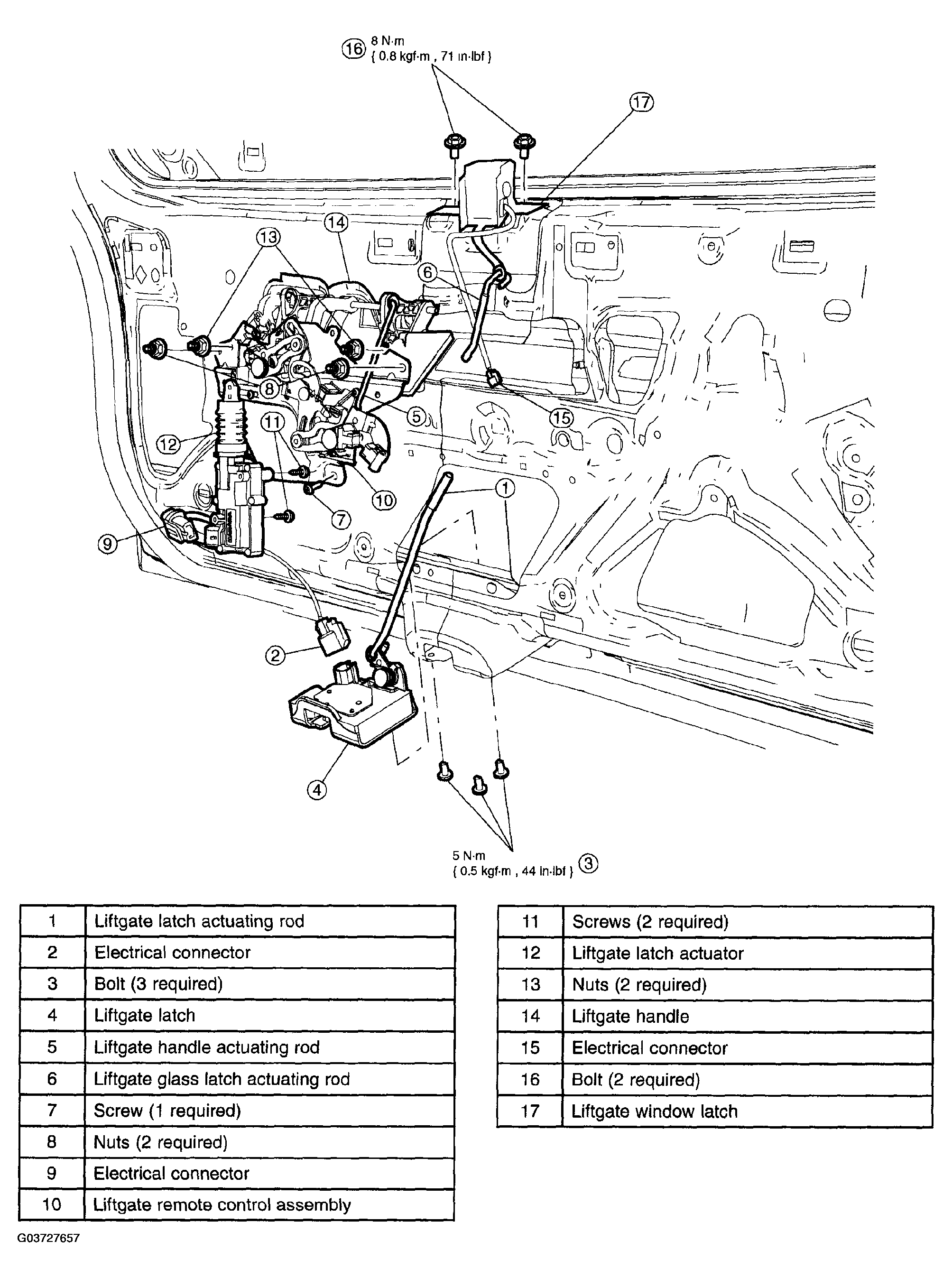

Fig 1: Liftgate Latch Replacement Components -- With Torque Specification

G03727657

Courtesy of MAZDA MOTORS CORP.
