Hood Latch: Notes

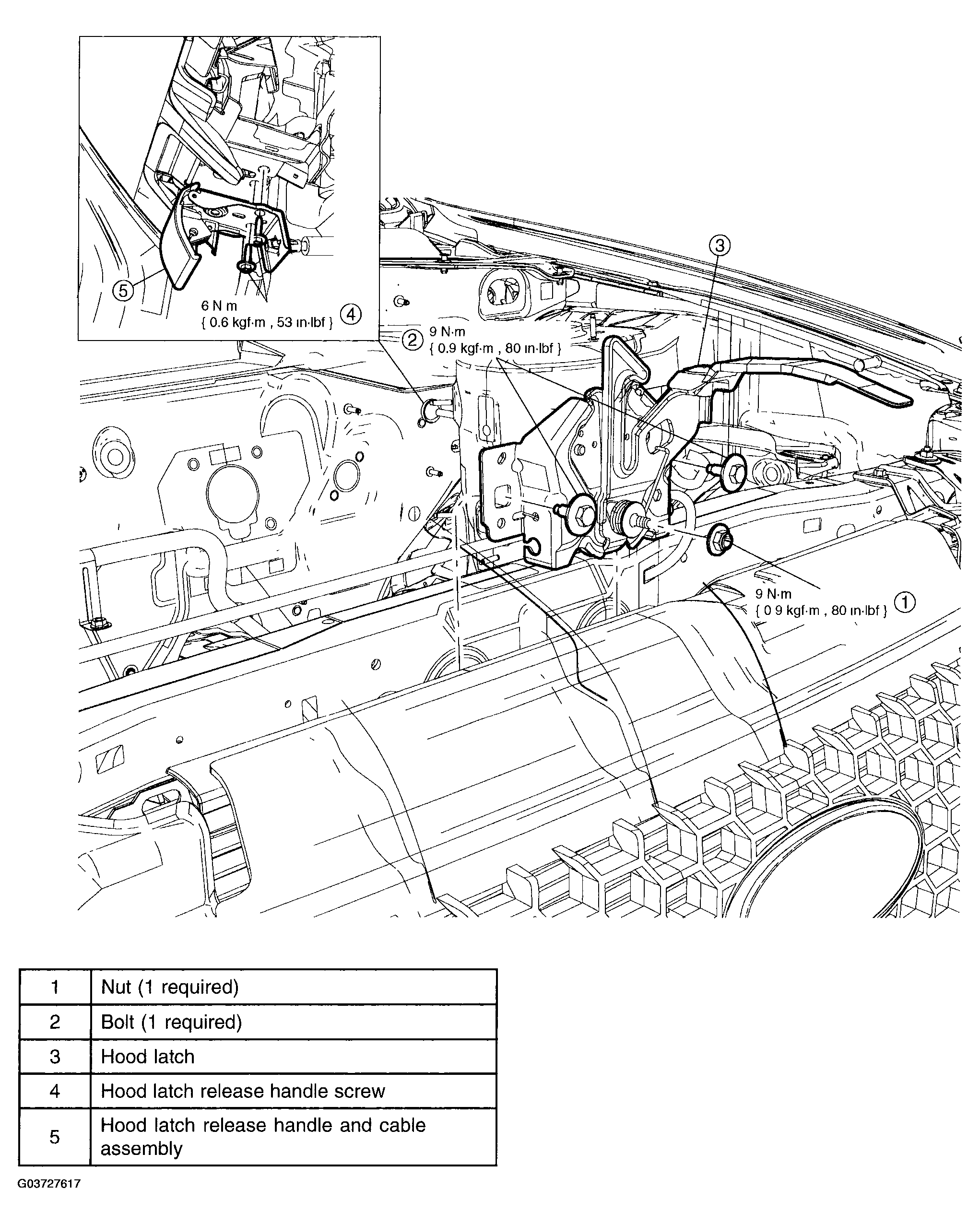

Fig 1: Hood Latch Replacement Components -- With Torque Specifications

G03727617

Courtesy of MAZDA MOTORS CORP.
