Four - Wheel Drive (4WD) Control Module: Notes

WARNING: This page is about a different variant/trim than selected.

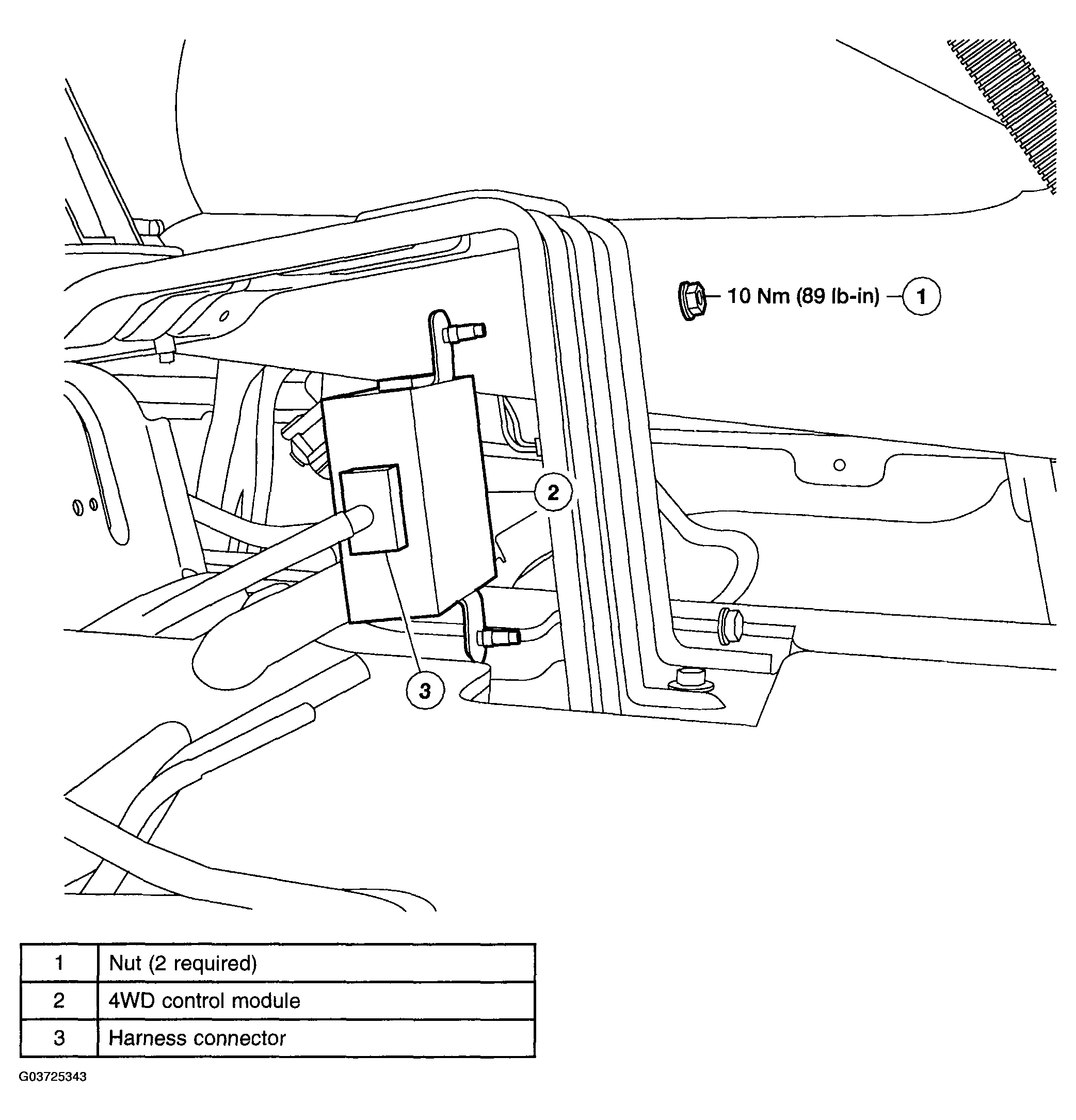

Fig 1: Removing/Installing Wheel Drive Control Module (4WD)
G03725343Courtesy of MAZDA MOTORS CORP.
