Rear Door Latch: Notes

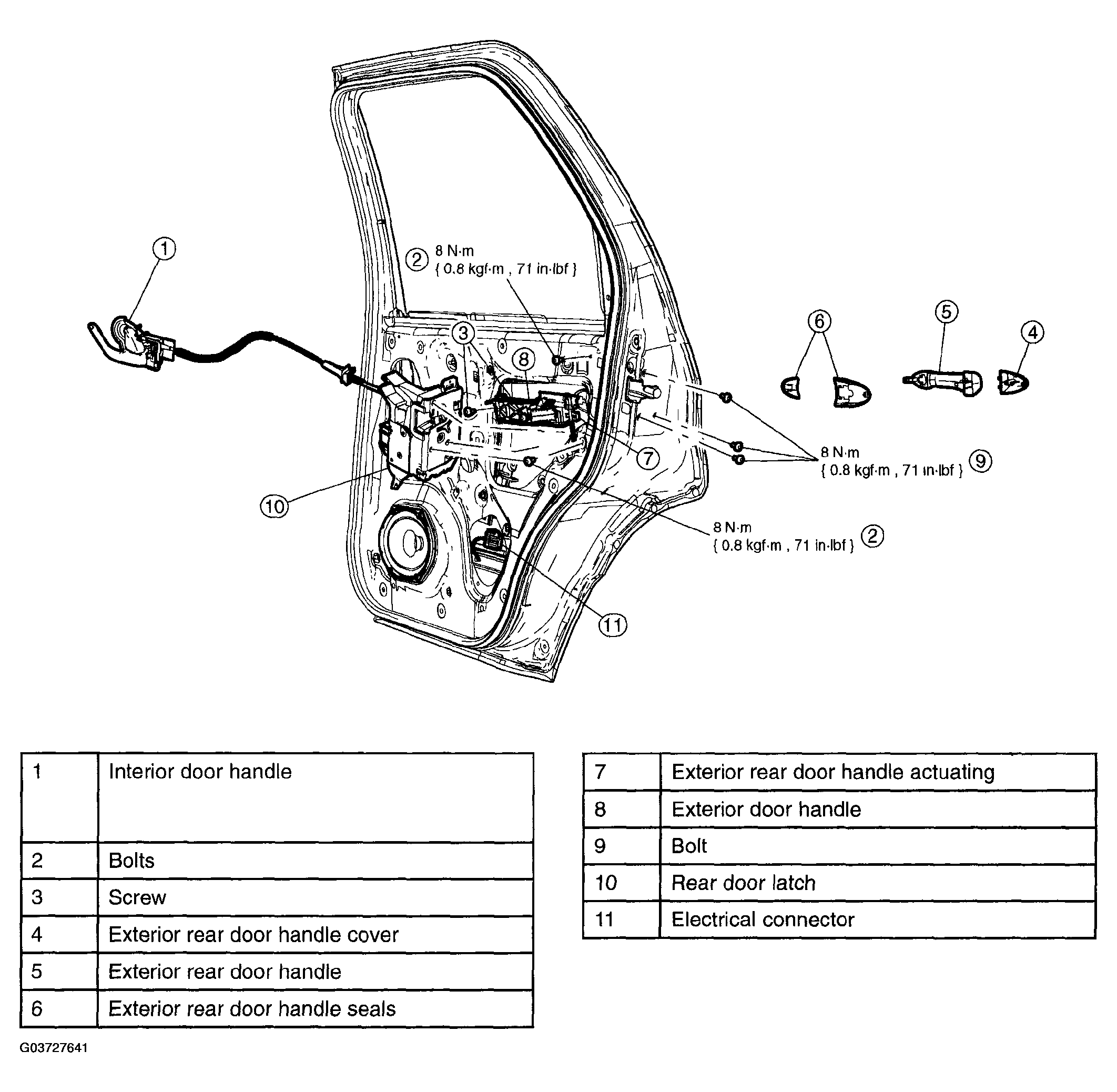

Fig 1: Rear Door Latch Replacement Components -- With Torque Specifications

G03727641

Courtesy of MAZDA MOTORS CORP.
