Safety Belt Buckle And PRETENSIONER: Notes

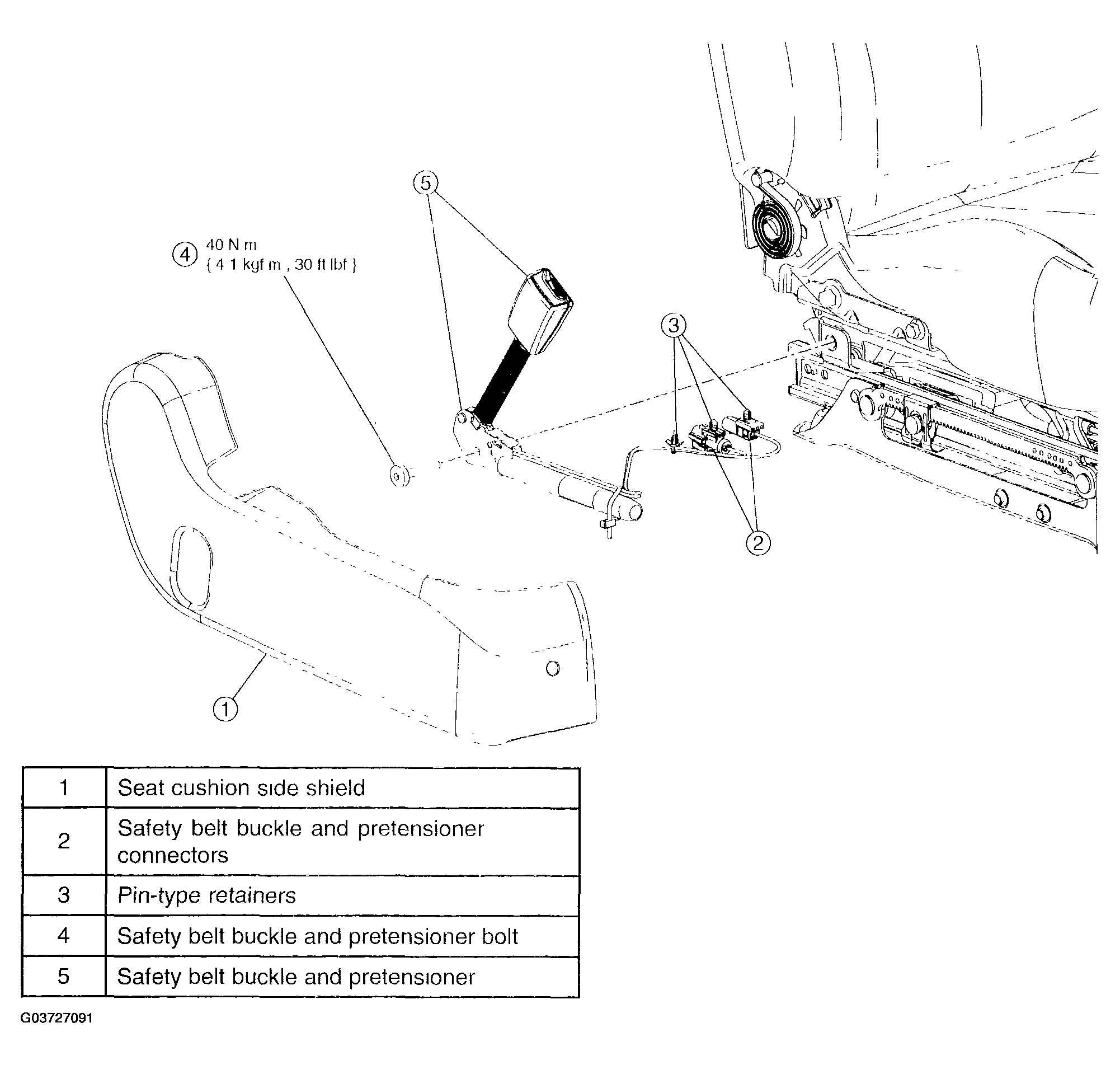

Fig 1: Safety Belt Buckle And Pretensioner Replacement Components -- With Torque Specification

G03727091

Courtesy of MAZDA MOTORS CORP.
