DTCs Reading Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent tester to the vehicle DLC-2 16-pin connector located on the left side of the center console.

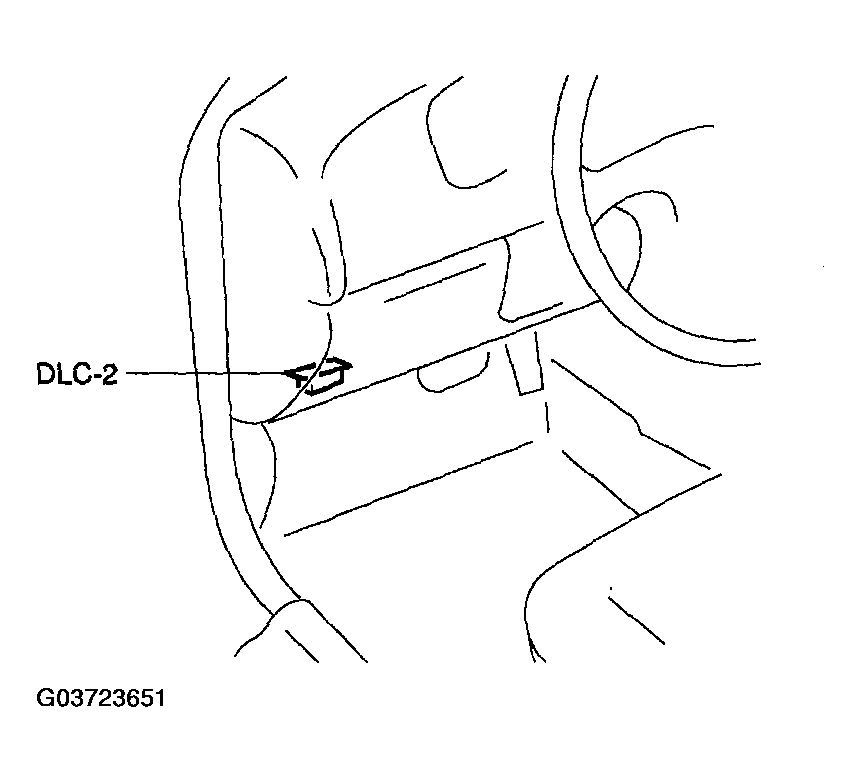

    Fig 1: Locating Data Link Connector
    G03723651Courtesy of MAZDA MOTORS CORP.
  3. Retrieve the DTCs by WDS or equivalent tester.
