Removal and Installation

Remove the rear door trim panel. See REAR DOOR TRIM PANEL .
Remove the screw and the rear door trim panel bracket.

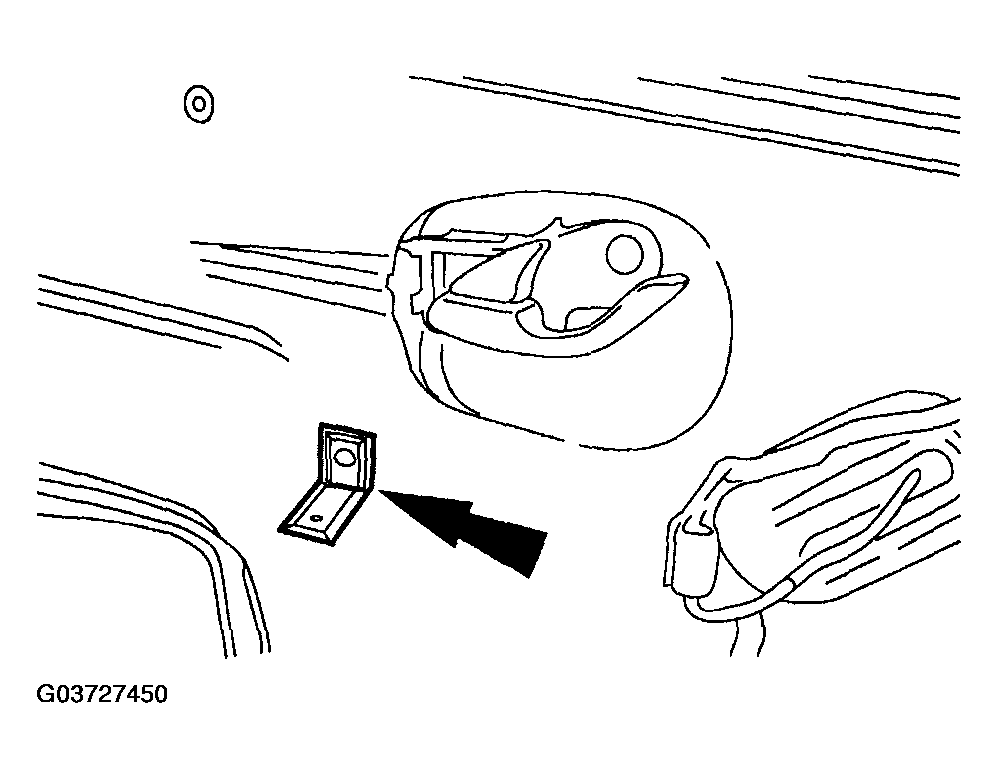

Fig 1: Removing Screw And Rear Door Trim Panel Bracket
Courtesy of MAZDA MOTORS CORP.
Position the water shield aside.
Connect the window control switch electrical connector.

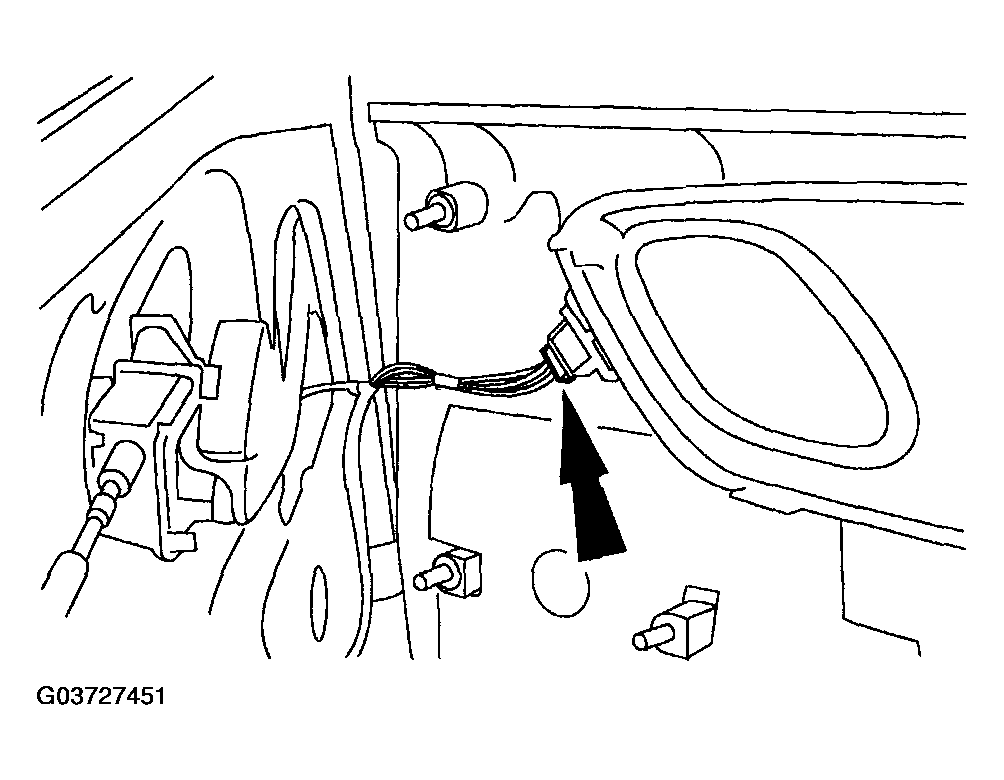

Fig 2: Connecting Window Control Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Lower the rear door window glass to gain access to the screws.

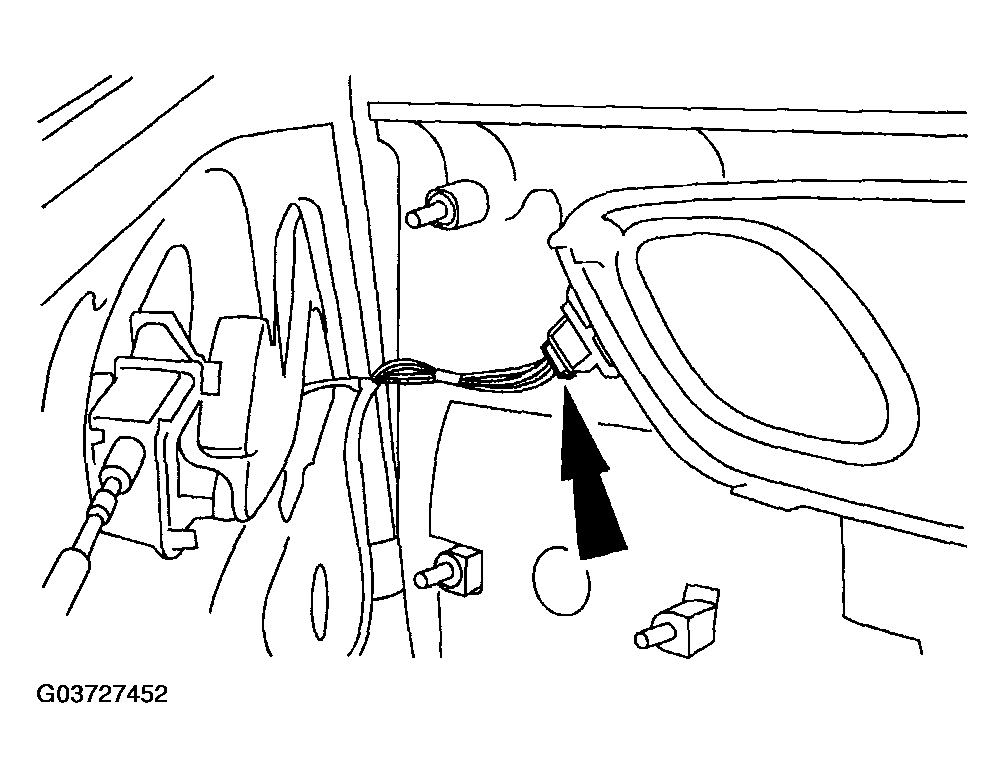

Disconnect the window control switch electrical connector.

Fig 3: Disconnecting Window Control Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.

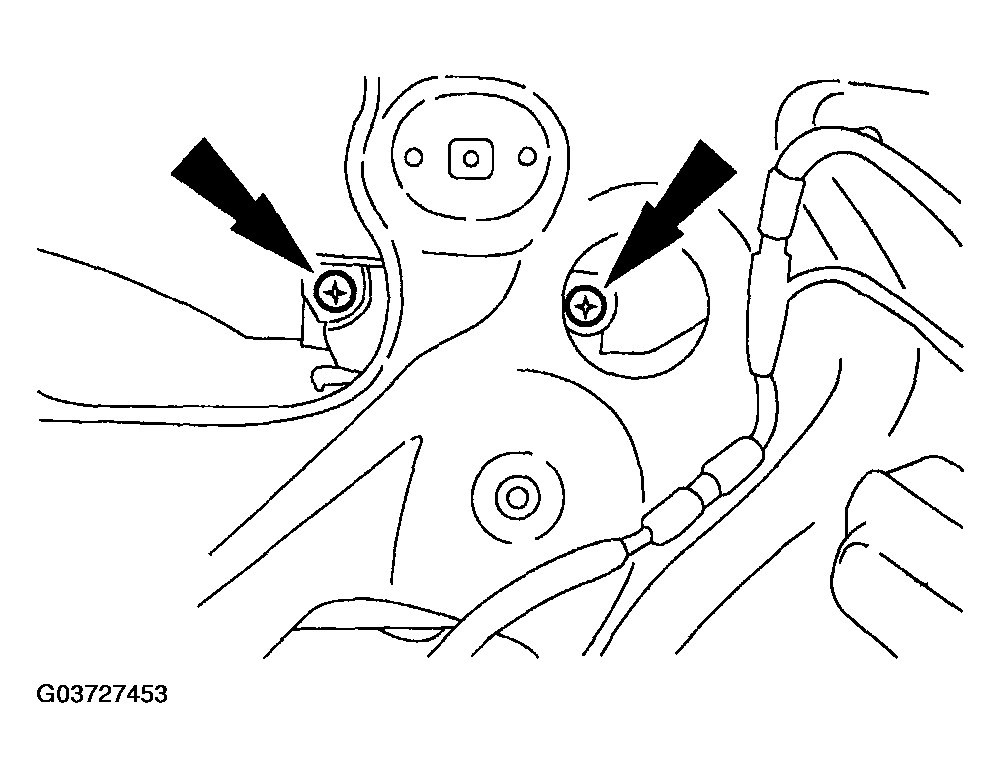

Remove the rear door window glass screws.

Fig 4: Removing Rear Door Window Glass Screws
Courtesy of MAZDA MOTORS CORP.
Support the rear door window glass in the full up position.
Disconnect the rear door power window regulator electrical connector.

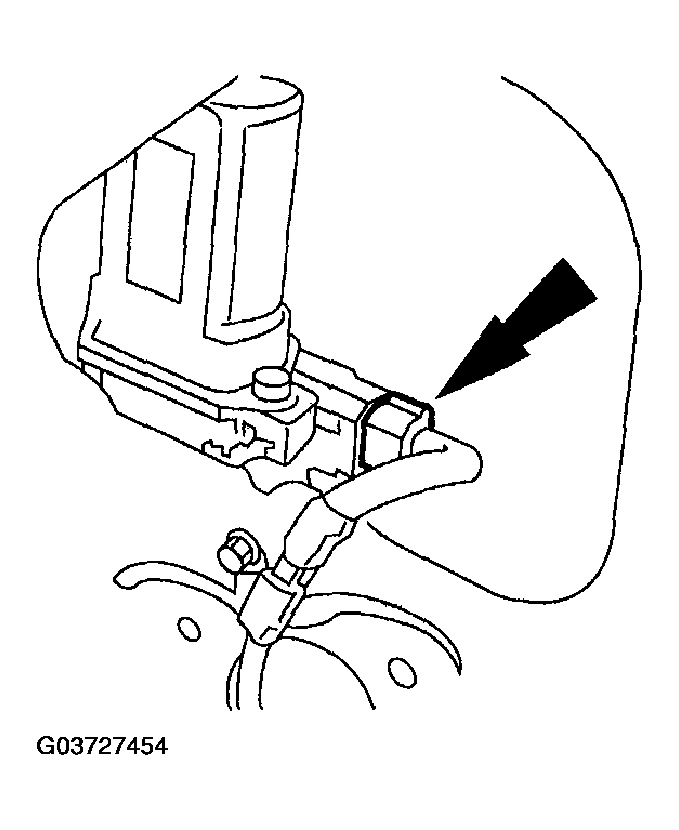

Fig 5: Disconnecting Rear Door Power Window Regulator Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the rear door power window regulator assembly.
1. Remove the bolts.
2. Remove the nuts.

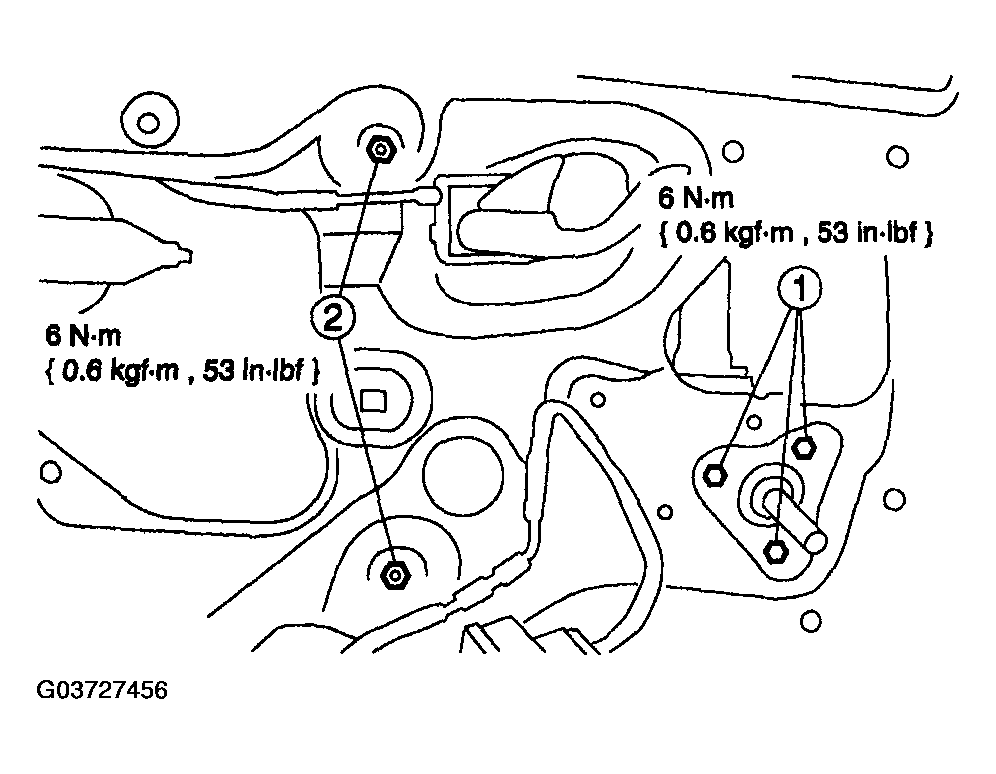

Fig 6: Removing Rear Door Power Window Regulator Assembly - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the rear door window regulator assembly
1. Remove the bolts.
2. Remove the nuts.

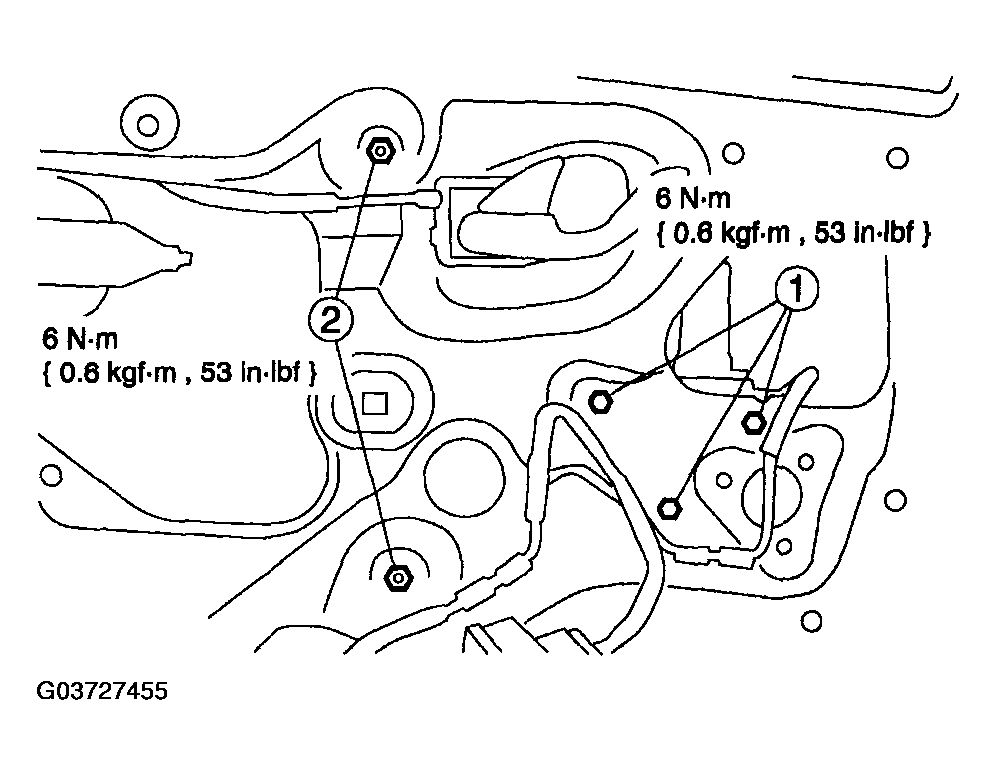

Fig 7: Removing Rear Door Window Regulator Assembly - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
- Cycle the door glass to make sure of correct window glass engagement.
