Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

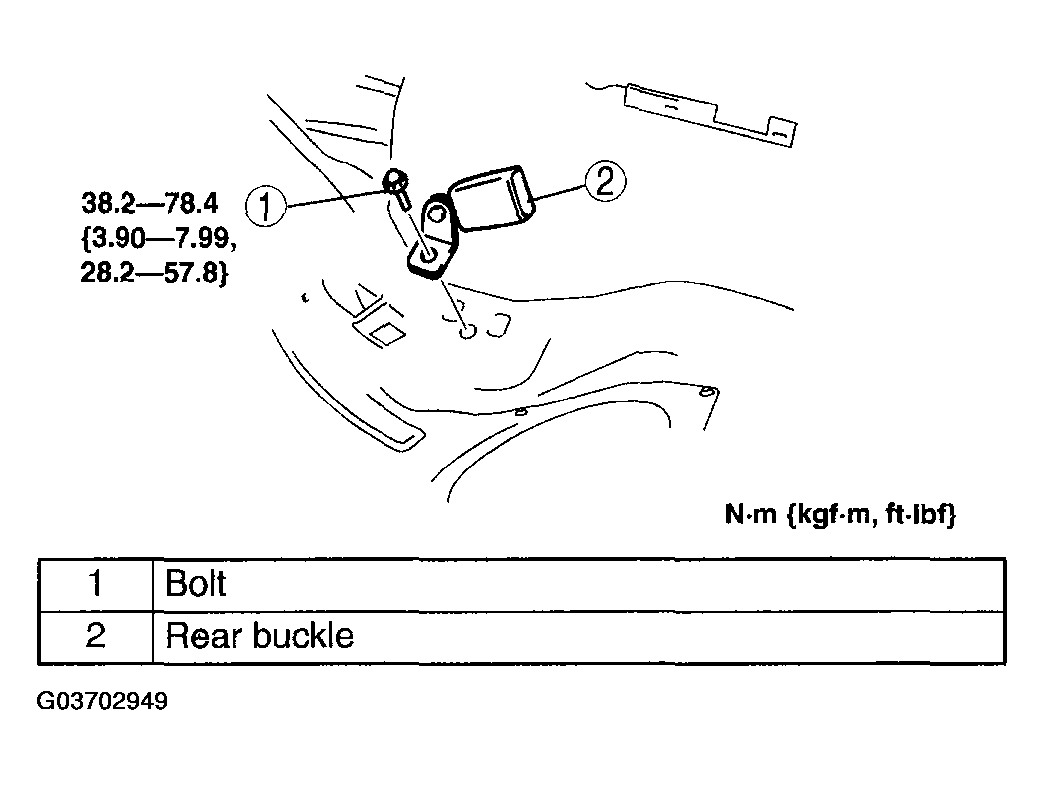

    Fig 1: Removal/Installation Steps Of Rear Buckle With Torque Specification
    G03702949Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
