Front Buckle Switch Inspection: Passenger-Side

  1. Disconnect the negative battery cable.
  2. Disconnect the buckle switch connector.
  3. Verify continuity as indicated in the table.
    • If not as indicated in the table, replace the front buckle.

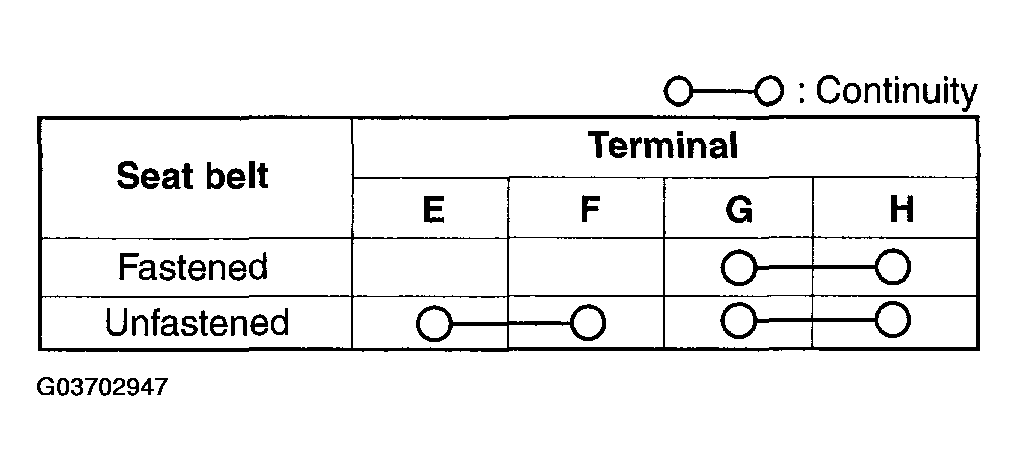

    Fig 1: Passenger Side (Front Buckle Switch) Continuity Chart
    G03702947Courtesy of MAZDA MOTORS CORP.

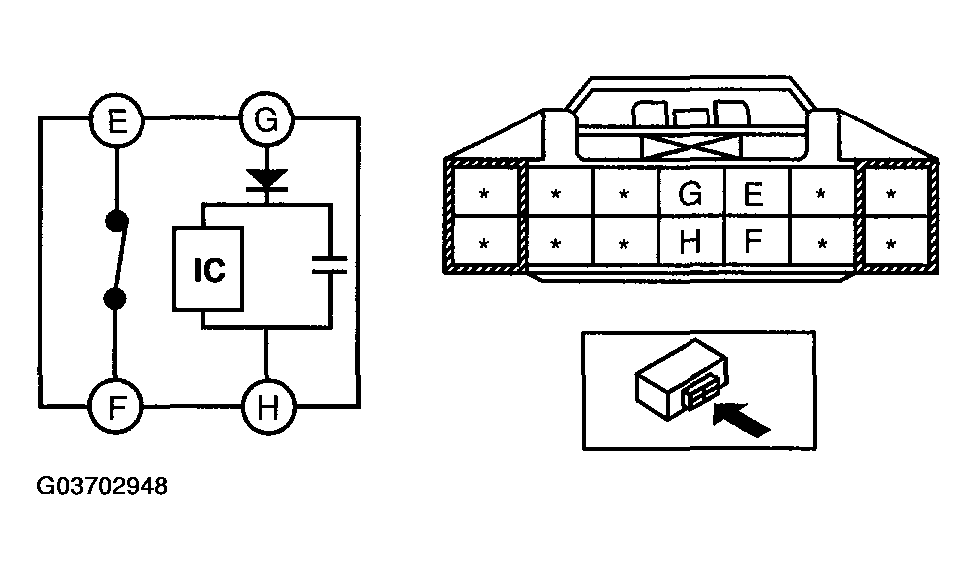

    Fig 2: Inspecting Passenger Side (Front Buckle Switch) Continuity
    G03702948Courtesy of MAZDA MOTORS CORP.
