TCM Connector End View
TCM Connector End View

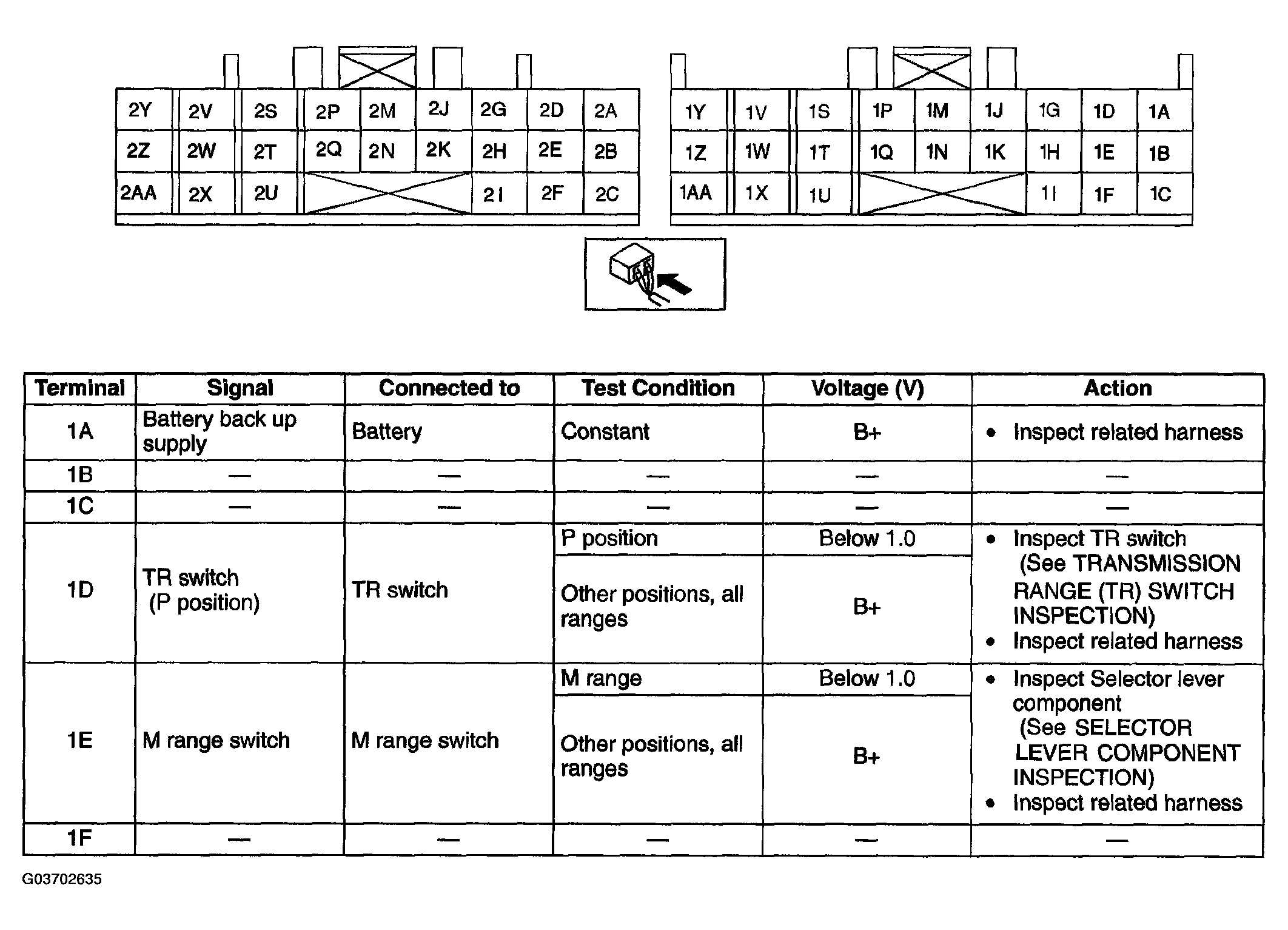

Fig 1: TCM Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
