Using the basic inspection

Perform the basic inspection procedure before symptom troubleshooting.
Perform each step in the order shown.
The reference column lists the location of the detailed procedure for each basic inspection.
Although inspections and adjustments are performed according to the reference column procedures, if the cause of the malfunction is discovered during basic inspection, continue the procedures as indicated in the action column.

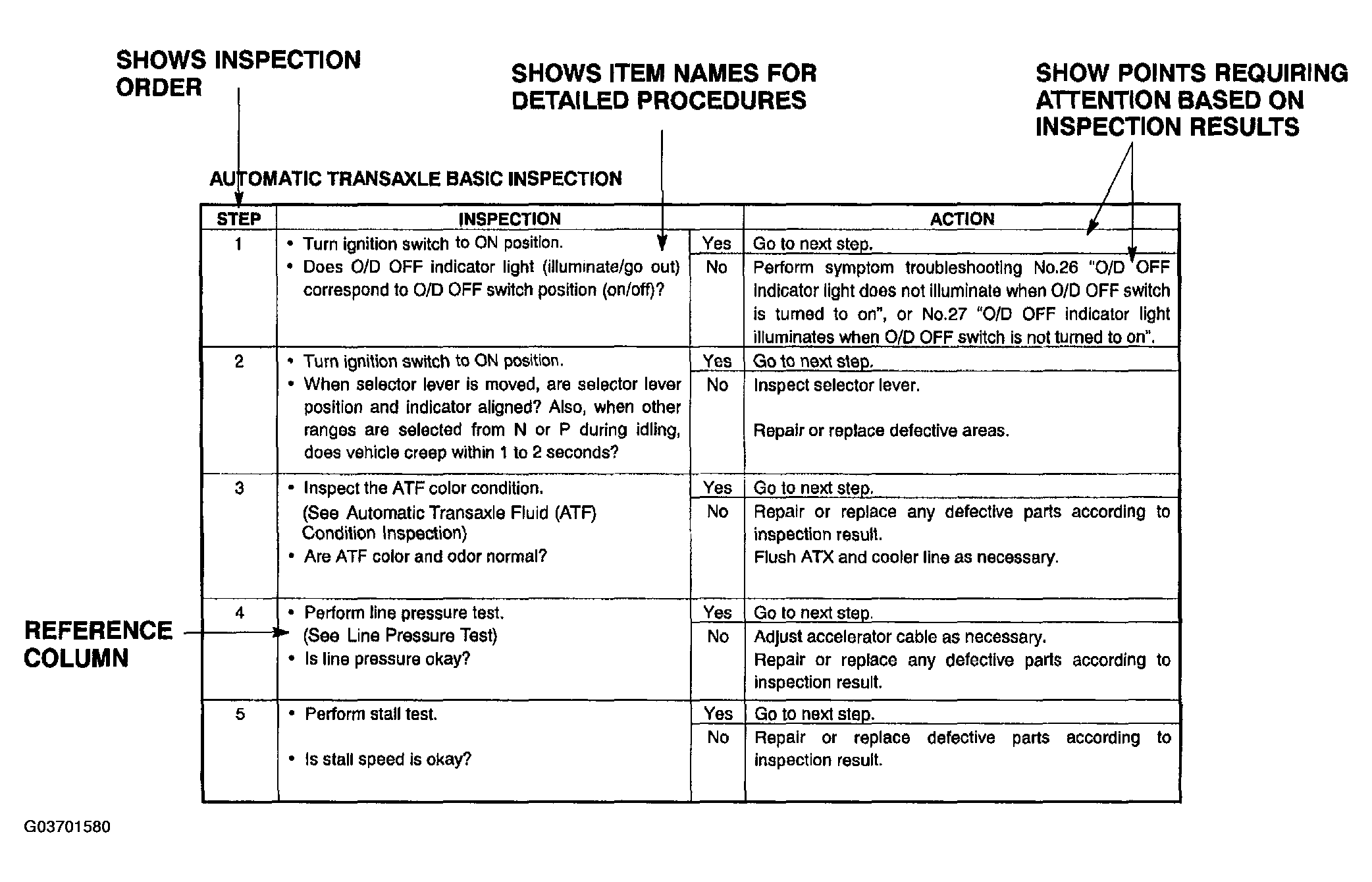

Fig 1: Inspecting Procedures
Courtesy of MAZDA MOTORS CORP.
