Front Buckle Removal/Installation

  1. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

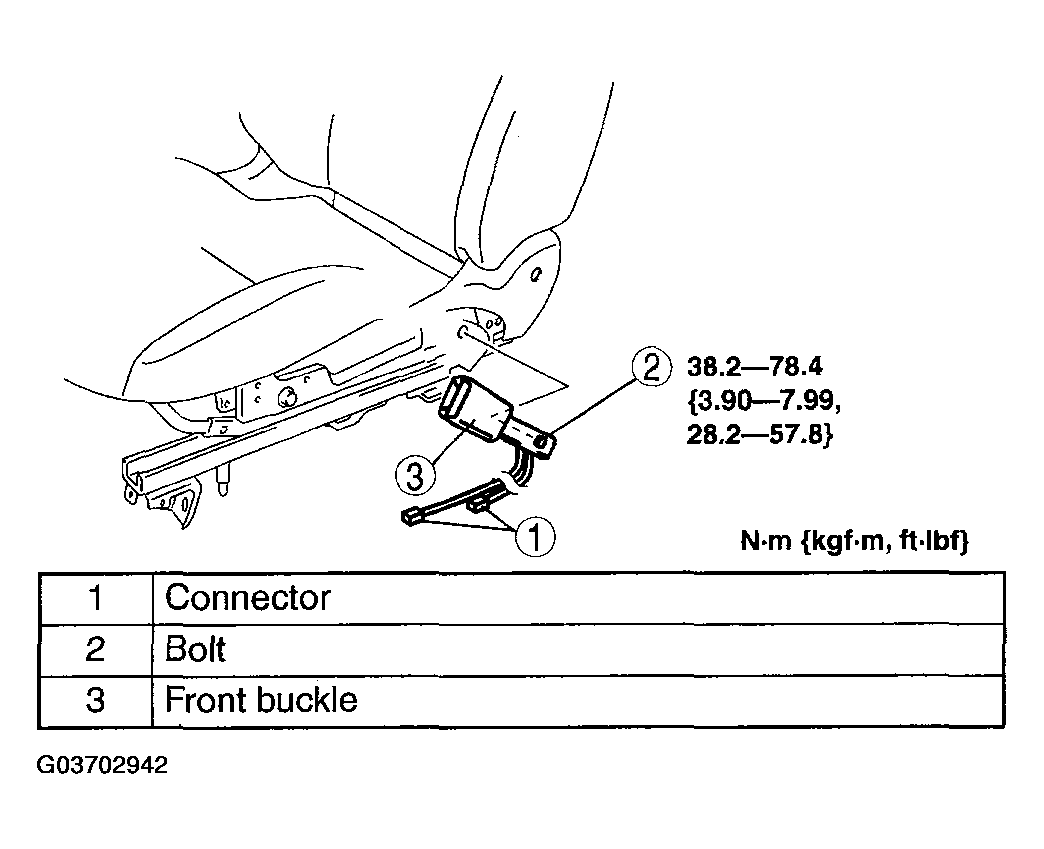

    Fig 1: Removal/Installation Steps Of Front Buckle With Torque Specification
    G03702942Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
