Technical Data [Engine Mechanical)
>>
Engine Technical Data
>>
Notes
Engine Technical Data: Notes

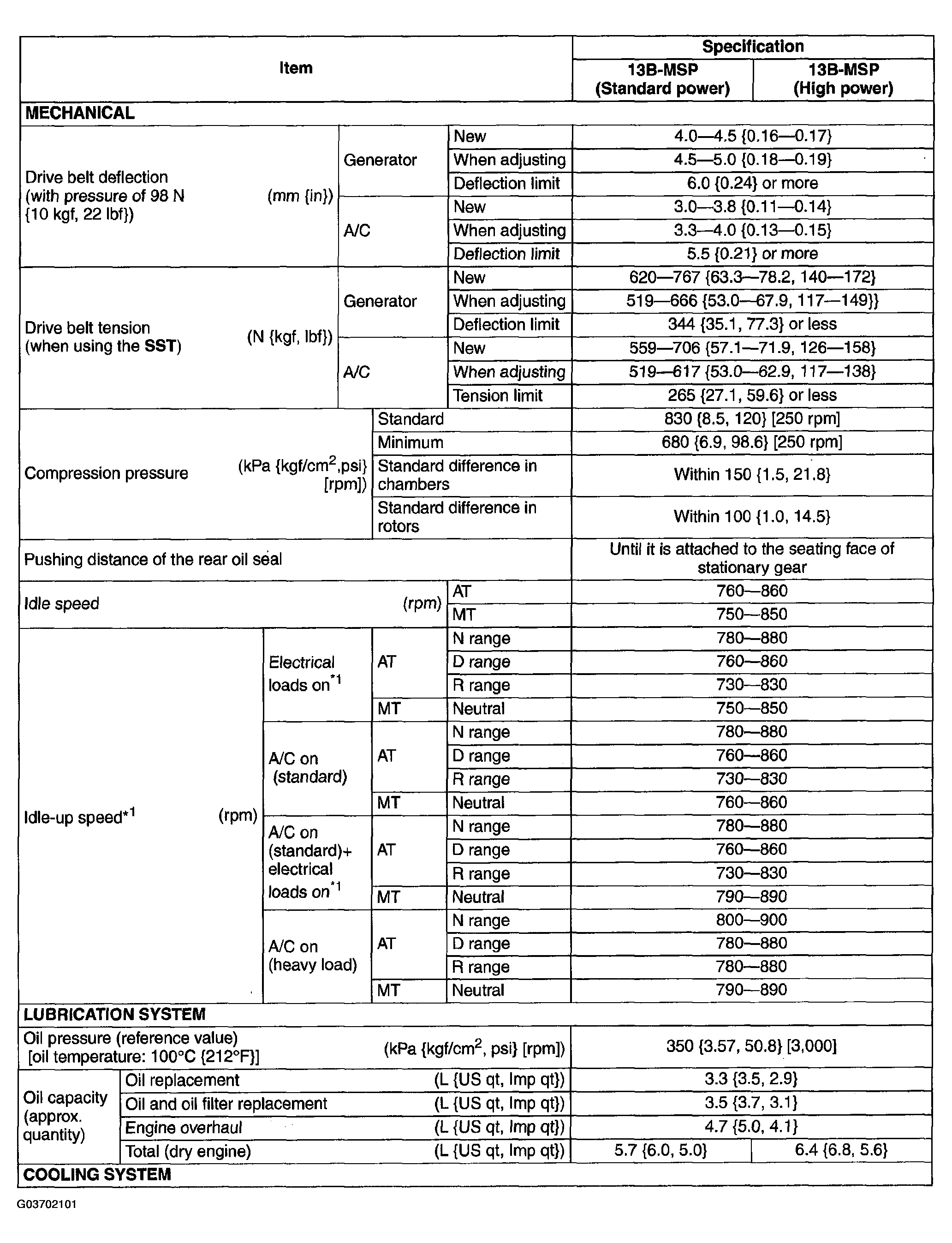

Fig 1: Engine Technical Data (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

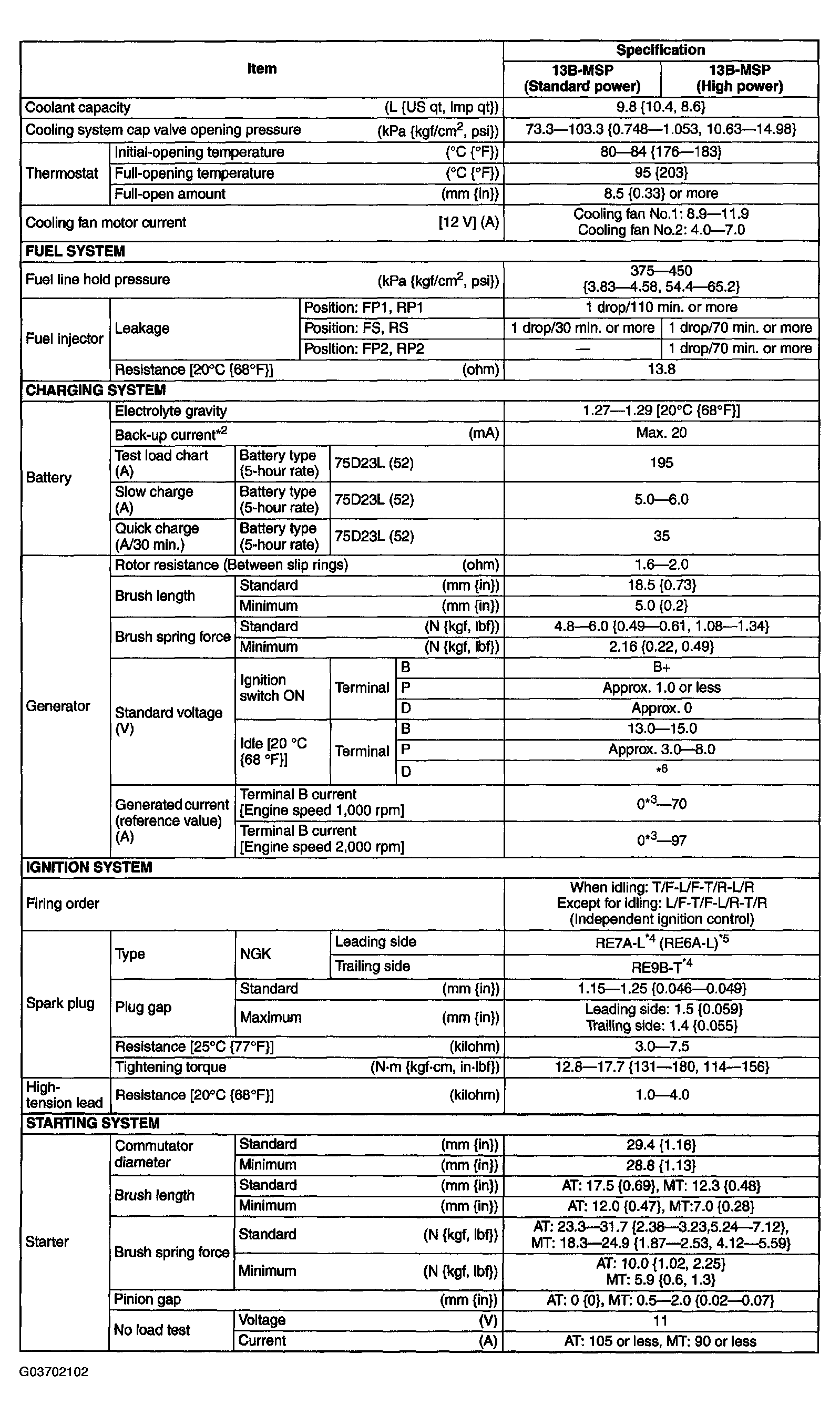

Fig 2: Engine Technical Data (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
