Steering Shaft Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

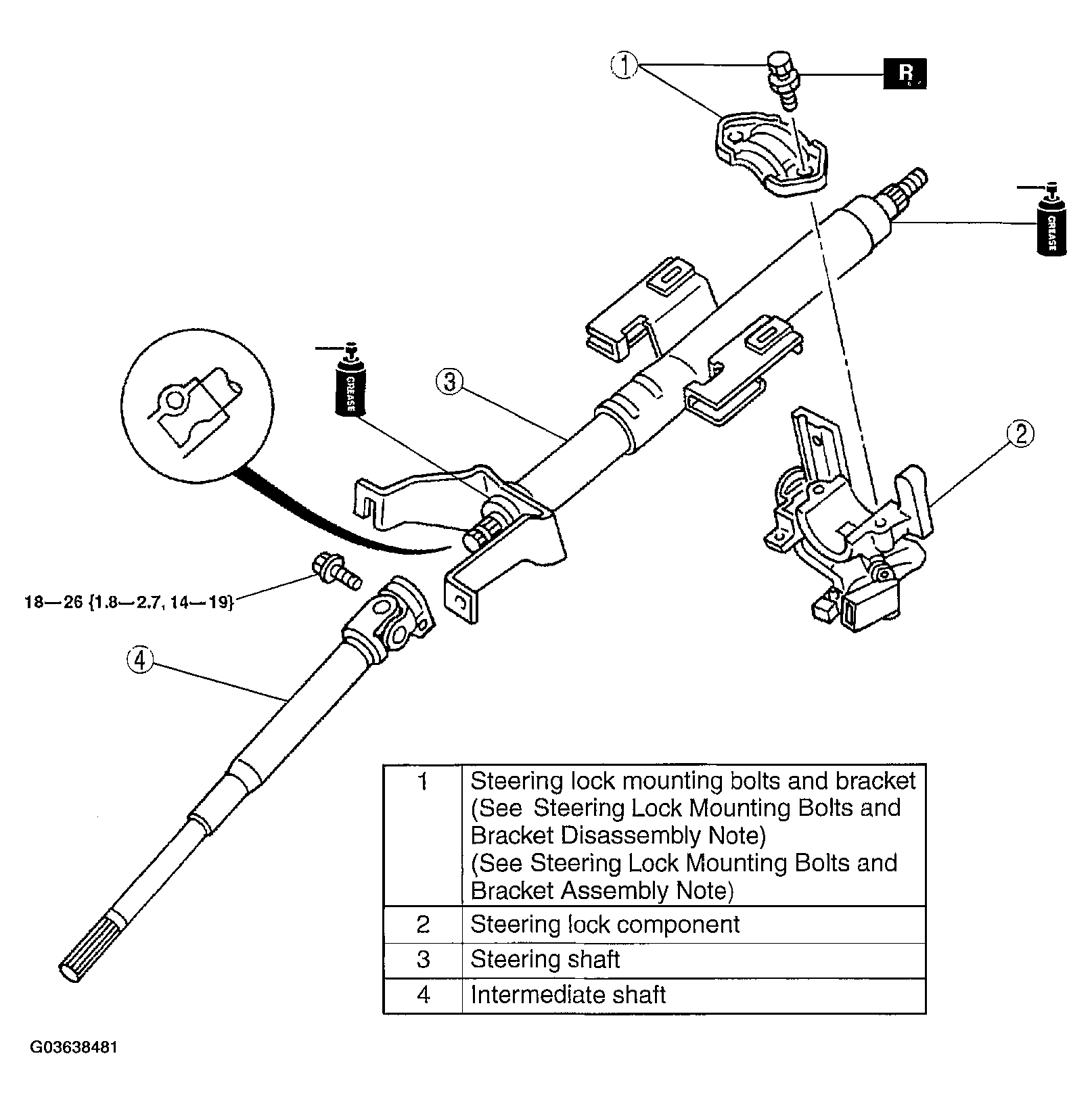

    Fig 1: Disassembling Steering Shaft
    G03638481Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
