Control System Device And Control Relationship Chart [BP With TC]
>>
Monitoring System
Monitoring System

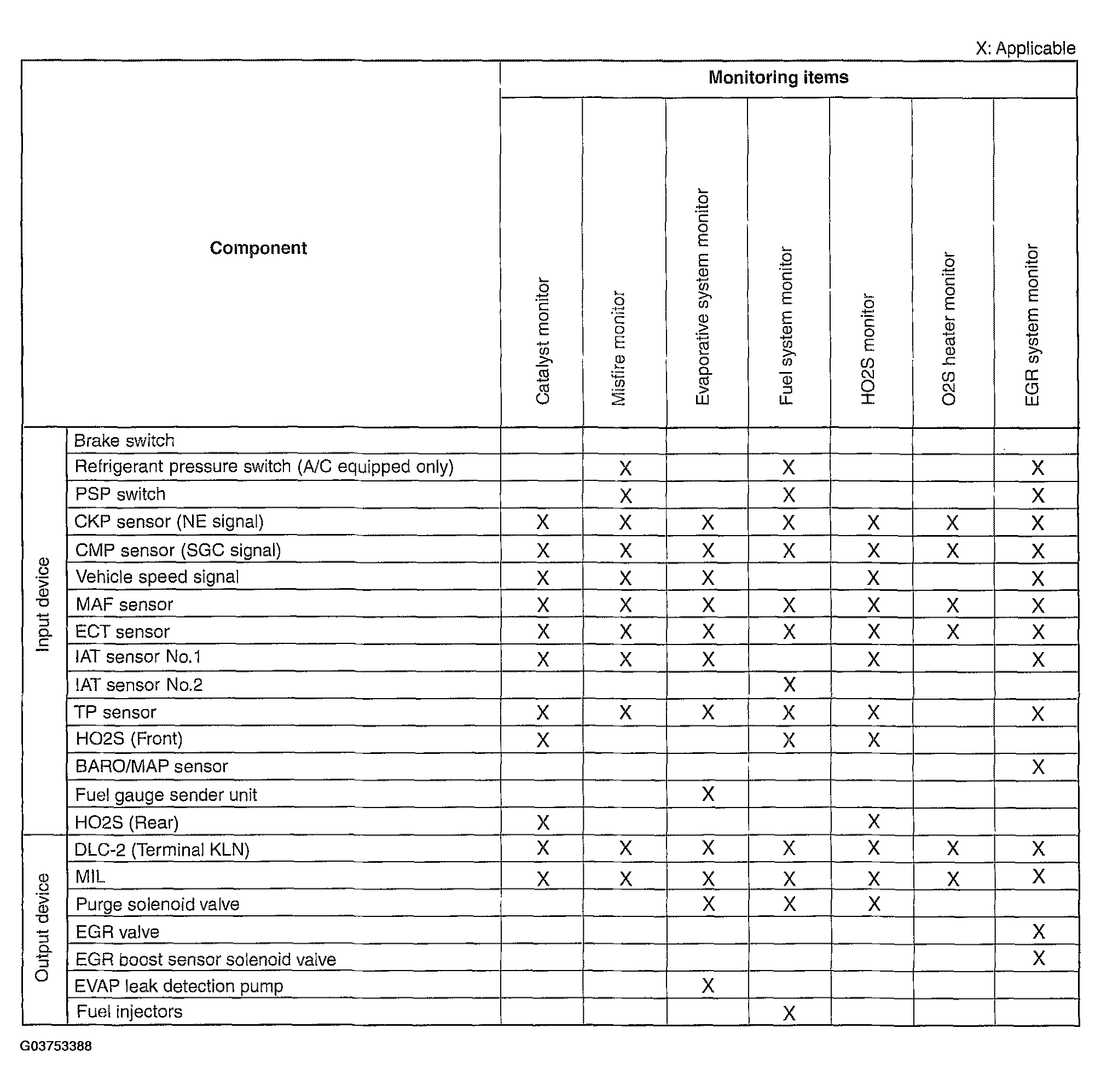

Fig 1: Control System Device And Control Relationship Chart - Monitoring System [BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
