Home >> Mazda >> 2005 >> MX-5 Miata Mazdaspeed >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System BP, BP With TC] >> DTC U0302 >> Notes

DTC U0302: Notes

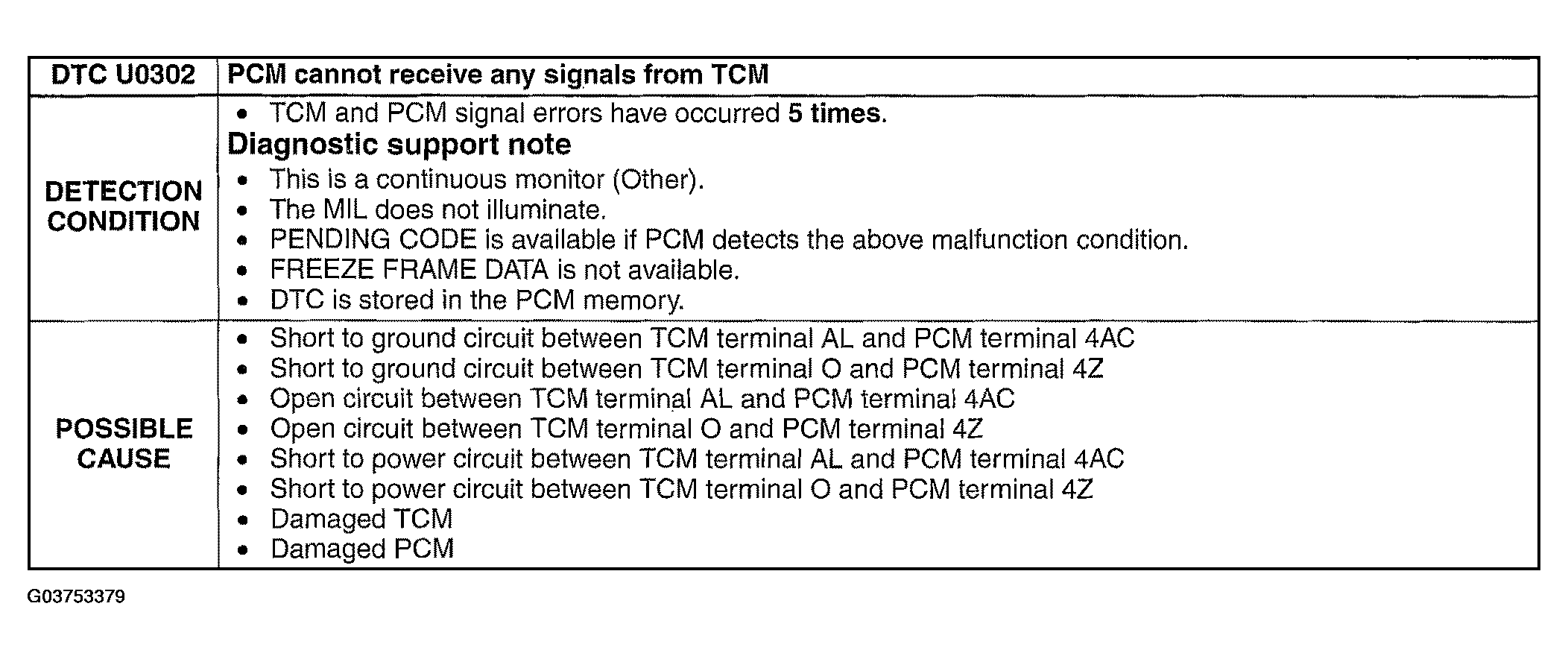

Fig 1: DTC U0302 Detection Condition And Possible Cause

G03753379

Courtesy of MAZDA MOTORS CORP.
