DTC P2187
>>
Notes
DTC P2187: Notes

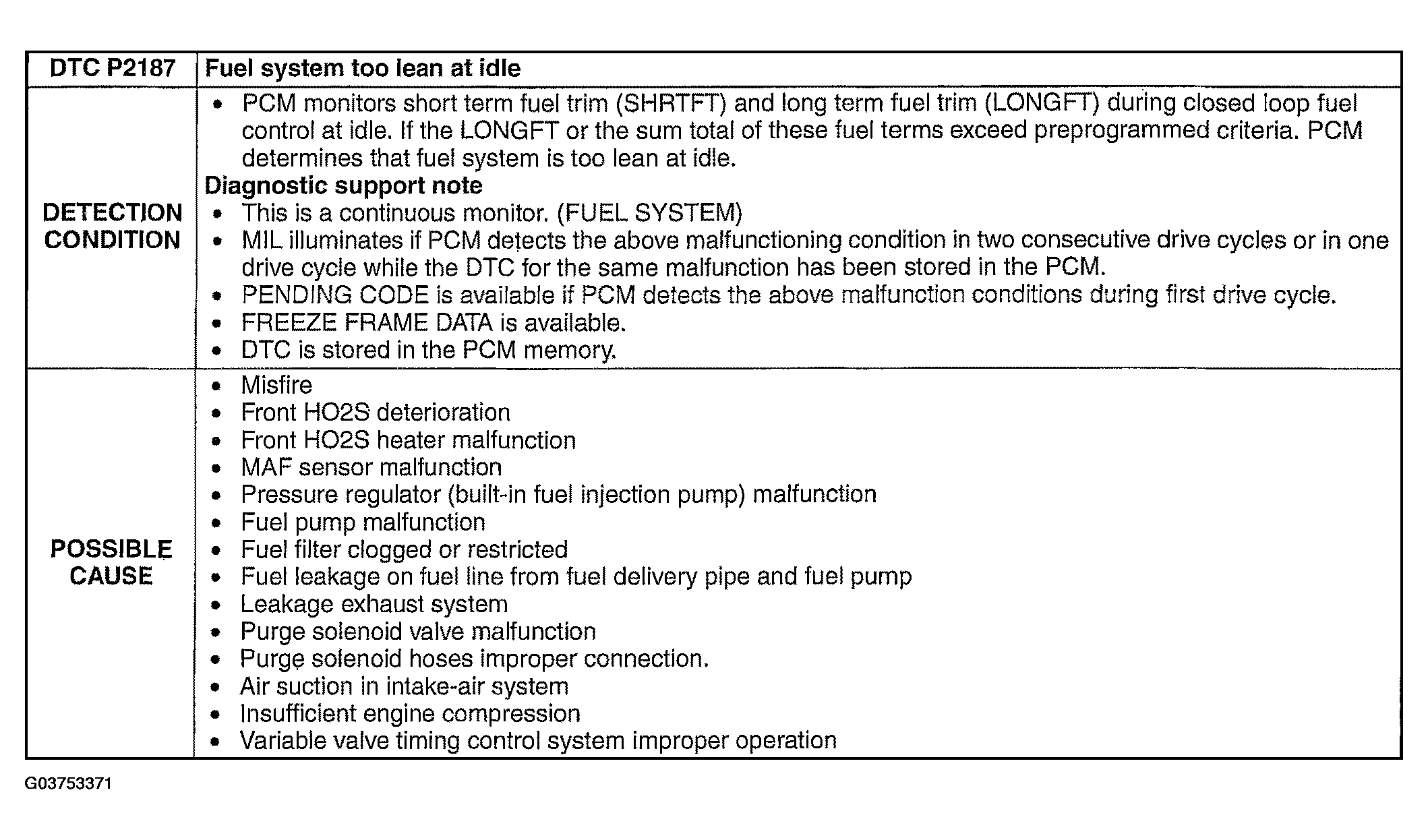

Fig 1: DTC P2187 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
