DTC P2004
>>
Notes
DTC P2004: Notes

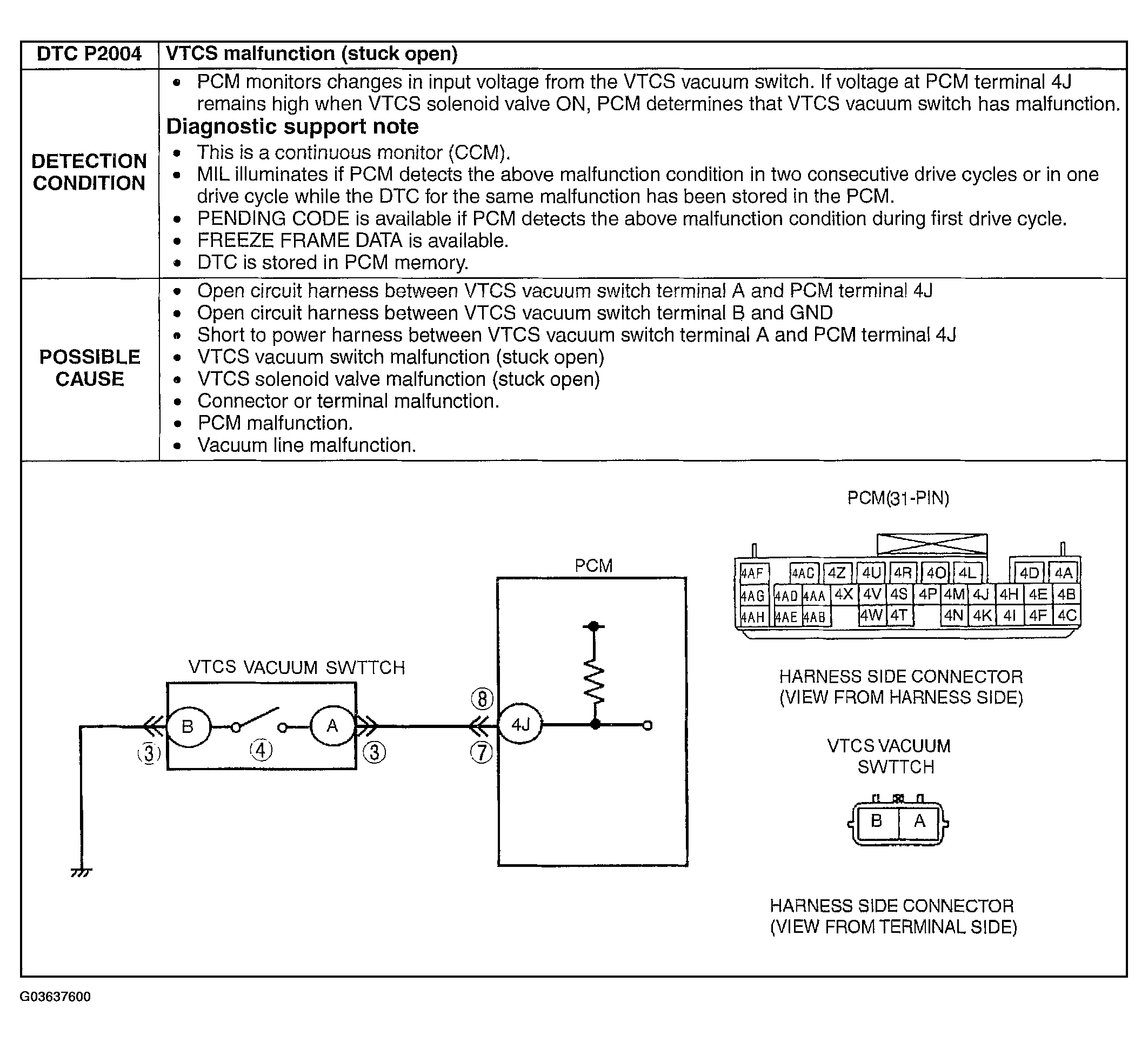

Fig 1: DTC P2004 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
