DTC P1602
>>
Notes
DTC P1602: Notes

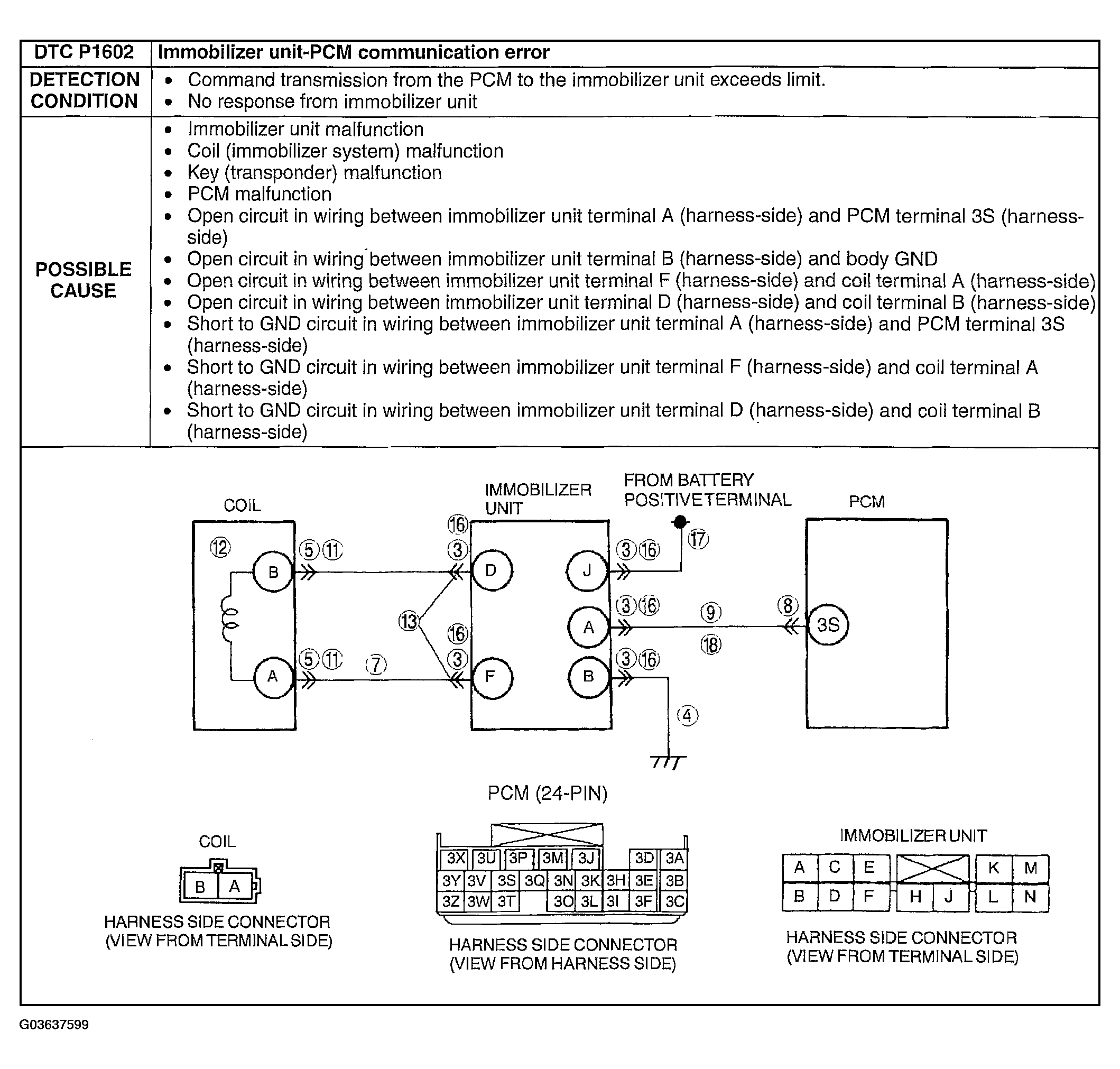

Fig 1: DTC P1602 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
