Home >> Mazda >> 2005 >> MX-5 Miata Mazdaspeed >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System BP, BP With TC] >> DTC P0500 >> Notes

DTC P0500: Notes

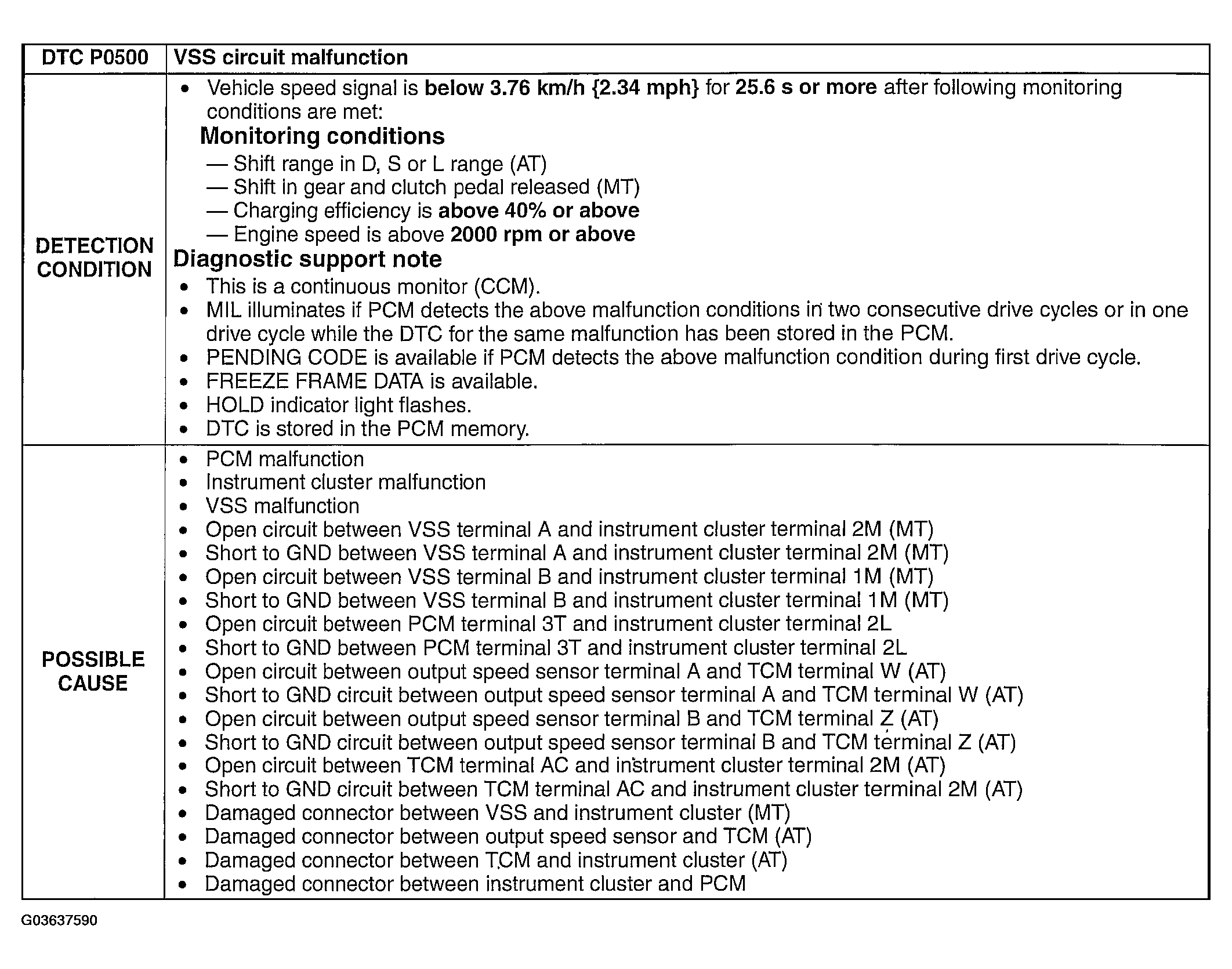

Fig 1: DTC P0500 [BP, BP With TC] Detection Condition And Possible Cause (1 Of 2)
G03637590Courtesy of MAZDA MOTORS CORP.

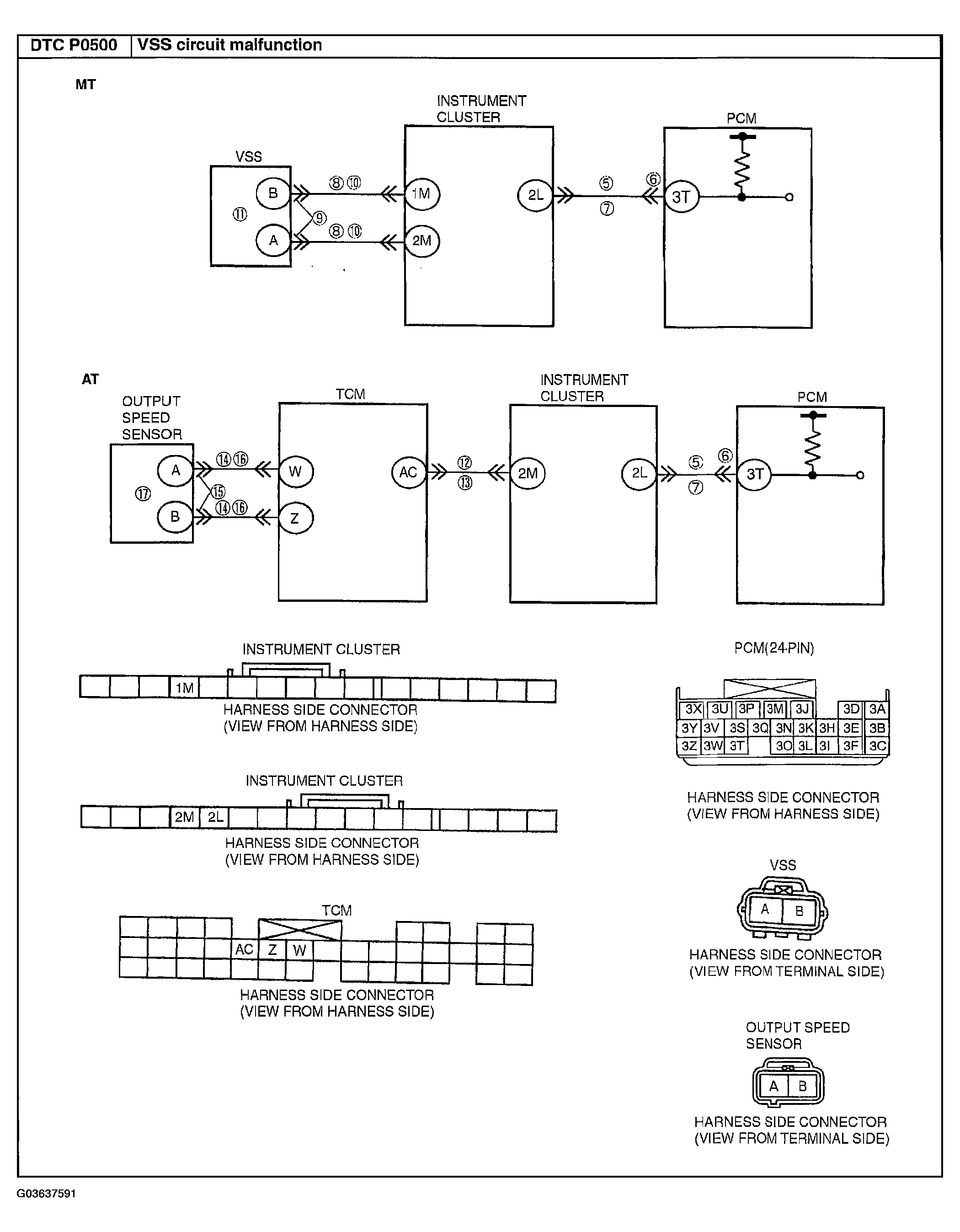

Fig 2: DTC P0500 [BP, BP With TC] Detection Condition And Possible Cause (2 Of 2)
G03637591Courtesy of MAZDA MOTORS CORP.
