DTC P0401
>>
Notes
DTC P0401: Notes

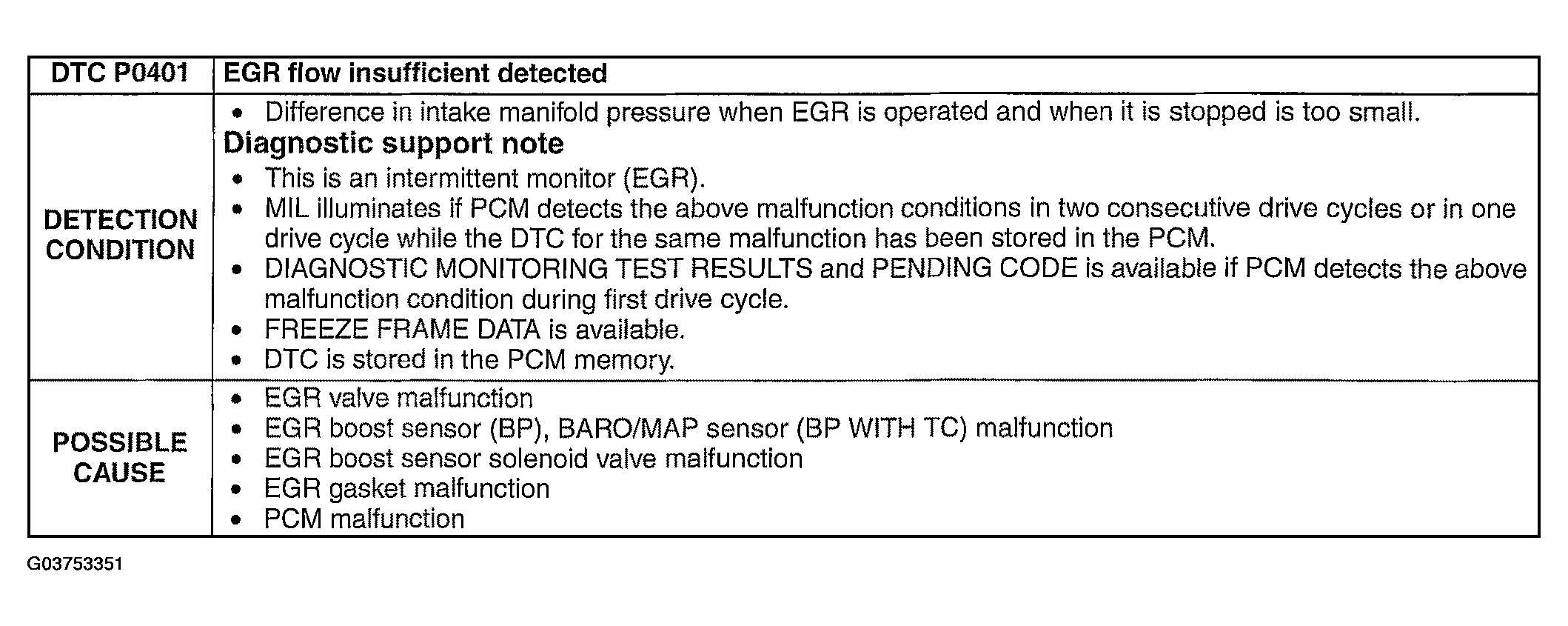

Fig 1: DTC P0401 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
