On-Board Diagnostic [Engine Control System BP, BP With TC]
>>
DTC P0300
>>
Notes
DTC P0300: Notes

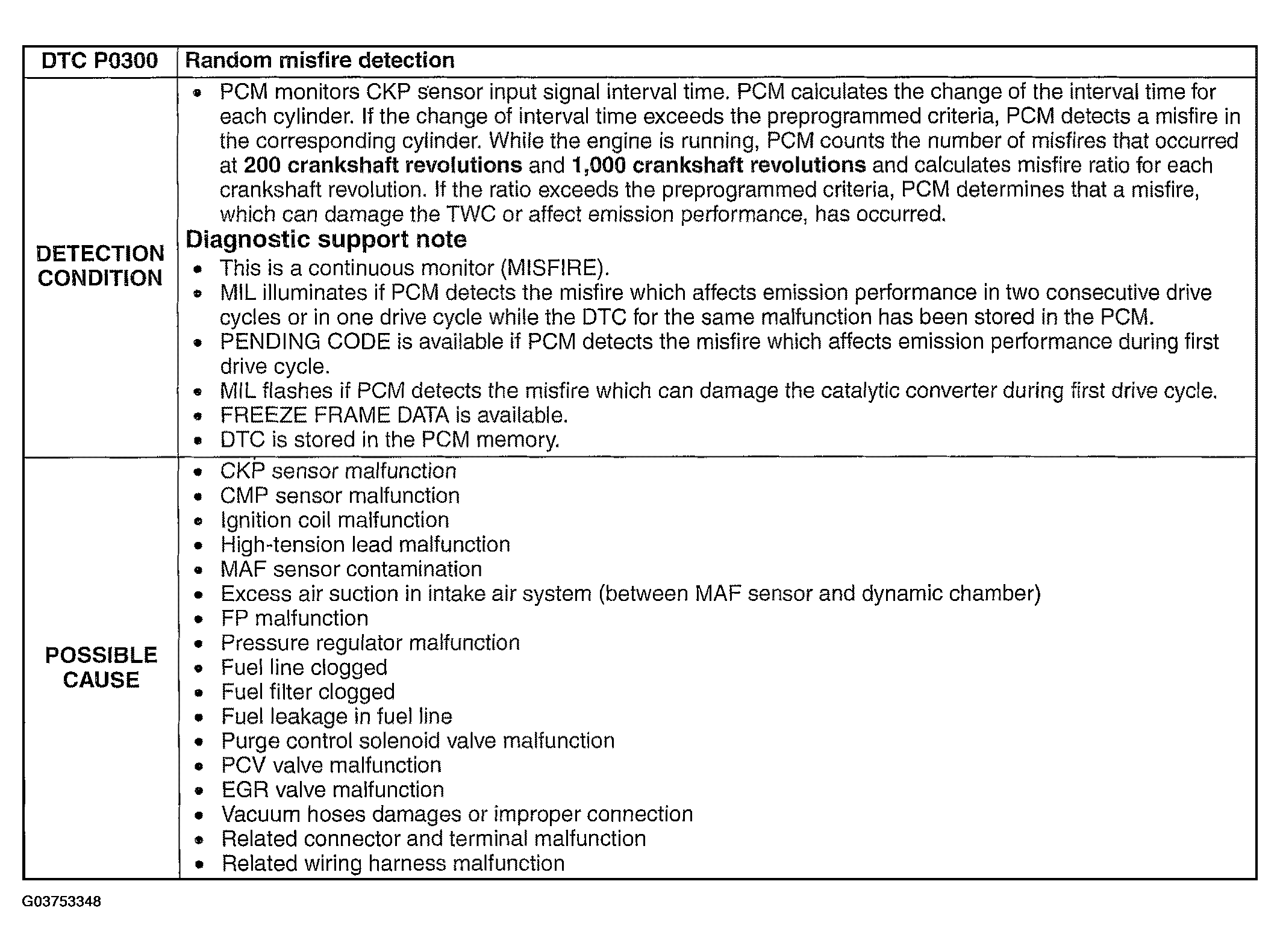

Fig 1: DTC P0300 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
