DTC P0139
>>
Notes
DTC P0139: Notes

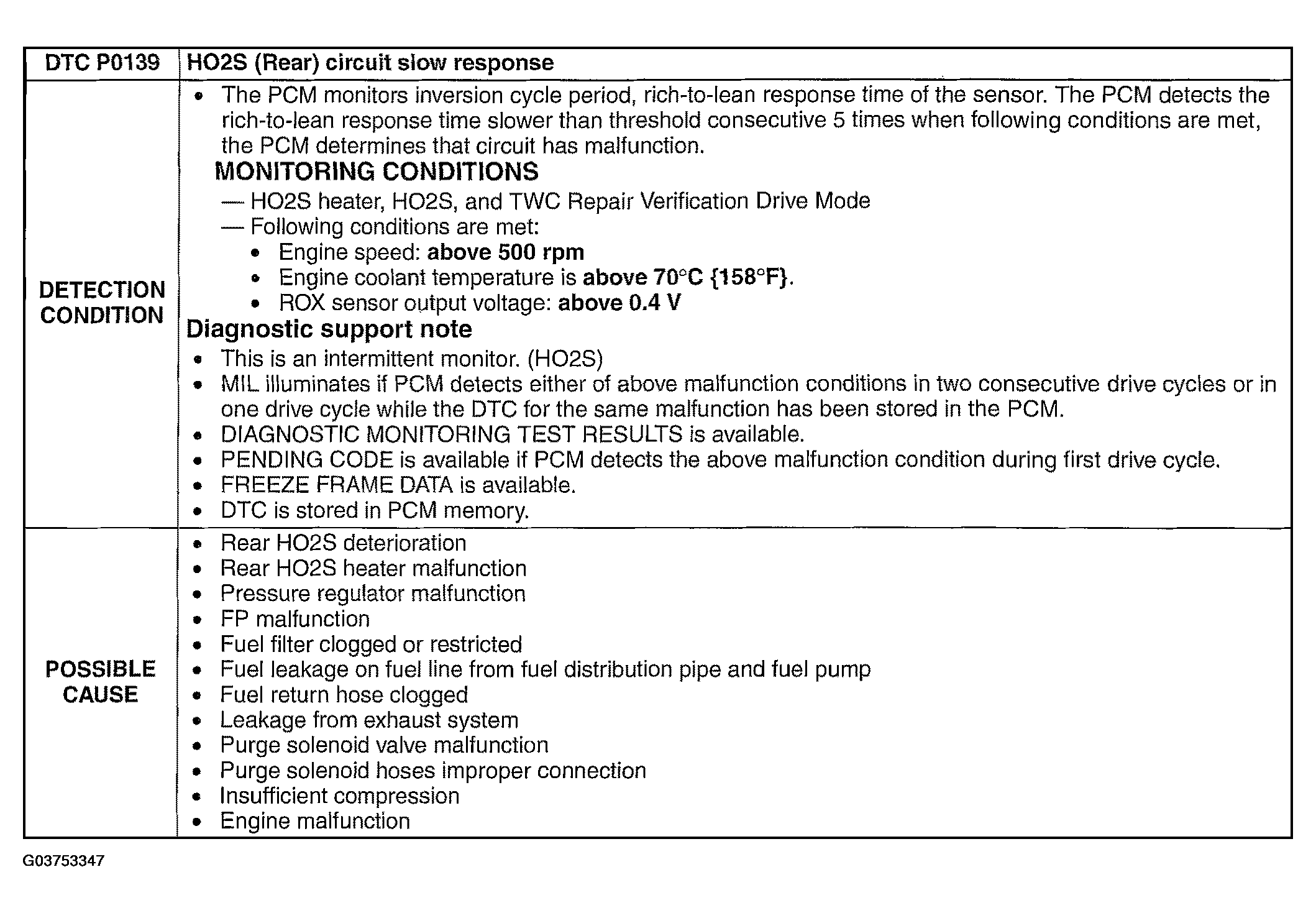

Fig 1: DTC P0139 [BP, BP WITH TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
