On-Board Diagnostic [Engine Control System BP, BP With TC]
>>
DTC P0133
>>
Notes
DTC P0133: Notes

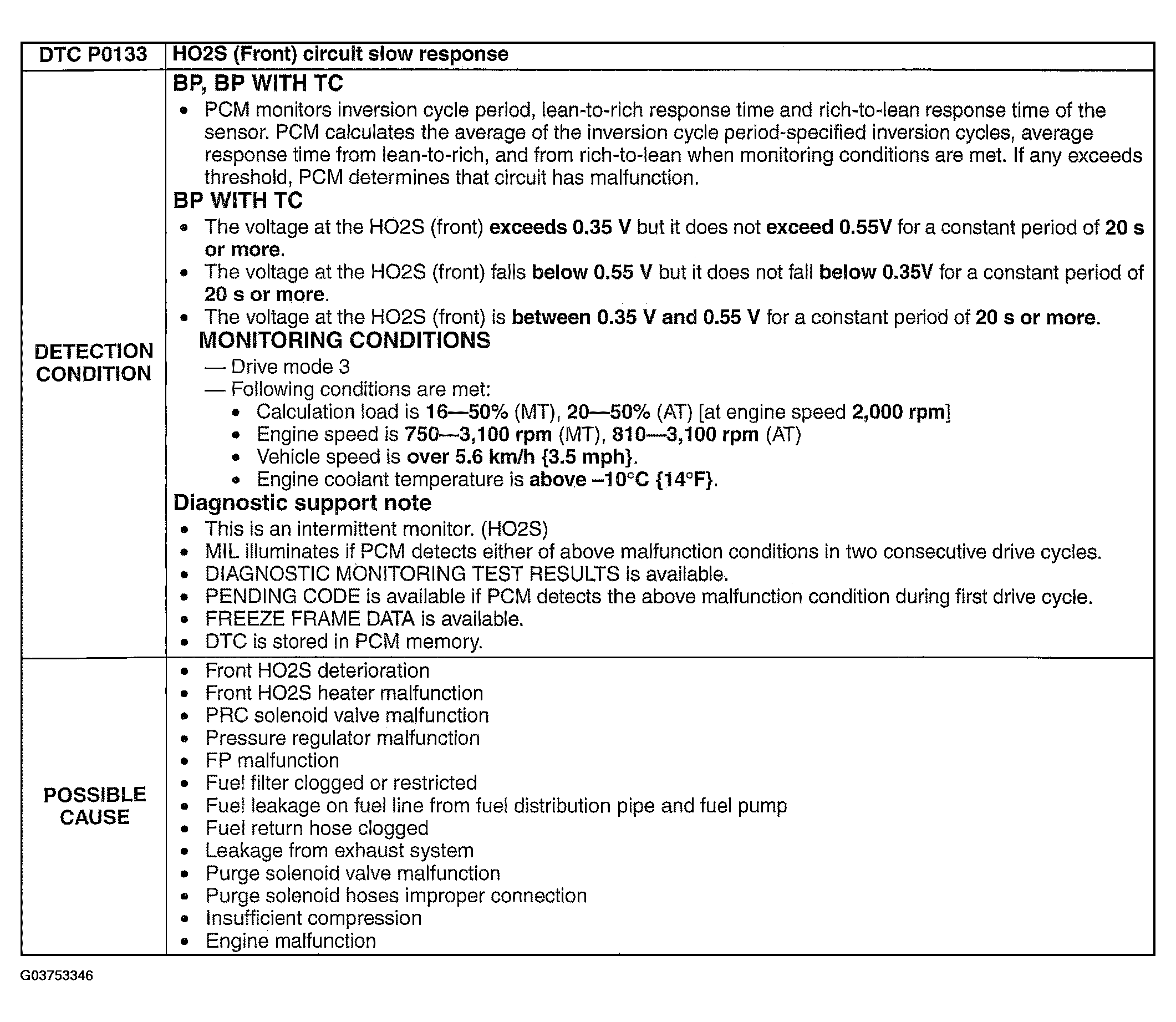

Fig 1: DTC P0133 [BP, BP WITH TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
