DTC P0117
>>
Notes
DTC P0117: Notes

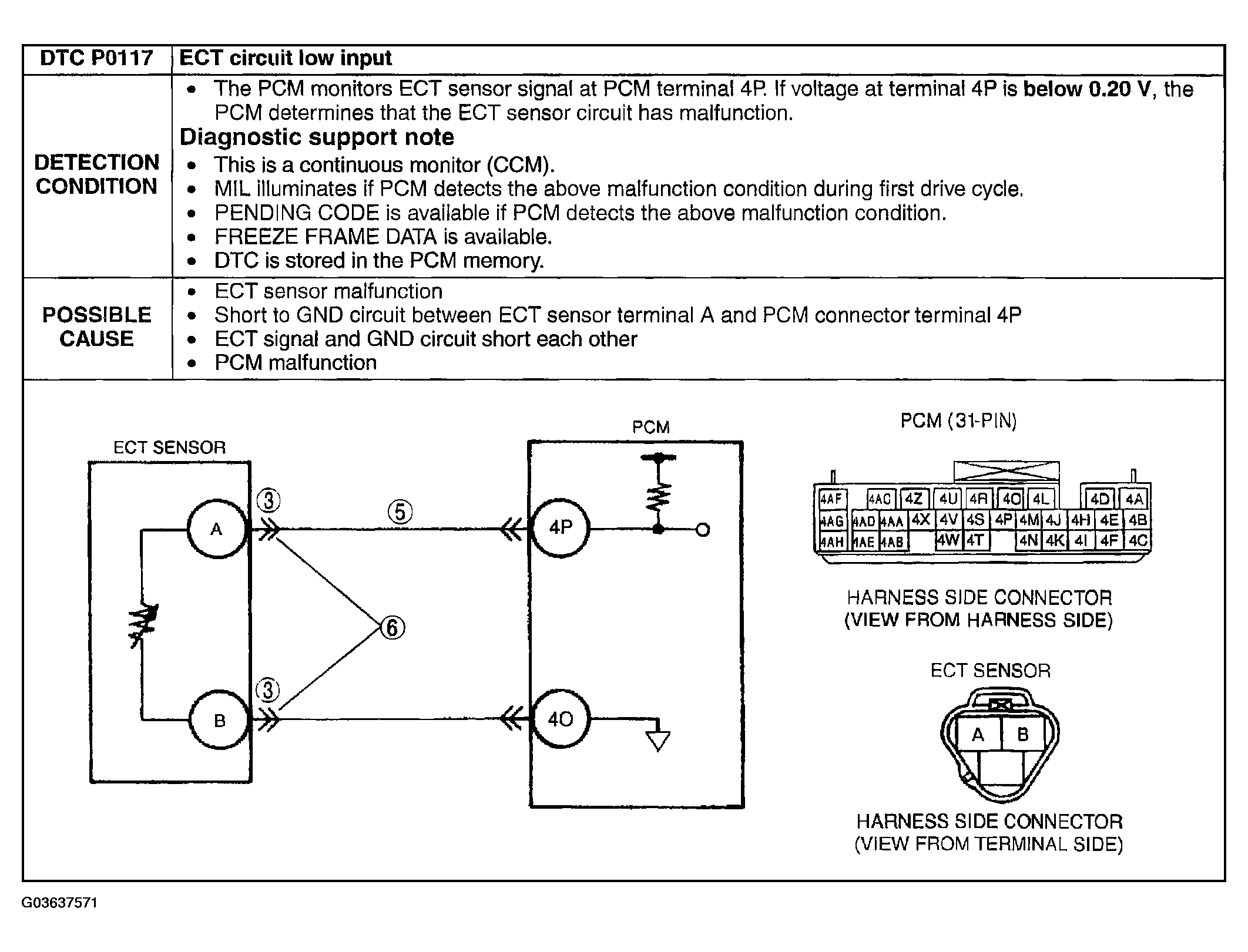

Fig 1: DTC P0117 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
