Engine speed signal

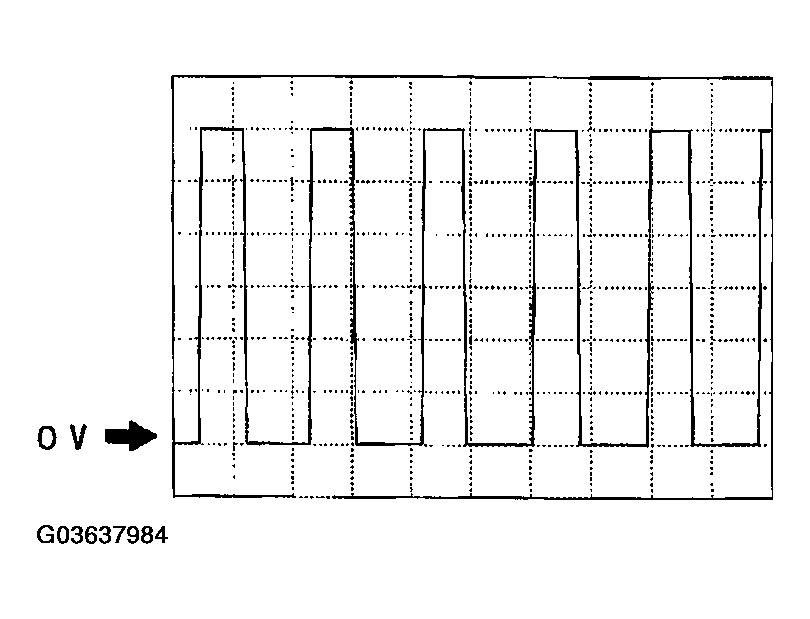

Fig 1: Engine Speed Signal - Oscilloscope Graph

G03637984

Courtesy of MAZDA MOTORS CORP.

PCM terminal: 3O(+) <--> 4A(-)
Oscilloscope setting: 2.0 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition: Idling
