Battery Removal/Installation

  1. Remove in the order indicated in the table.

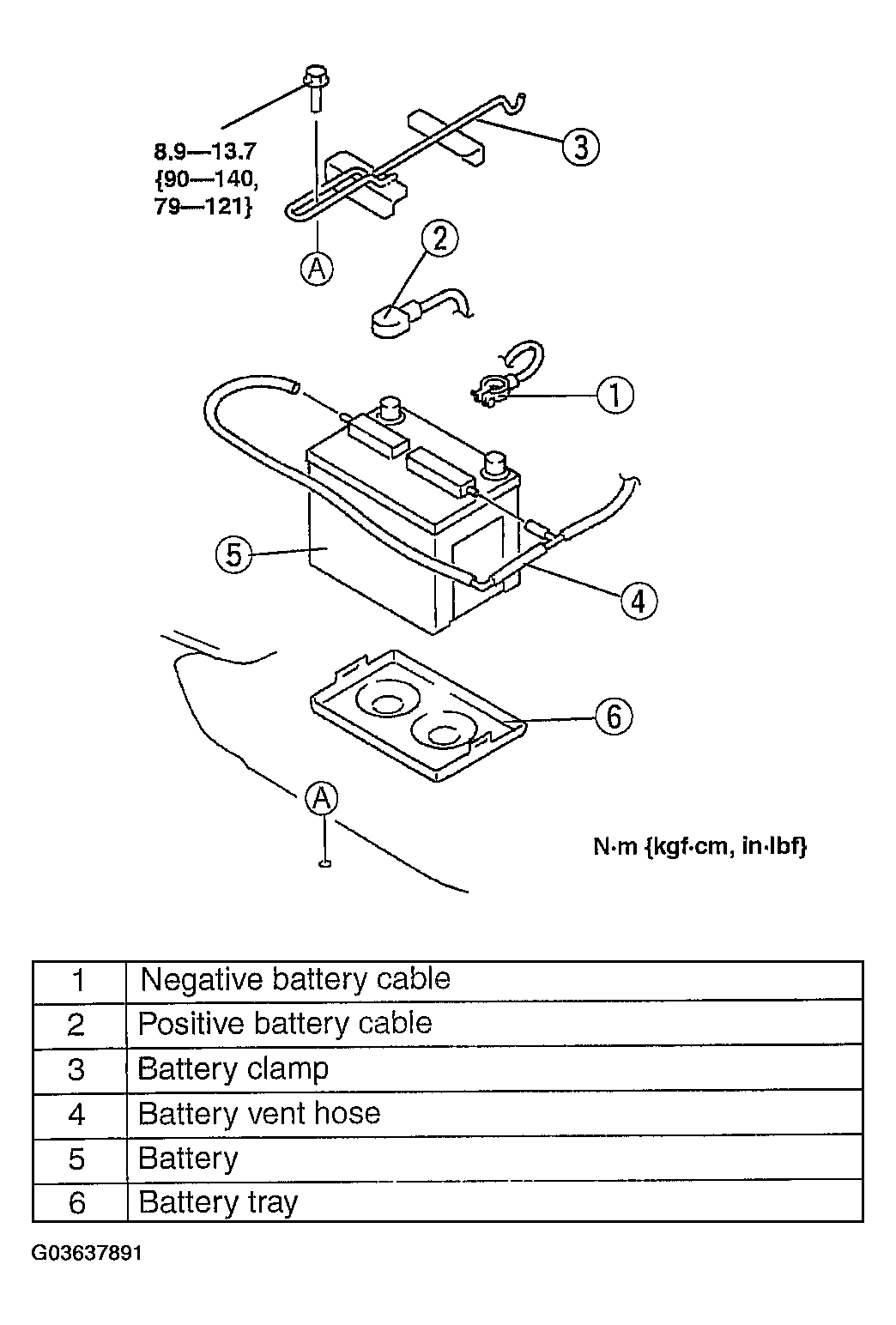

    Fig 1: Replacement Components Of Battery With Torque Specifications
    G03637891Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
