Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

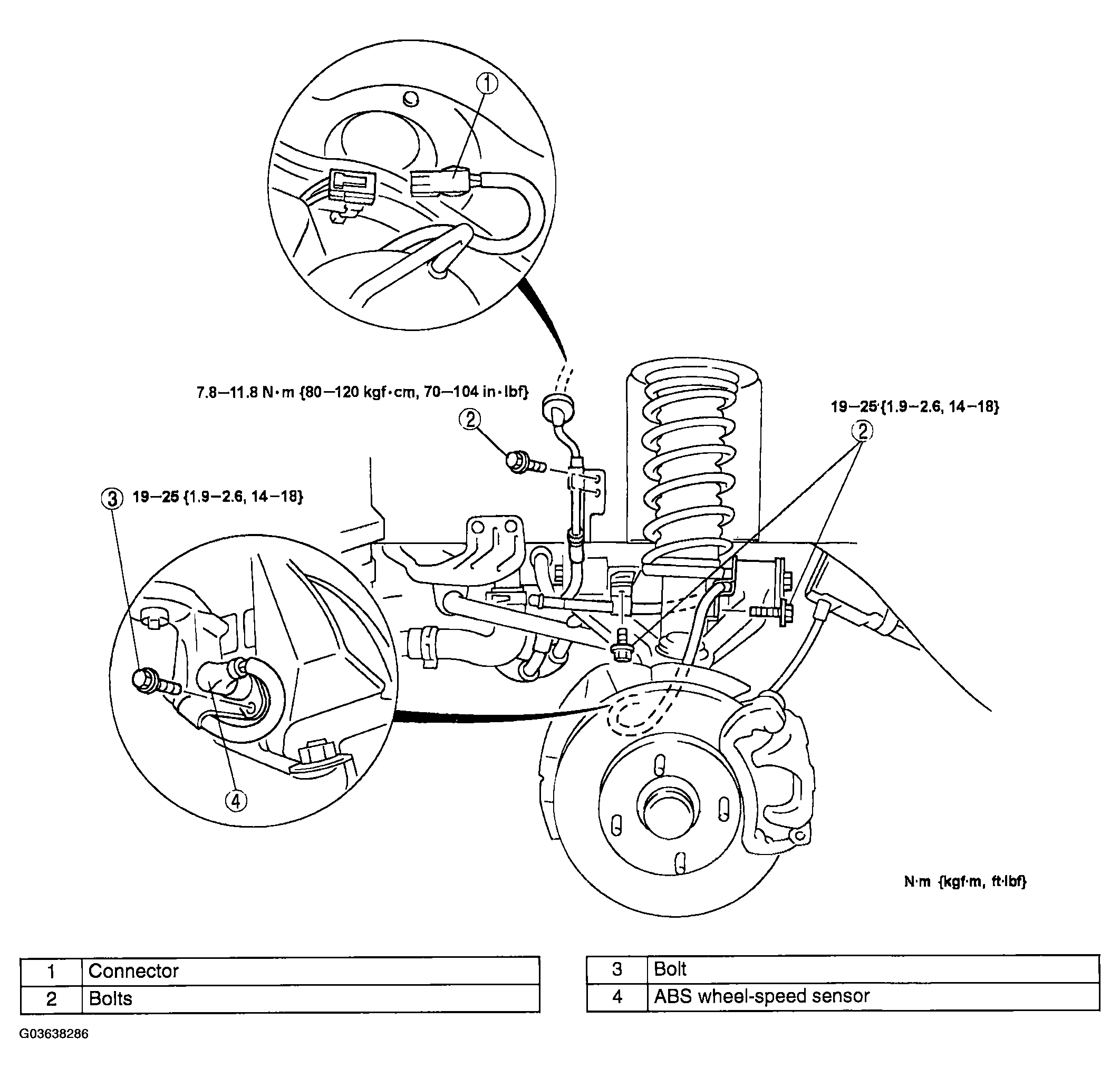

    Fig 1: Exploded View Of Front ABS Wheel-Speed Sensor & Torque Specifications
    G03638286Courtesy of MAZDA MOTORS CORP.
