MX-5 Miata Mazdaspeed
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Abs System Diagram
Abs System Diagram

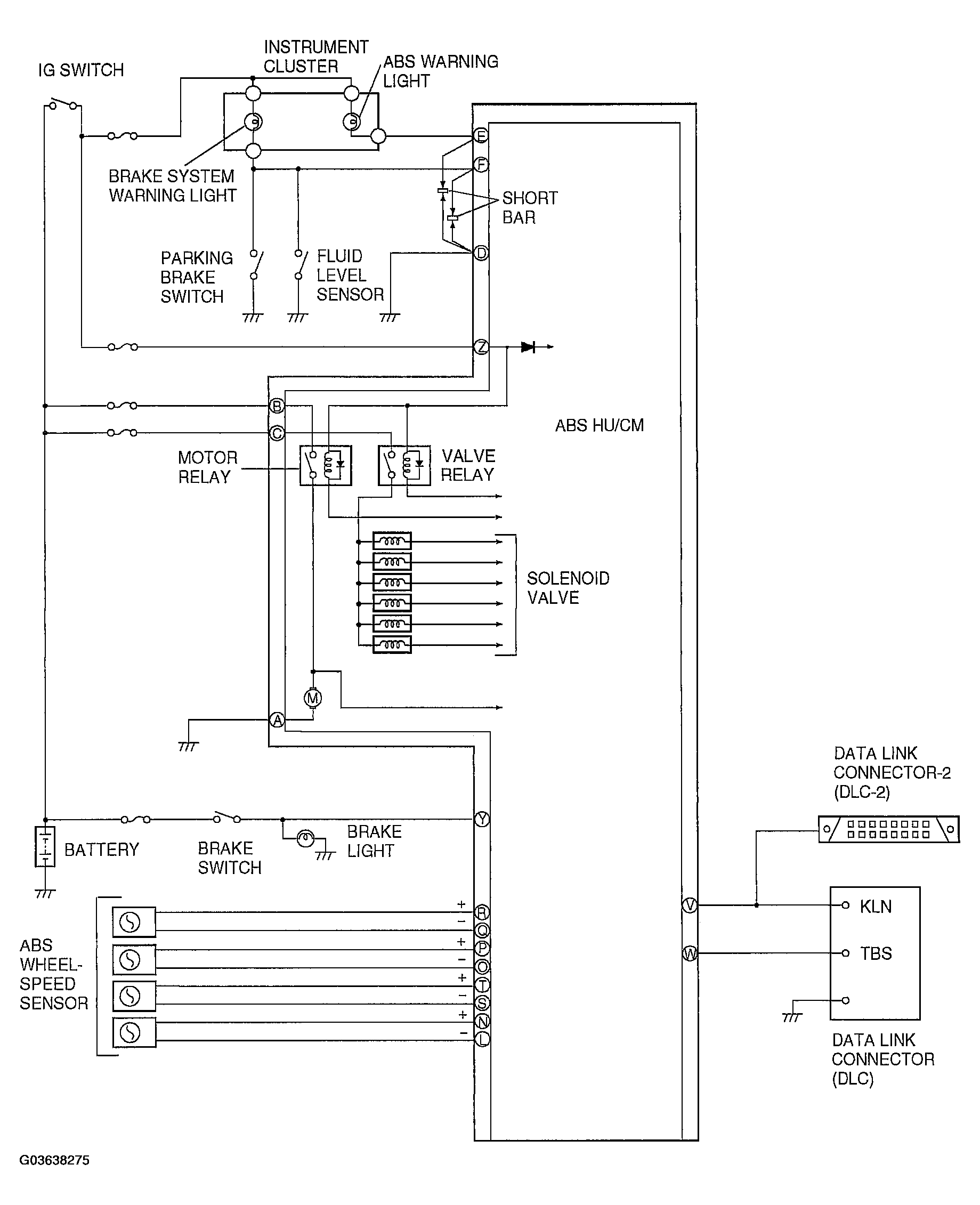

Fig 1: ABS System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
