Abs HU/Cm Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

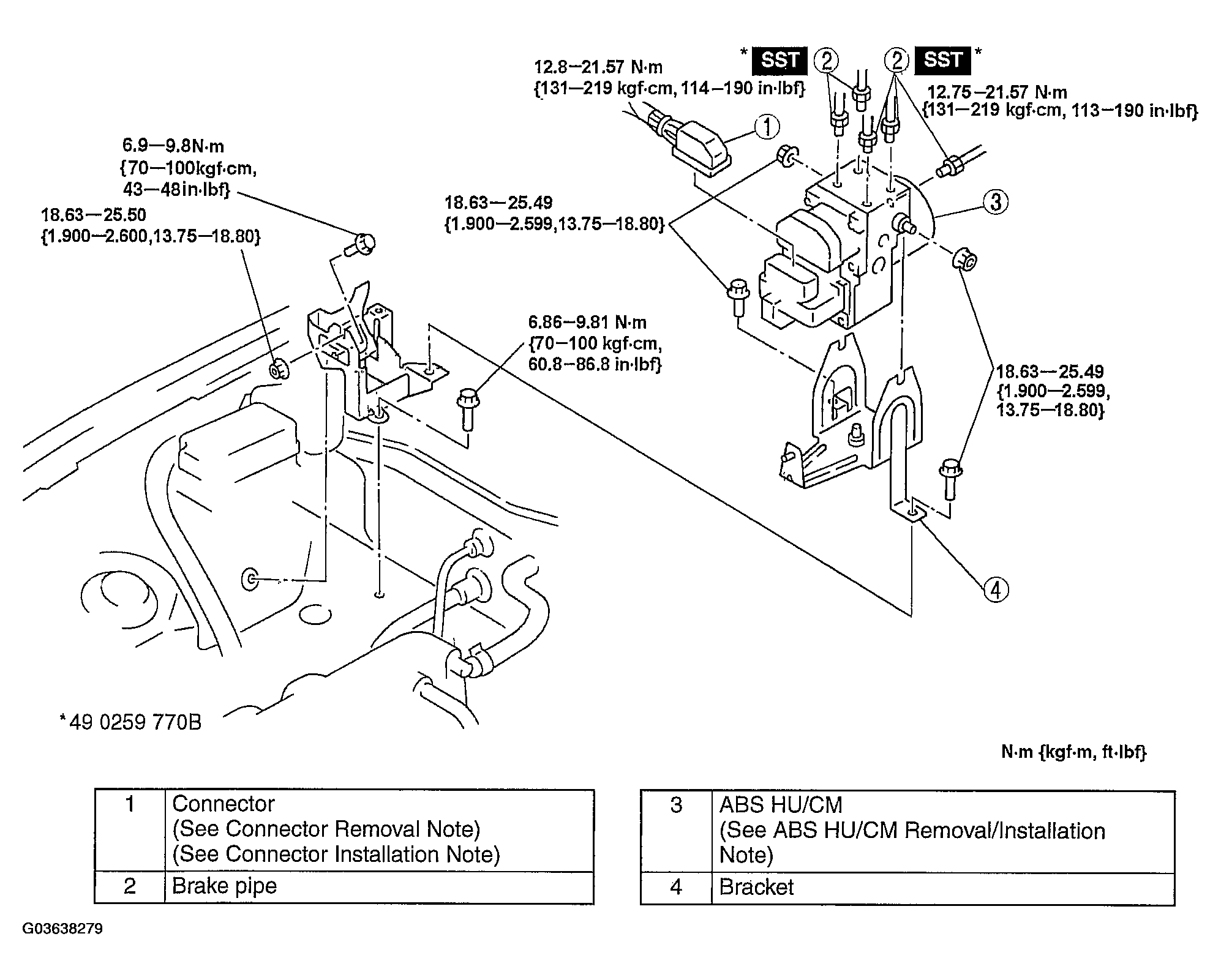

    Fig 1: Exploded View Of ABS HU/CM & Torque Specifications
    G03638279Courtesy of MAZDA MOTORS CORP.
