Power Outside Mirror Switch Inspection

Remove the power outside mirror switch. (See POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION .)
Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
- If not as specified, replace the power outside mirror switch.

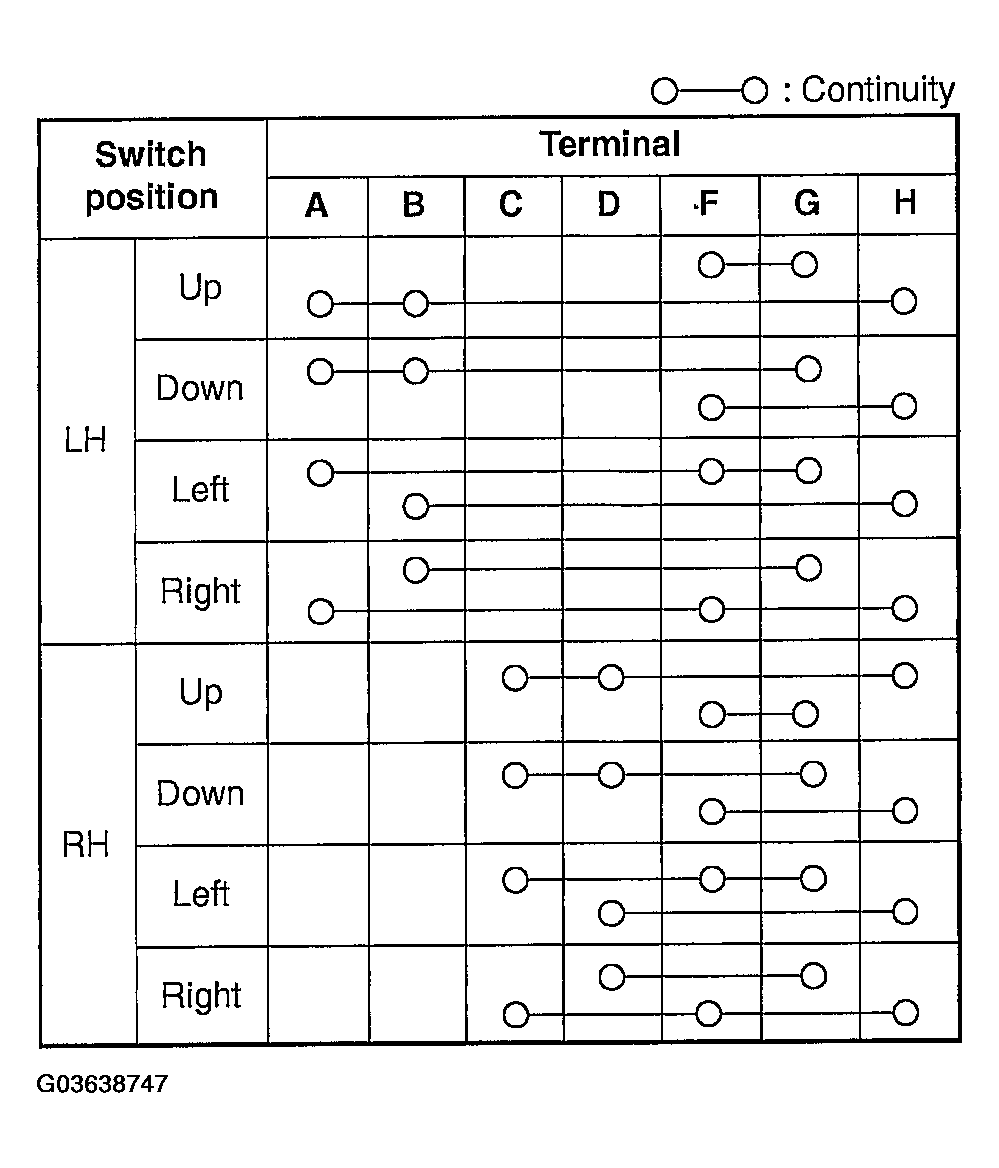

Fig 1: Power Outside Mirror Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

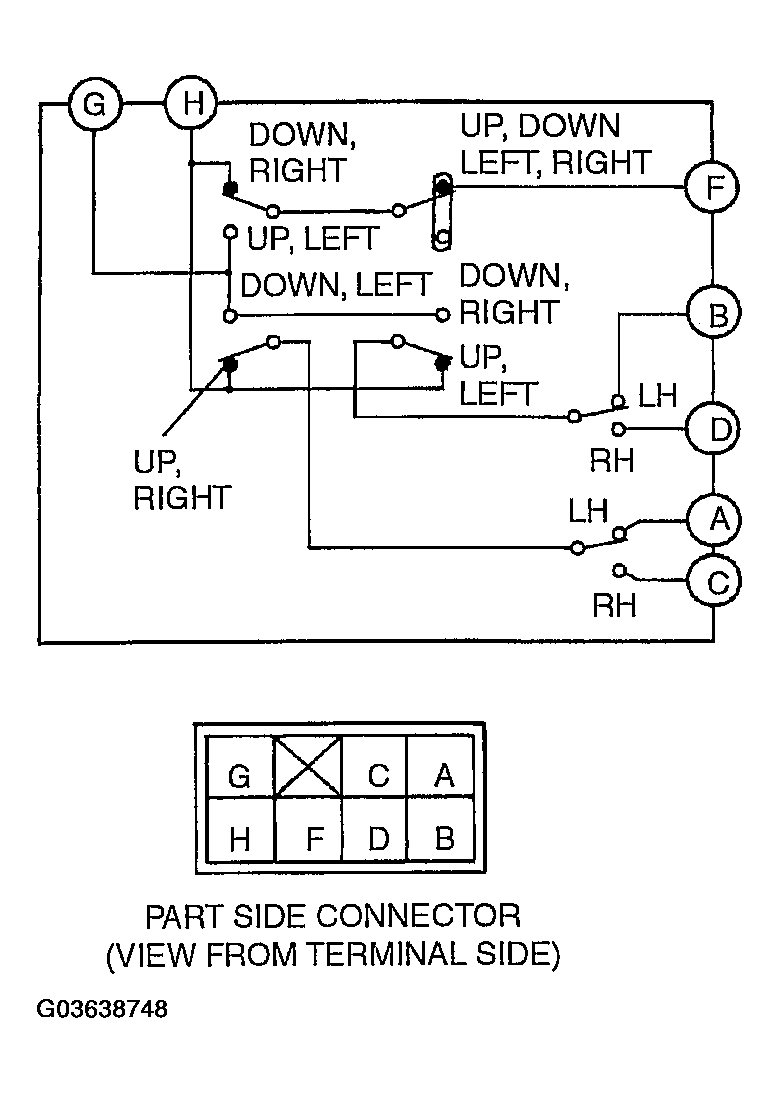

Fig 2: Inspecting Power Outside Mirror Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
