Cam Assembly Note

  1. Temporarily install the cam to the push rod.
    NOTE:
    • The clearance becomes smaller by turning the cam clockwise.

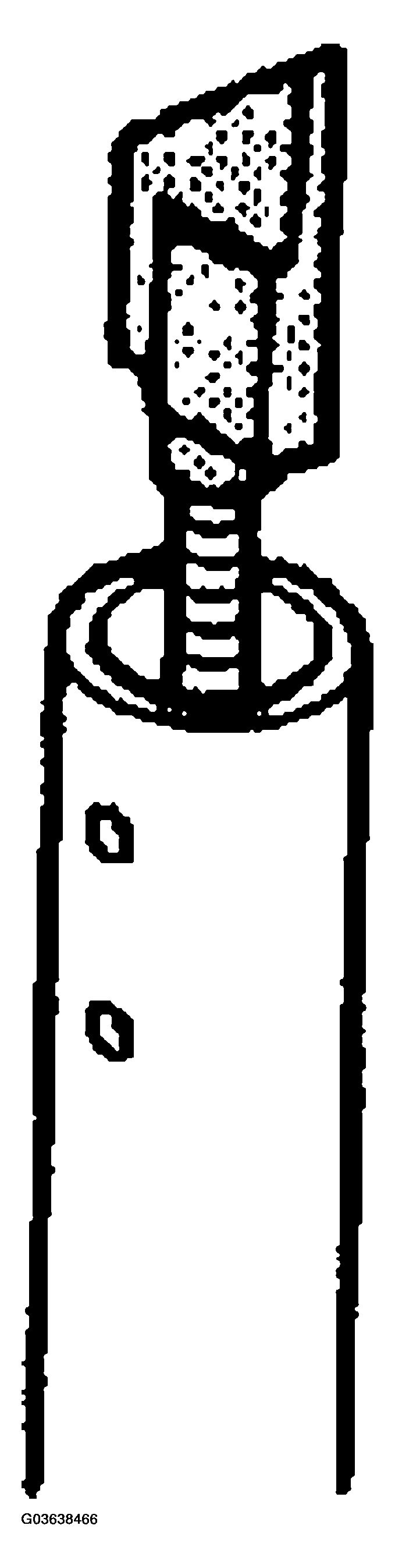

    Fig 1: Installing Cam To Push Rod
    G03638466Courtesy of MAZDA MOTORS CORP.
  2. Adjust the clearance between the guide plate and the guide pin by turning the cam.
    Fig 2: Adjusting Clearance Between Guide Plate & Guide Pin
    G03638467Courtesy of MAZDA MOTORS CORP.
  3. Install the selector lever knob and verify that the clearance is as specified.
    • Repeat from step  2 if necessary.
