Windshield Wiper Motor Connector End View

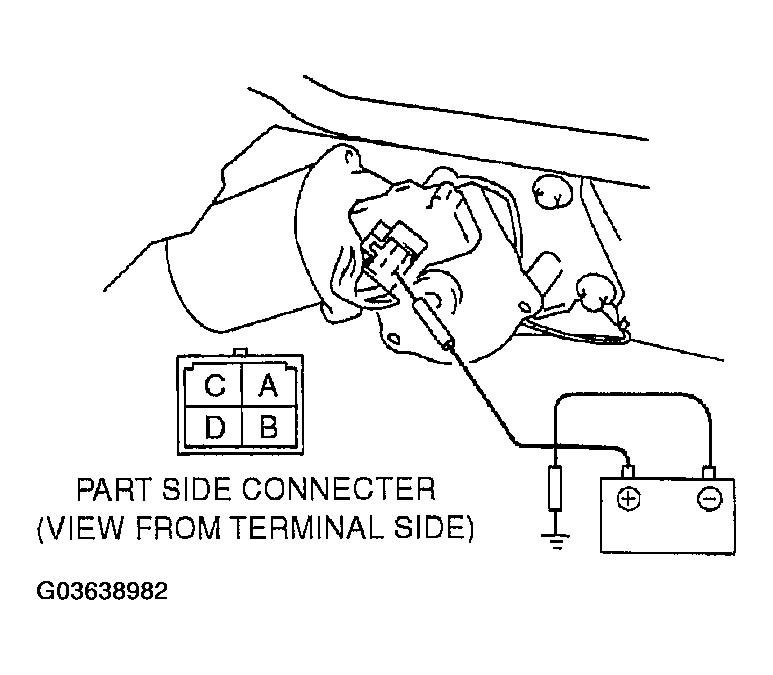

Fig 1: Windshield Wiper Motor Connector End View
G03638982Courtesy of MAZDA MOTORS CORP.

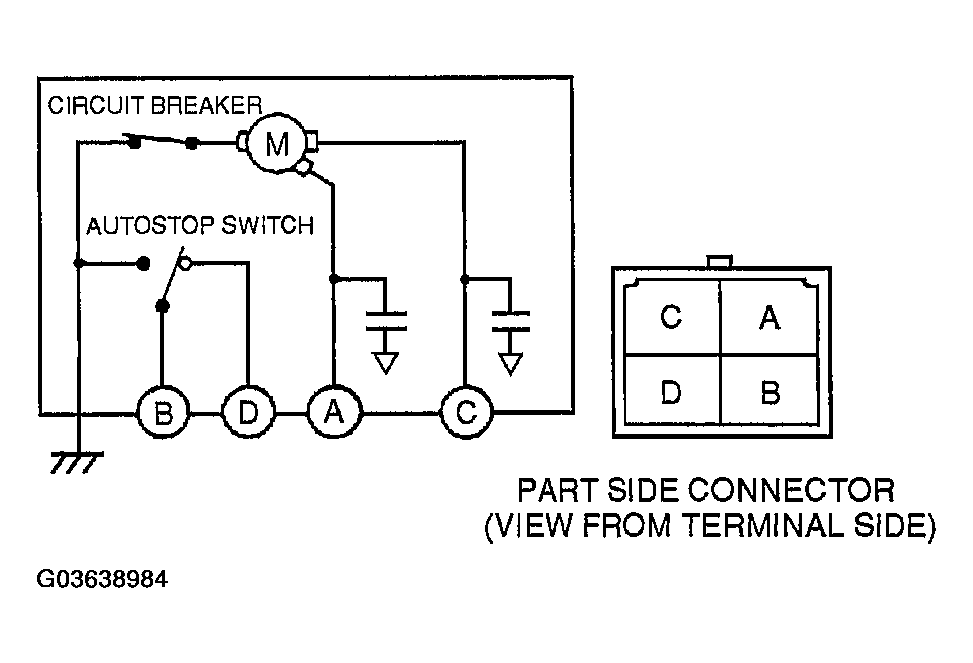

Fig 1: Windshield Wiper Motor Connector End View
G03638984Courtesy of MAZDA MOTORS CORP.
