Brake Pipe Installation Note

  1. When installing the brake pipe, align the marks made before removal with the ABS HU/CM as shown in Fig 1.

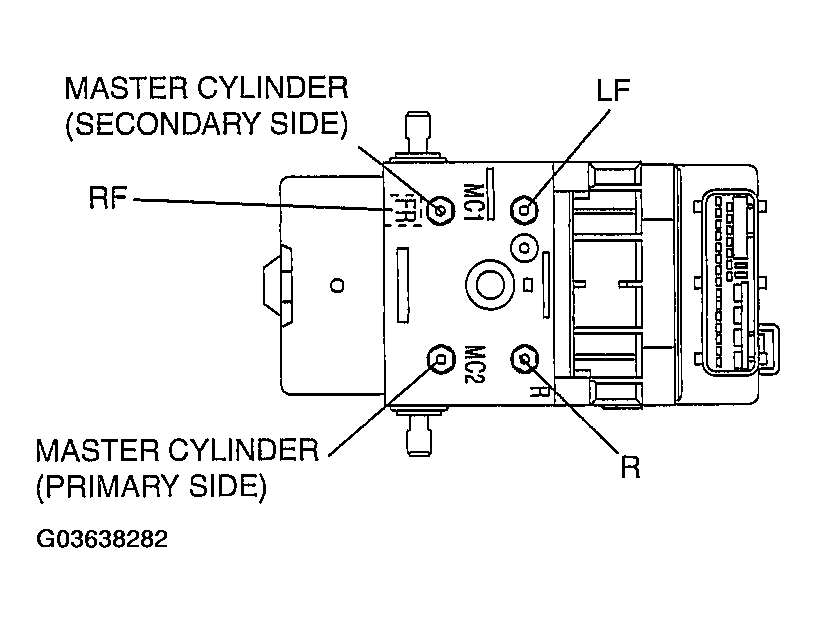

    Fig 1: Identifying Brake Pipe Connecting Positions
    G03638282Courtesy of MAZDA MOTORS CORP.
